Timber Frame Dining Room Table Plan

$27.00

SKU: 42074 Category:

If you are just starting out in timber framing, this dining room table plan may be a good place to begin.  It uses smaller members, so it will be easy to move them around your shop. But with mortise and tenon joints to hone your skills on, and a dramatic wedged tenon to show off in the strut of this dining room table. This would also be a fun weekend project for an experienced timber framer.

  • 36”x 60” table top
  • Four mortise and tenon  joints
  • Two wedged tenon joints
  • 2”x 4”, 4”x 4” and 4“x 6” material
  • Top fastened with 5/16" Offset Z-Clips

When you buy these plans we send you a link to download the PDFs of two plan sets.  The construction set has three dimensional views of the table so you can picture the finished product. We include an exploded 3D view so you can see how the pieces interact. There are dimensioned plan and elevation views. There is also a 6-page dimensioned piece drawing set that shows you every cut you will be making. You can print these from your home printer and get to framing!


This plan is also included in the Master Plan Bundle and the Furniture Plan Bundle.

Heavy Timber Dining Room Table Interactive 3d Image

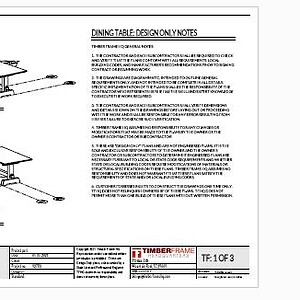

Dining Room Table Plan Overview

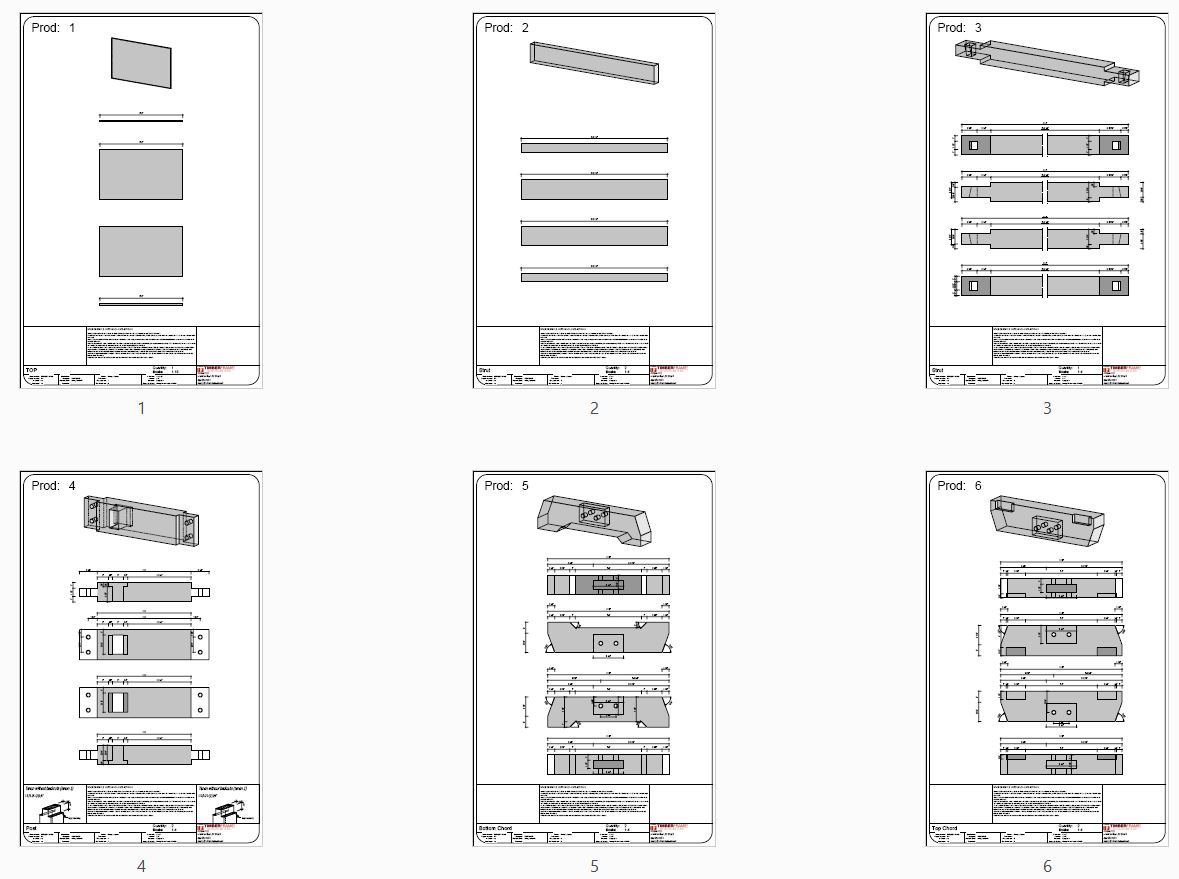

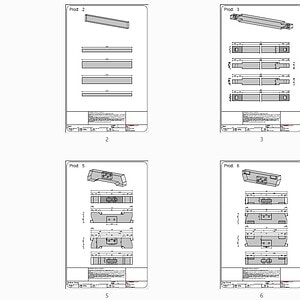

Dining Room Table Plan (42074) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow reproduction or modifications of our designs, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Specifications

Dimensions

  • 3’-0” wide by 5’-0” long table top
  • 1’-10” x 2’-8” base
  • Height to Top of Table 2’-8”

Timbers

  • Top –3’x5’x1”
  • Strut  – 2×4
  • Strut –4×4
  • Chords – 4×6
  • Post –4×6
  • Wedge  –1.5×1.5

Plans

  • 11 pages total
  • Construction Drawings – 3 pages (8.5×11)
  • Detailed Piece Drawings – 6 pages (8.5×11)
  • Materials Lists – 2 pages (8 .5×11)
