Do you have a special spot in your landscape that is crying out for a spectacular pavilion? This 3 Gable Pavilion Plan may be just what you are looking for! The third cross gable centered on the longitudinal roof plane creates a strong focal point while adding a bit of extra space under the roof. The pavilion’s generous sizing makes it suitable for many uses!

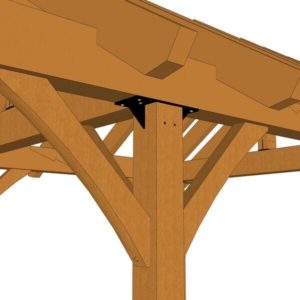

This 3 gable pavilion plan is a post and beam plan. Instead of traditional joinery, it uses Connext connectors and structural screws to join posts, beams, and rafters. The knee braces are simply housed ½” into the posts and secured with screws that are concealed with plugs.
- Just under 515 square feet
- 12’-8” x 36’-8” with a 12’-8” x 4’-0” bump-out
- Ridge height almost 14’-4”
- Top of plates 9’-4”
- Generous 2-foot overhangs
- 8x8 posts
When you purchase this plan you will receive a link to instantly download the pdf files of the plan sets. We give you all the information you need to successfully complete this project! The construction set contains 13 pages with 3D drawings, both exploded and joined, detailed plan, section and elevation drawings that are fully dimensioned, and detailed drawings of complex areas. There is a 40-page piece drawing set that shows you each cut on every timber, with all the dimensions. The included timber list makes it easier to budget for and procure your timbers, and we include a connector list as well. We recommend printing these plans on 11”x17” paper for construction, but you can choose to print them on letter paper for study purposes.
Frequently Asked Questions
Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE.
If that is something that would interest you, fill out the brief questionnaire HERE or click Get Started Today on the main Design Page from above.
As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting. Please allow a few days for our team to respond.
Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.
The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements. Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.
We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire. Armed with that information, we can get our heads into your project before we speak. That way we are best prepared to answer all of your questions.
As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.
Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.
100% Money Back Guarantee for 30-Days
Purchase With Confidence...It's Risk Free!
If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
