20×20 Timber Frame Lean-To Shed Plan

20x20 Foot Timber Frame Lean To Shed

This clear-span 20×20-foot timber frame lean-to-shed structure provides many opportunities to use as an enjoyable dwelling or open-air structure. Locating it on a sloping grade with a porch is just one of the endless scenarios of how this frame can be positioned. This frame would make a great artist’s studio, workshop, or guest cabin. Let your imagination run.

There are 400 square feet of uninterrupted space, thanks to the parallel chord truss. In addition, the 40 square foot full height bump out adds dynamic shape to the facade and extra room to the interior.  The single-plane shed roof soars to over sixteen feet high, creating a big volume and the possibility of a loft down the road. If you orient the roof to capitalize on the sun, it would be a perfect place to mount solar panels.

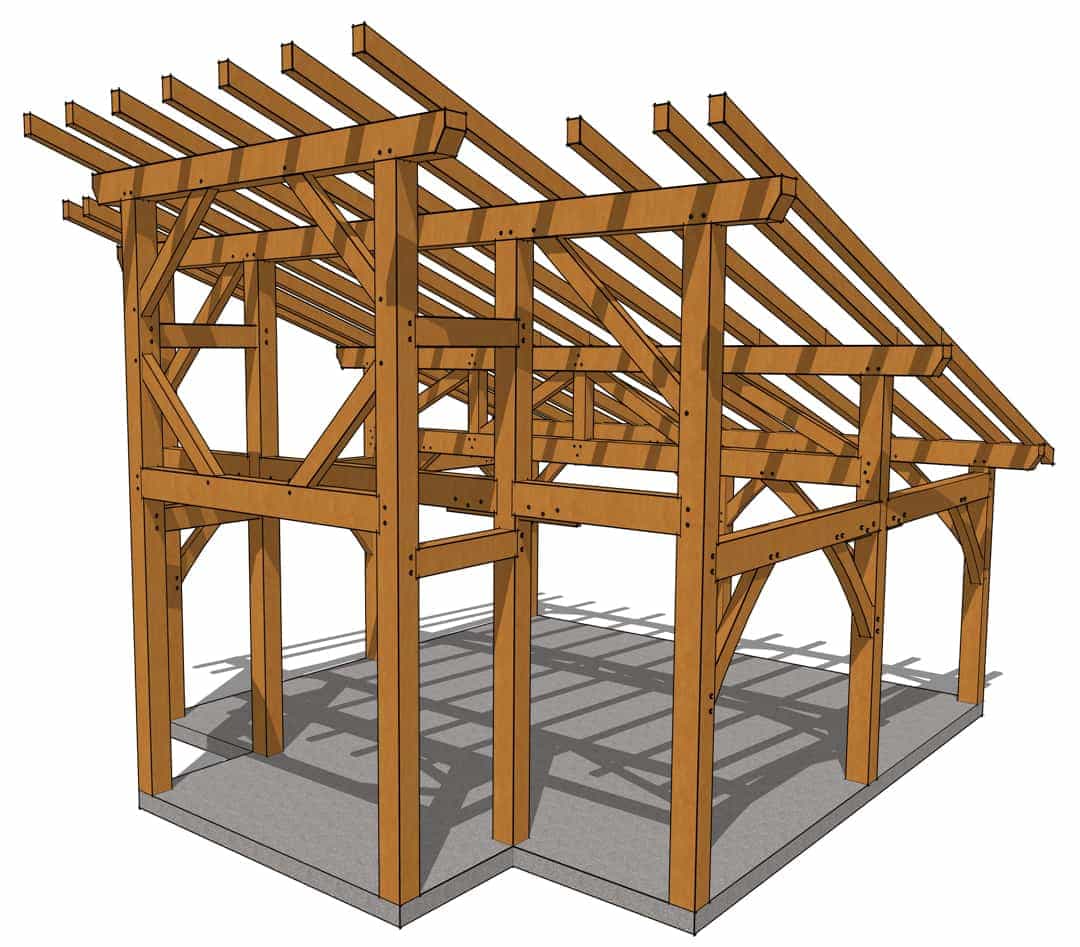

The drawings to build this 20×20 foot timber frame lean-to are made up of two sets. The first is a five-page set formatted to be printed on 24×36 paper, which includes a 3D exploded isometric drawing. There are also fully dimensioned plans, section, and elevation drawings showing each part of the frame. You can easily budget for and purchase materials with the included timber and fastener lists.  The second 33-page drawings show each cut on every timber in the frame, so no guesswork is involved! It is formatted to print on 11×17 paper. Both sets are ready for instant download once you make your purchase.

Check out this plan in our shop: 20×20 Lean-To Plan.

Lean To Shed Plan

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.
