24×36 Timber Frame Barndominium

24x36 Barndominium

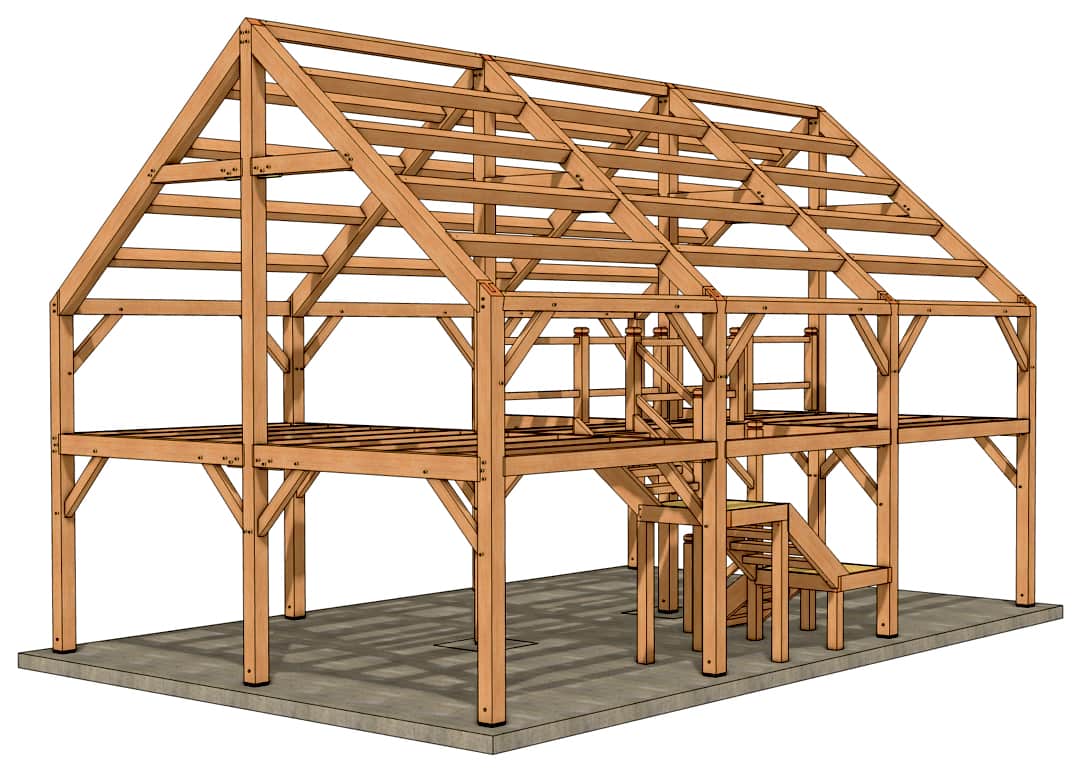

Barndominiums are all the rage right now because they are efficient, rugged, and capture a bit of nostalgia. You’ll understand the appeal when you build this 24x36 timber frame barndominium! It’s got the classic barn shape with high side walls and a generous roof pitch. The second level is floored over two-thirds of the area, leaving some volume ceiling in the first level. The timber frame construction not only adds to the aesthetic appeal but also ensures the durability and longevity of the structure, making it a wise investment.

This frame is designed with no roof overhangs. The intention is for the roof to be constructed of Structural Insulated Panels (SIPs), which will provide the desired overhang. The walls are usually constructed of SIPs or 2x6 framing. The use of SIPs not only ensures a sturdy and well-insulated structure but also enhances the energy efficiency of the barndominium, reducing its environmental impact and running costs.

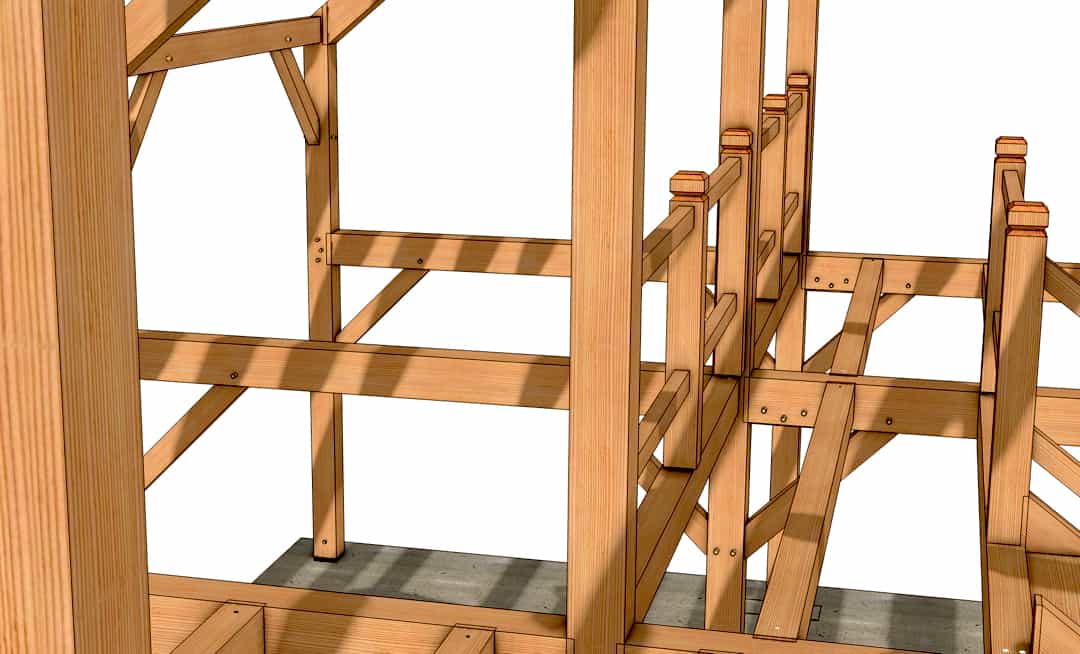

Our barndominium design is not just a structure, it's a canvas for your imagination. The architectural plan set presents one possible arrangement and use of the space as a one-bedroom open-concept retreat. The living, foyer, and kitchen are all open to each other and the U-shaped stairs, fostering a sense of openness. The main level features a full bath and laundry, while the second floor boasts an en-suite master bath and loft area.

For more information about this plan, please visit its shop page at 24×36 Timber Frame Barndominium Plan. This plan is also included in our Plan Bundle, a comprehensive package that includes a variety of, each with its unique features and benefits, offering great value for money.

Plan Options:

  1. Purchase Plan - Our plans provides detailed, easy-to-follow digital blueprints, perfect for DIY enthusiasts aiming to build their own timber frame structure.
  2. Modify This Plan -  Like this plan but need it change it a little, what about engineered?  Don't worry we got your back when it comes any and all details.
  3. Get a quote for a Ready-To-Raise Timber Frame Kit - Like this plan?  Use our online calculator to get a quote for a complete kit.  Need it modified a little, we can do that too.

Dimensions

  • 24’ wide by 36’ long outside of post to outside of post
  • No  overhangs on any  sides
  • Height to Top of Post 13’-10”
  • Height to Peak of Roof 23’-10”” with 10:12  Roof Pitch

Design

  • 1 ensuite master bedroom, 2 full bathrooms
  •  Open concept living area
  • Laundry within ground floor bath
  • 925 square feet 1st floor, 613 square feet 2nd floor,1,538 square feet  total
24x36 Timber Frame Barndominium (48853) Interactive 3D Model

We understand that every  space is unique, so we offer extensive customization options for our plans. Choose from various sizes, roof styles, and finishes to match your style and needs. Our design team is dedicated to helping you create the perfect home that reflects your vision.

Here's How You Can Reach Us:
  • Phone: Speak directly with our friendly experts by calling 888-552-9379. We're available 9-5, M-F to answer your questions and provide personalized advice.
  • Email: Prefer to write to us? Send your inquiries, ideas, or feedback to projects@timberframehq.com. We strive to respond to all emails within one business day.
  • Online Contact Form: Fill out the contact form below. It's a quick and easy way to get in touch, and we'll get back to you promptly.
Get an Instant Quote

What's Included

Design and Engineering

Timber Frame Design and Engineering Services

We take immense pride in our team of exceptionally skilled timber frame designers. Each member is not only equipped with the finest tools but also possesses a profound understanding of how different materials intricately come together to realize your vision. This deep expertise in both design and material synergy is crucial in crafting the ideal timber frame structure tailored just for you.

Our commitment to excellence extends to our engineering team, specialists in timber frame structures, many of whom hold doctorates in their field. Sharing your passion for timber framing, our engineers work closely with you, ensuring that every aspect of the frame's design is customized to suit your specific location. This collaborative process guarantees that you receive all necessary documentation for permits, including detailed engineered reaction diagrams, ensuring your construction proceeds smoothly and stays on schedule.

The culmination of this meticulous process is a comprehensive set of construction drawings. These detailed plans not only provide a clear guide for your kit's assembly but also include a complete list of timbers and fasteners, serving as an invaluable reference throughout the installation of your frame. Our goal is to ensure that every step, from initial design to final construction, is seamless, transparent, and perfectly aligned with your project's needs.

Timbers, Joinery and Connections

Timber Frame Joinery and Connections Offered

After we've collaboratively chosen the ideal wood type for your project, we proceed to source the highest quality timber through our network of trusted mills. Ensuring that every piece meets our exacting standards, we then transport the timber to one of our cutting facilities. There, the joinery is meticulously crafted using CNC machines. Every joint, drilling, mortise, and tenon is cut with precision, adhering to tight tolerances for impeccable quality and fit.

Following the cutting process, all timbers are systematically labeled according to the production numbers assigned during the creation of your model and plans. This meticulous process ensures that every component of your timber frame is prepared with the utmost attention to detail, ready for the next phase of your project.

Included with your package are all the pegs, fasteners, screws, and connectors you need to put your ready-to-raise frame together. You will also get a detailed list for you to refer to while raising your frame.

Shipping and Delivery

Ready To Raise™ Timber Frame Kit Delivery

We carefully package and securely transport your timber frame and all necessary hardware directly to your location. In sync with you, we'll coordinate the delivery schedule, ensuring that we agree on an approximate time on the designated date. To facilitate a smooth and safe unloading process, it's important to have equipment on hand capable of lifting up to 5,000 lbs. Once everything is delivered and in place, the exciting phase of bringing your project to life begins.

Project Support

Timber Frame Project Manager

At Timber Frame HQ, we embrace the philosophy of 'One Person, One Project.' This approach ensures that each client is paired with a dedicated Project Manager who will be your point of contact throughout the entire project. We believe in offering personalized, consistent support to make your journey with us as smooth and fulfilling as possible.

Our commitment extends beyond just providing exceptional timber frames. As your construction resource, we'll be by your side for the duration of your project, ready to offer expert advice, support, and answers to all your queries. Our goal is to make the process of raising your timber frame not just successful, but also a deeply rewarding experience.

We invite you to visit our '
About Us' page to learn more about our values, our team, and how we can bring your timber framing vision to life with a touch of personal care and professional excellence.

Enclosure System

Timber Frame Enclosure System

Our team can provide you with a complete Ready To Raise™ Enclosure System for your project, whether just for your roof or a complete enclosure.  We will work with you to sort out the best options and product, then deliver it with all the window and door openings and the electrical chase cut-out ready for installation.   You can read more about your options in our in-depth article "Timber Frame Enclosure Systems".
