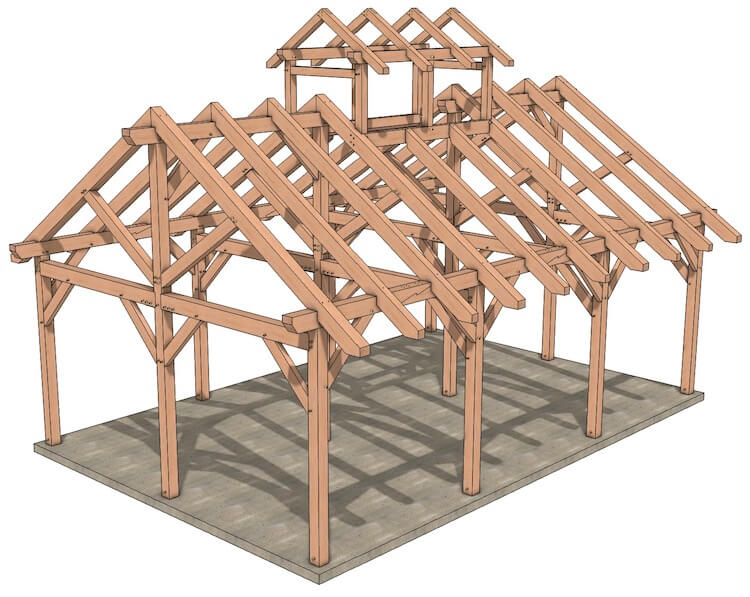

Sugar shacks have traditionally been found in Eastern Canada and Northern New England, where maple syrup is made by boiling down the sugar maple sap. The distinctive cupola was actually functional to allow steam to escape. Now you can create your own piece of history by cutting and raising this 24x36 post and beam sugar shack! You can use it for making your own maple syrup, or create a workshop, guest house or adorable tiny home!
The king post trusses and traditional joinery give this 24x36 sugar shack a lot of charm. There are pegged mortise and tenon joints along with scarf and spline joints. You can add windows or small doors to the cupola to add plenty of ventilation and light.
The dimensions from outside of the posts are 34’ - 1 ¾” x 22’ - 11 3/4”, which gives you 784 square feet under roof. The overhangs are 1’-6”on the gable ends, 2’-6”on the rafter ends.
The 8:12 pitch roof starting out from over 12’ plates gives you plenty of ceiling height - the top of the cupola stands at 25’-0 7/16” a.f.f.!
You will receive links to download the plan in pdf format as soon as you make your purchase.. The construction set contains 11 pages chock full of all the information you need. There are 3-D drawings so you can envision the finished product. We even include an exploded 3-D so you can see how all the pieces work together. There are several sections with plenty of notes, and detail drawings explaining the finer points. The piece drawing set has 30 pages showing every cut on each timber, fully dimensioned. And we provide you with timber and connector lists to make it easier to purchase your materials.
Learn more about this plan on its Shop Page HERE.
100% Money Back Guarantee for 30-Days
Purchase With Confidence...It's Risk Free!
If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
Plan Licensing Agreement:
PLAN PURCHASES AND GRANT OF LICENSE
This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).
Grant of License.
Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).
This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.
Use of License.
Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.
Ownership.
All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.
Fees.
The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).
Termination of License
This Agreement and the License granted hereunder will terminate immediately upon:
(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.
(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.
Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.
No Derivative Works. No Reproduction. No Modification.
You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.
Reservation of Rights.
Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
DISCLAIMER OF WARRANTIES.
EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.
Does this one come as a kit or just the blueprints and how much if it is a kit
It can come in kit form as well. Head to timberframehq.com/kits to learn for and when you are ready fill out the brief questionnaire so we can learn enough to give you an estimate for the complete kit.
While I love the style of the timber frame sugar house, just a thought – this specific design might be slightly awkward for actual sugaring. The middle posts on the second and third bents stand right where you would probably want to have your evaporator and smoke stack positioned to allow the steam to escape straight up through the cupola.
Thank you for that observation. This is not really designed to be an operating sugar shack, but a fun pavilion with a nod to that history.
How much would the complete kit be, with shipping to a farm at Fort Assiniboine, AB, please ?
Or shipping to Edmonton ?
And where would I get the old style windows & doors, please ?
I deeply appreciate your help,
Thank you,
Tilman
The best way to get an accurate price for the kit would be to visit our Kit Page and fill out this questionnaire
Is there a version of this that is a little smaller…I’m looking for around 20 x 30…?
We could help you with that on a custom basis, you can find more information here
Do your plans call for dimensional or rough cut lumber?
Our plans are designed at S4S planed/nominal sizes (Ex. 8×8’s are actually 7 1/2″ x 7 1/2″). We designed this frame so people could go to a typical lumber yard and order the material, all of which would come nominally. You can use the plan for both square rule or edge rule depending on your needs.
