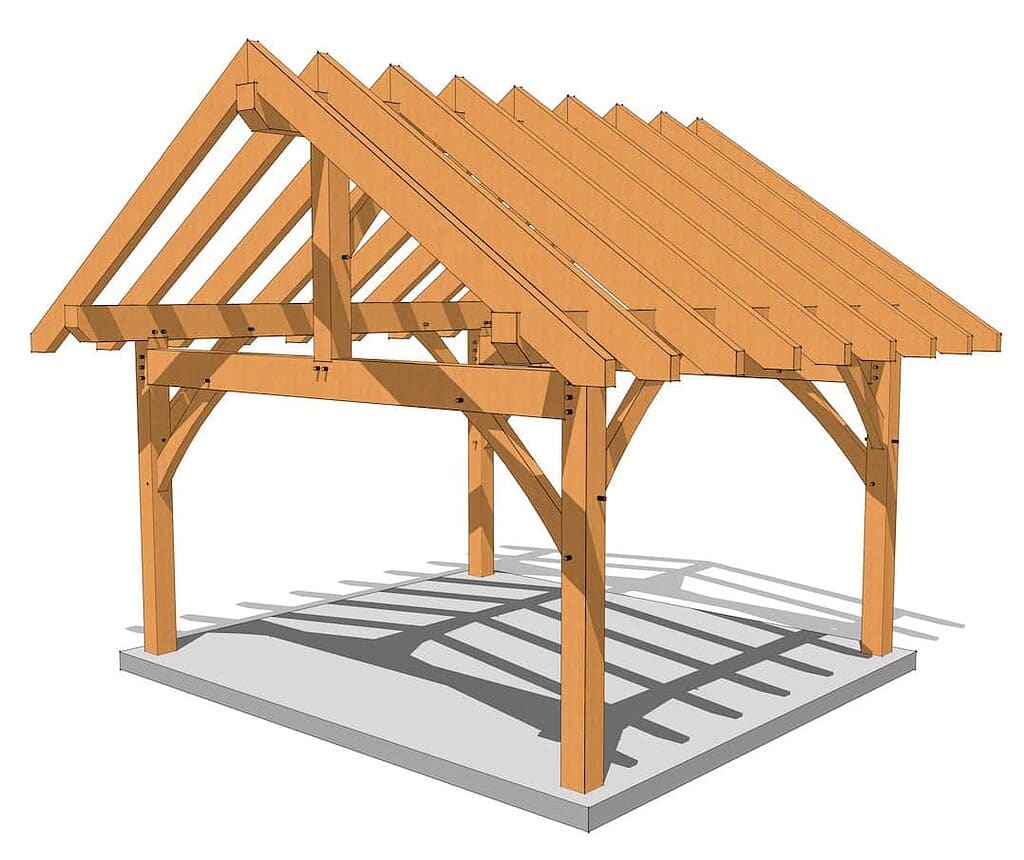

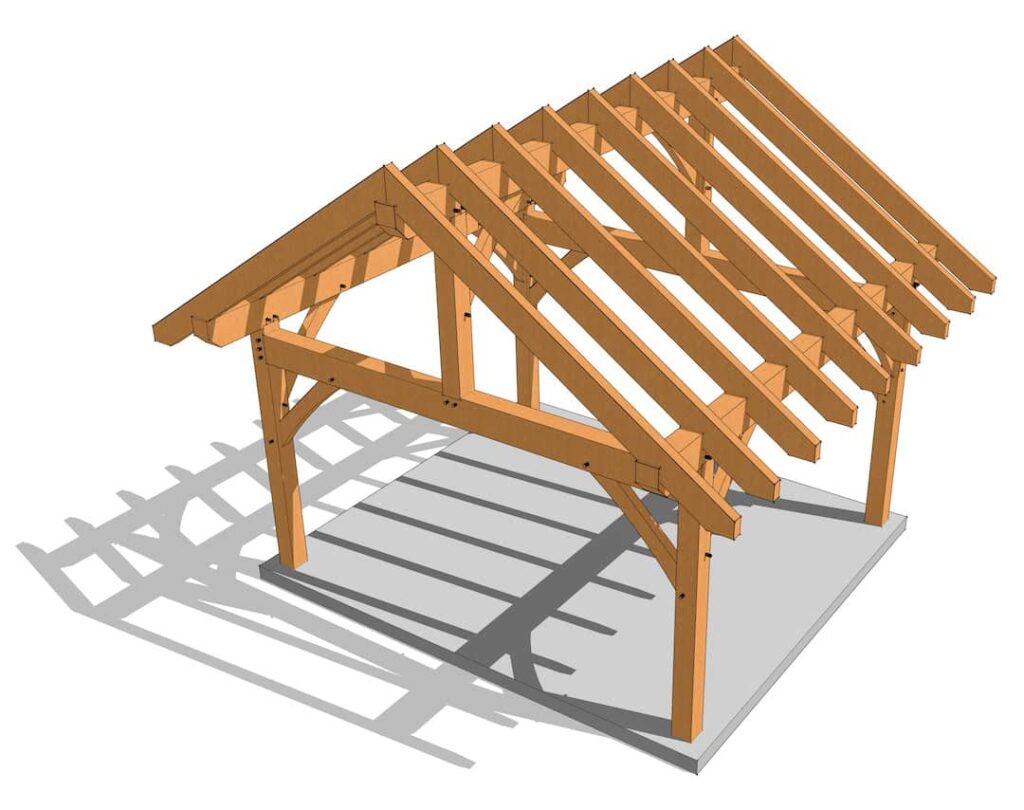

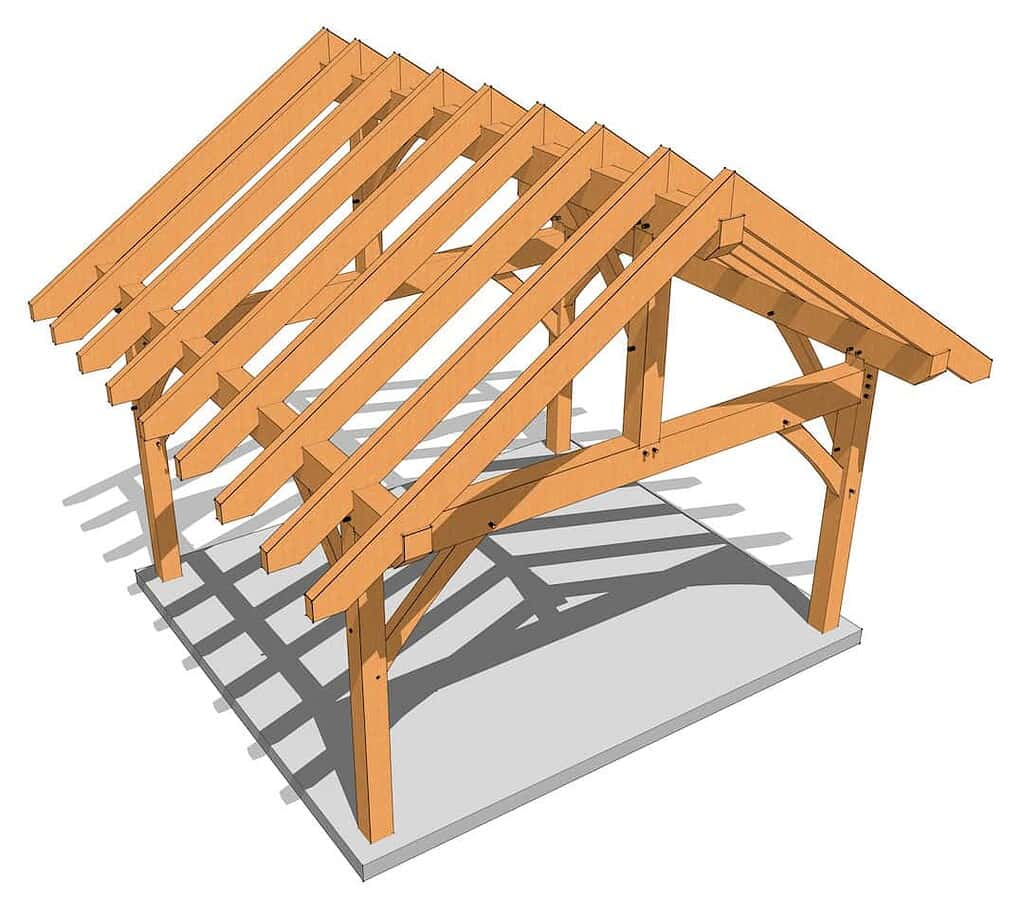

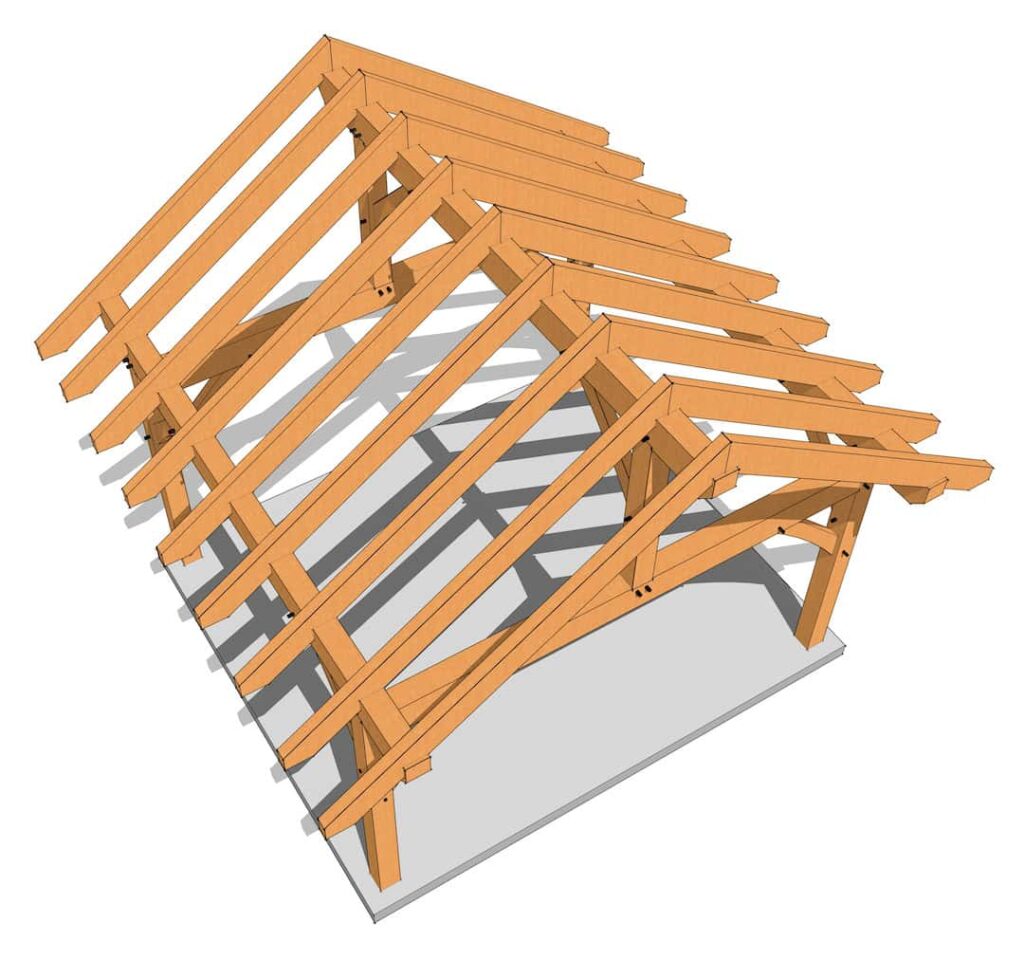

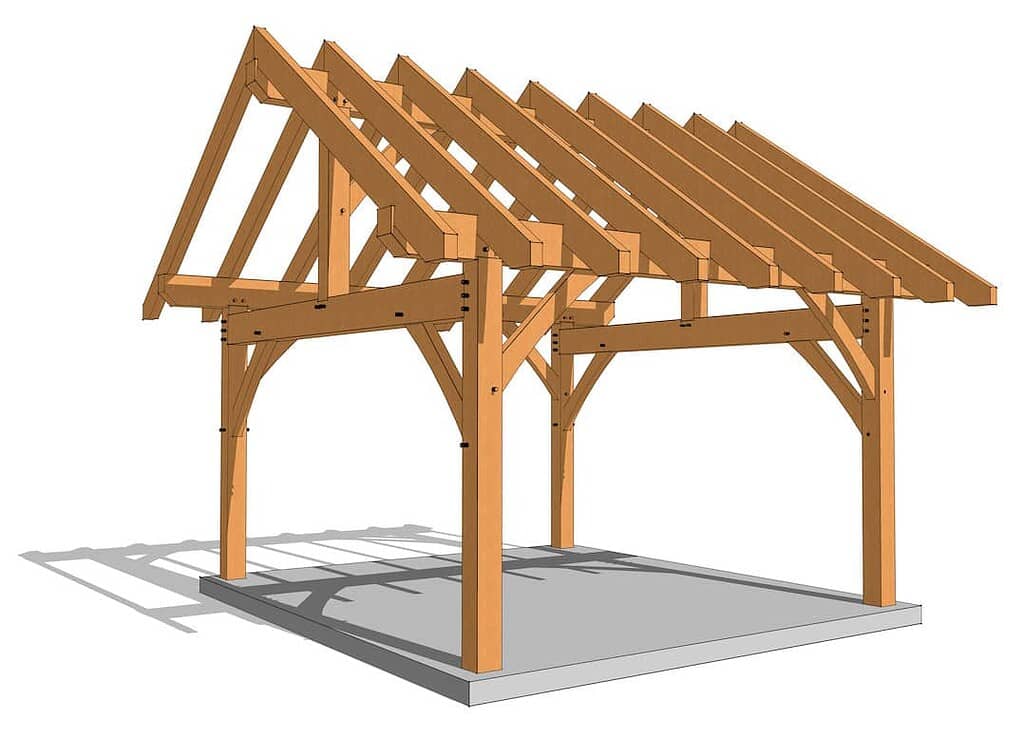

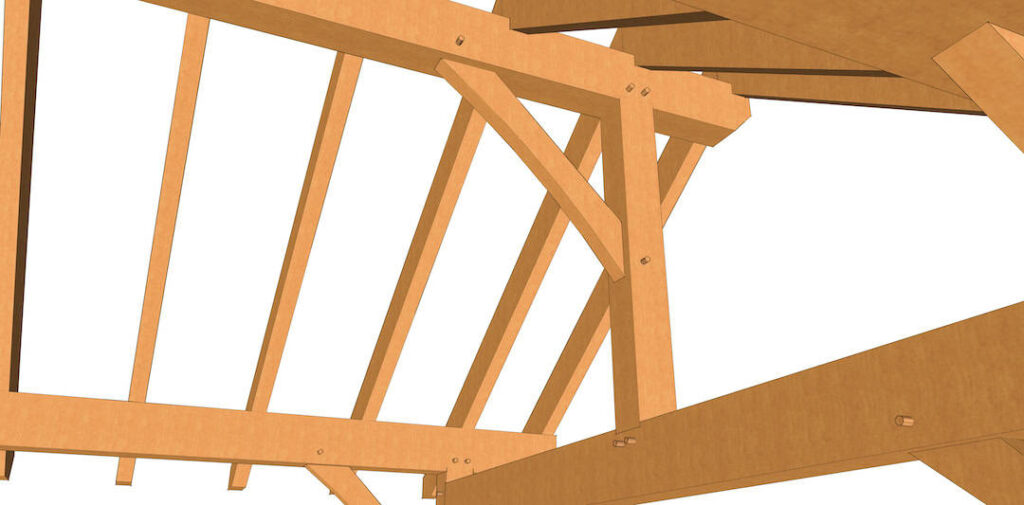

Expanding on the design of our popular DIY 16x12 frame, the 16x14 Timber Frame offers even more flexibility and space. Whether you need a gracious front entry, a patio canopy, a workshop, or a shed, this design provides a perfect balance of simplicity and function.
Frame Highlights:
- Footprint: 16' wide x 14' deep (224 sq ft)
- Roof Pitch:
- Default 8:12 pitch for an attractive, easy-to-build roofline
- Additional pitch dimensions included (3:12 to 12:12) so you can choose the look and volume that best suits your project
- Beginner-Friendly: Designed for first-time timber framers or those looking for a straightforward, satisfying build
- Flexible Foundation Options:
- Build directly on a concrete slab
- Or add a timber flooring system to support an enclosed structure
Endless Possibilities:
- Front Entry Pavilion
- Patio or Deck Canopy
- Storage Shed
- Potting Shed or Workshop
- Craft Studio or Backyard Retreat
Leave the frame open for a light, airy look or enclose it with walls, windows, and doors to create a cozy and functional outbuilding.Whether you’re adding curb appeal, creating outdoor living space, or building your first timber frame structure, the 16x14 Timber Frame Pavilion or Shed is Ready-to-Raise™ and ready to bring your project to life.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
I really like this plan. What is the minimum size for the posts?
Mike, The posts in the plans are 8×8’s.
Brice
do you have a 14′ wide by 16′ deep version of this plan? I want the roof peek opening at 14′ wide and the sloping roof on the 16′ deep side. looks like this plan is the opposite of what I want.
Also the 14 x 16 dimensions are the post locations not the overhang measurement correct?
How tall is the opening all the way around. Going to use this as a pool pavilion and need to walk into this structure from all sides
We currently do not have that plan available, we do have a 14wx18d deep plan that we can modify to meet your needs. The 14×16 is from outside of post to outside of post with a 2′ overhang all the way around. The height of the rafter tails in the plans is 8’6 and to the bottom of the tie beam is 7’6 but you can easily add some height by lengthening the posts. Let us know how we can help.
Do you have a plan for this using 6×6’s ?
No, due to the nature of the joinery and how much wood is taken out of the timbers it is not possible to make this frame as designed strong enough to use 6×6’s. We are working on a plan that uses the T-Rex Connectors that will be made from 6x material. However, some of the beams will need to still be larger that 6×6’s.
I am also interested in the 14 wide x 16 long plan modified. What would the cost of this be with the modifications ? I am looking to only have 4 main posts. What is the cost for your plan of 14w x 18d and would that plan sit on 4 main posts? What is the roof pitch? Can the roof pitch be modified if needed? Thanks for your time in advance.
The 14×18 plan is $67 and can be found at https://timberframehq.com/shop/14×18-king-post/ it has a 8/12 roof pitch and yes it can be modified for a small fee.
On the plans does it show all the dimensions for cutting the joinery detail ?
Yes each similar piece has been pulled out and given dimensions to simplify the layout and cutting of the joinery.
So just to clarify, on this 14×16 plan, the dimensions are to the outside of the main posts, not the roof overhang, correct ? So the roof-covered area would actually be larger ? And the 16′ dimension is along the ridge beam direction, correct ? Thank you.
Ross, the dimensions are 14×16 from outside of post to outside of post. However, it is the 14′ dimension along the ridge and 19′ across the gable end.
What is the height fro ground to peak of roof?
It is 14′-9 1/16″ to the top of the ridge; 15′-8 1/2″ to the peak of the rafters.
Hi
I’m about to order these 14×16 plans and had a couple questions.
This 14×16 frame fits my needs to a Tee, almost. Like most comments I have requests.
Can this structure handle the snow load for my area of NY State, 12446?
This frame will be a sunken living room addition to a log home and will attach on the gable end. You have a 12×16 design showing that flush attachment. Ideally I would like to shift the wall Girts to have a 4 ft overhang for summer sun protection, and flush on the other end. Will 45’s be needed for that cantilevered overhang?
What is the height to the bottom of the gable girt in the un altered plan? I couldn’t tell on an IPad.
Thanks for your help.
Cheers
Shaun, any alterations or engineering would have to go through our custom design department. It’s 8”-7 3/8″ to the TOP of the gable-end girt, which is an 8×10 so 9 1/2″ tall.
