Timber Frame Swing Set Plan

This simple but fun timber frame swing set would be a great beginner’s project. Your kids will love playing with whatever you can dream up to hang from the cantilevered ends– a tire swing, climbing rope, or you name it. The splayed legs of the main frame and the attractive knee braces supporting the ends ensure a sturdy base for hours of fun.

This timber frame plan package includes both dimensioned blueprints and detail drawings. It also has a materials list to purchase and cut the members you’ll need to complete your framing structure and tips on suggested assemblies. This package is a do-it-yourselfer’s dream!

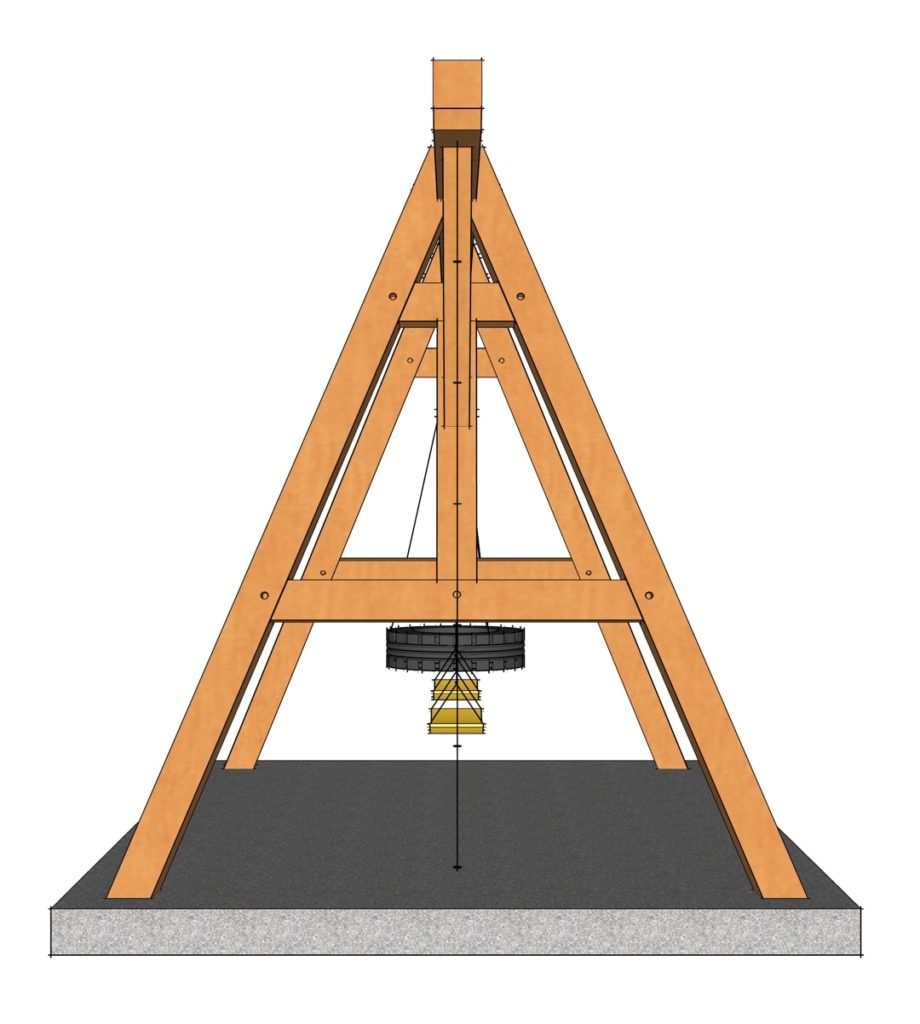

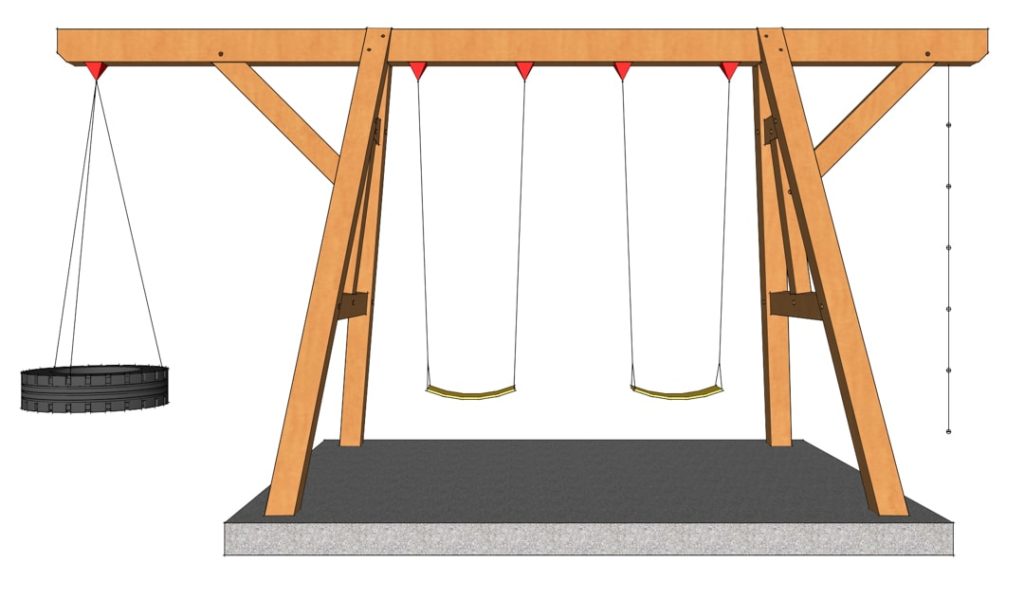

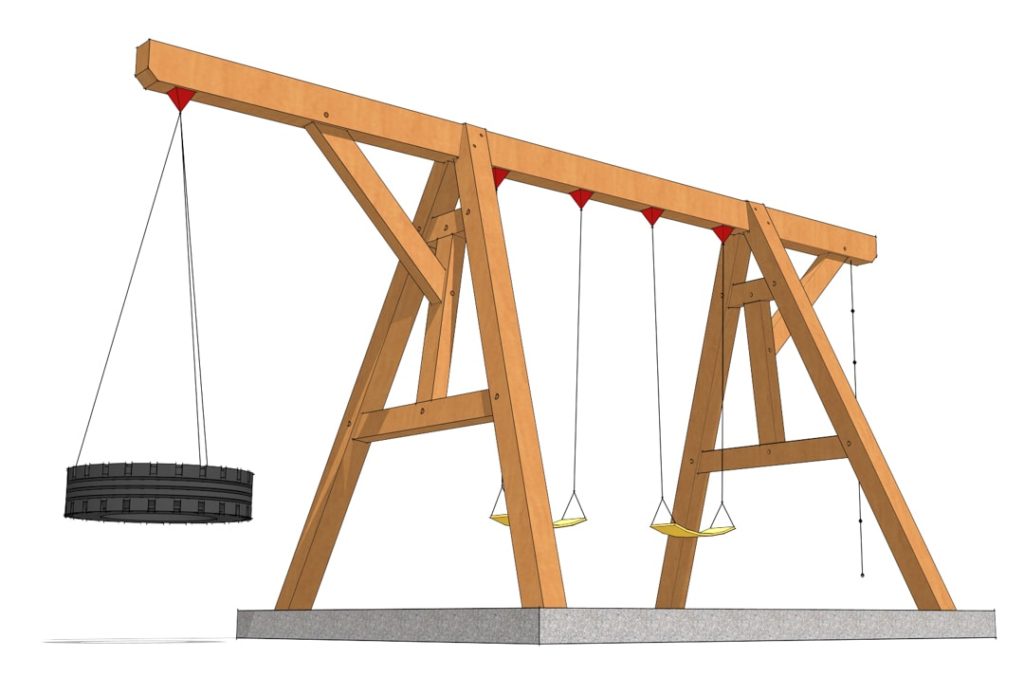

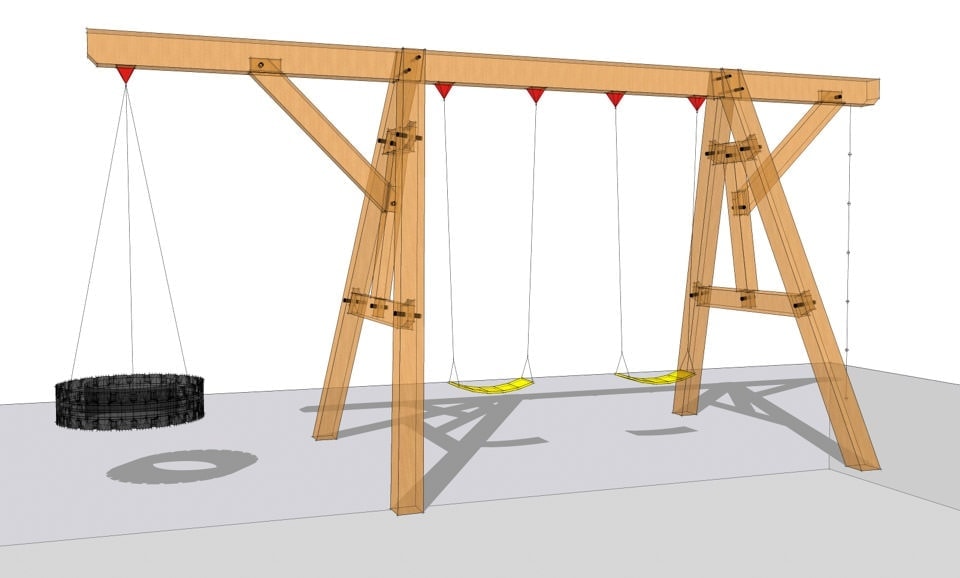

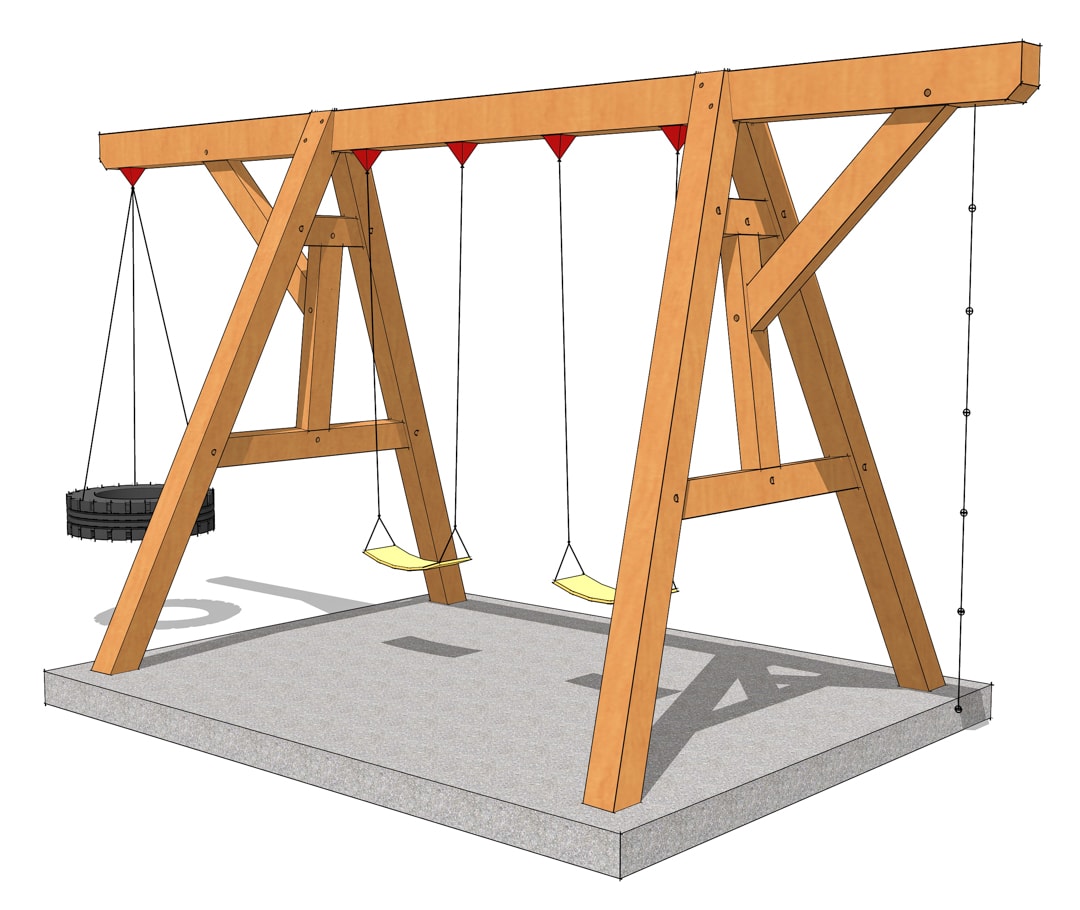

The drawings include renderings, timber schedule, plan, elevation and sectional drawings, and all the piece and joinery details you will need to build this small timber frame swing set. Formatted in an instantly downloadable PDF designed for 8 ½” x 11’ paper that contains 16 pages.

Buy This Plan

This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.

Buy Plans $27

View Our Interactive 3d Model

Wooden Swing Set Plan Interactive 3d Model

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
