24×36 Timber Frame Barndominium Plan


SKU: 48853 Categories: ,

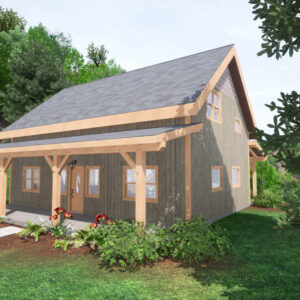

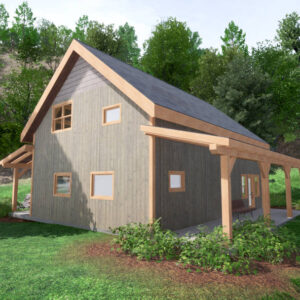

Barndominiums are a popular choice today, not just for their rugged charm and nostalgic appeal, but also for their practicality. This 24x36 timber frame barndominium, with its classic barn shape, high side walls, and generous roof pitch, is a testament to that. The second level, floored over two-thirds of the area, provides ample space for various uses, while the first level offers a volume ceiling for an open and airy feel.

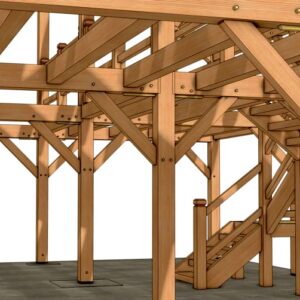

This frame is intentionally designed without roof overhangs. The idea is to use Structural Insulated Panels (SIPs) for the roof construction, which will provide the desired overhang. SIPs are a modern construction material that offers superior insulation, energy efficiency, and structural strength. The walls of this barndominium are also usually constructed of SIPs or 2x6 framing, ensuring a well-insulated and sturdy structure. The roof framing is a sturdy rafter and purlin system.

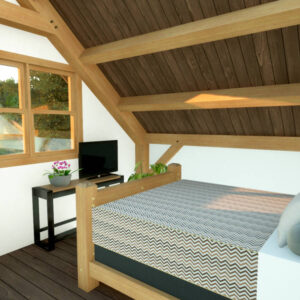

This barndominium design, presented in an architectural plan set, offers a versatile space that can be adapted to various needs. The suggested arrangement showcases a one-bedroom open-concept retreat, with the living, foyer, and kitchen all open to each other and the U-shaped stairs. The main level features a full bath and laundry, while the second floor includes an en-suite master bath and loft area.

Upon purchasing this plan, you will promptly receive an email with links to the comprehensive PDF plan sets. The framing construction set, spanning 12 pages, includes detailed 2D and 3D drawings, post, loft and roof plans, sections and elevations, and a wealth of detail drawings. The 28-page piece drawing set provides a thorough understanding of the timber cuts. Additionally, we offer a 4-page architectural set showcasing room layouts, and connector and timber lists to guide your material purchases.

For more detailed information about this plan, including its features and benefits, please visit its shop page at 24×36 Timber Frame Barndominium Plan. This plan is also included in our Plan Bundle, which offers additional value and options for your construction needs. Don't miss out on this opportunity to build your dream barndominium!

24x36 Timber Frame Barndominium (48853) Interactive 3D Model
24x36 Timber Frame Barndominium (48853) - Plan Overview
24x36 Timber Frame Barndominium (48853) - Architectural Overview
24x36 Timber Frame Barndominium (48853) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.

Timber Kit




  • 24’ wide by 36’ long outside of post to outside of post
  • No  overhangs on any  sides (intended to be fashioned from SIP roofing)
  • Height to Top of Post 13’-10”
  • Height to Peak of Roof 23’-10”” with 10:12  Roof Pitch


  • 1 ensuite master bedroom, 2 full bathrooms
  • Open concept living area
  • Laundry within ground floor bath
  • 925 square feet 1st floor, 613 square feet 2nd floor, 1538 square feet  total


  • Posts –8×8
  • Collar Ties – 8×8
  • Ridge –8×12
  • Rafters – 8×10
  • Joists, purlins – 6×8
  • Tie Beams – 8×10
  • Braces – 4×6
  • Total Board Feet – 5924.5


  • 46 pages total
  • Construction Drawings – 12 pages (11×17)
  • Detailed Piece Drawings – 28 pages (11×17)
  • Architectural Drawings – 4 pages  (11×17)
  • Materials Lists – 2 pages (8 1/2×11)
