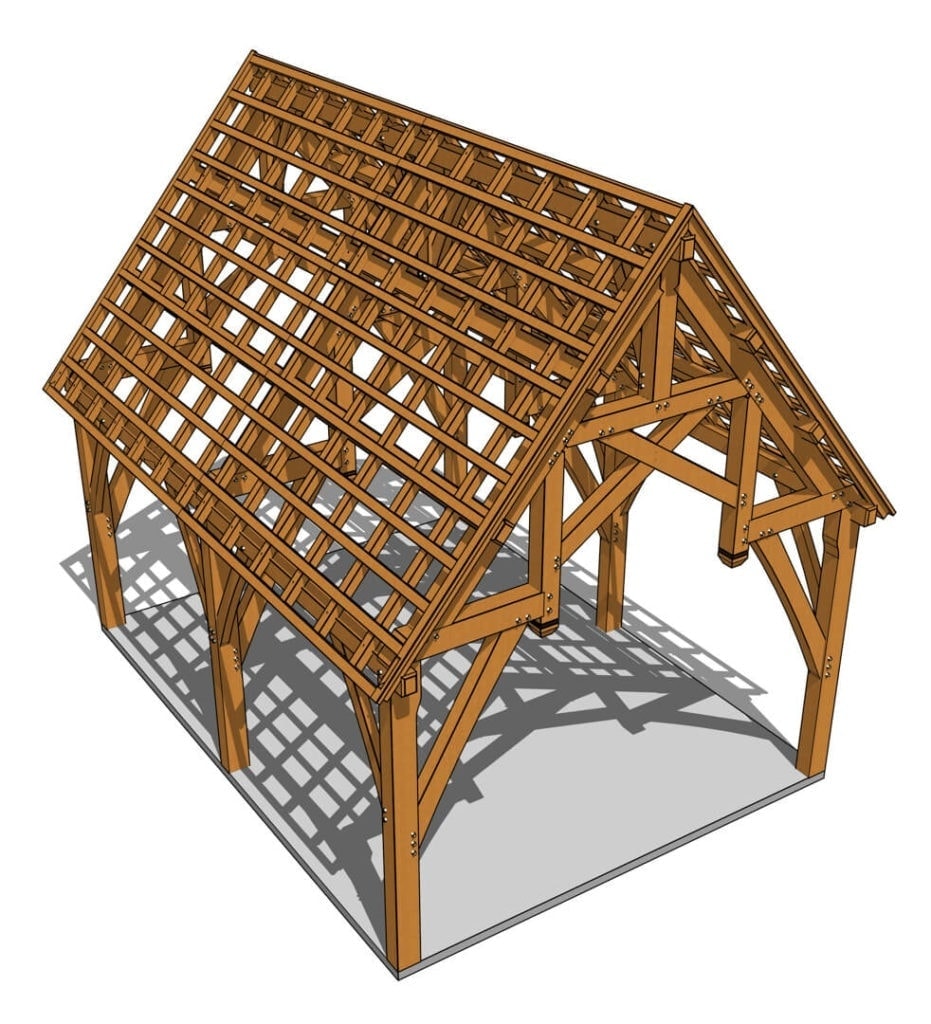

For timber framers ready to take their skills to the next level, the 18x24 Hammer Beam Pavilion offers a rewarding and visually stunning project. Featuring elaborate hammer beam trusses with X-bracing, elongated hammer braces, and signature gunstock posts, this frame makes a bold statement in any setting.
Whether you envision a great room addition, a freestanding getaway cottage, or an outdoor entertaining space, this pavilion delivers timeless character and modern functionality.
Frame Highlights:
- Footprint: 18' x 24' (432 sq ft under roof)
- Ceiling Height:
- Wall girts at 11'
- Ridge soaring to 22'
- Roof Pitch: Steep 50 degrees (12:14 5/16 pitch) for dramatic vertical volume
- Architectural Details:

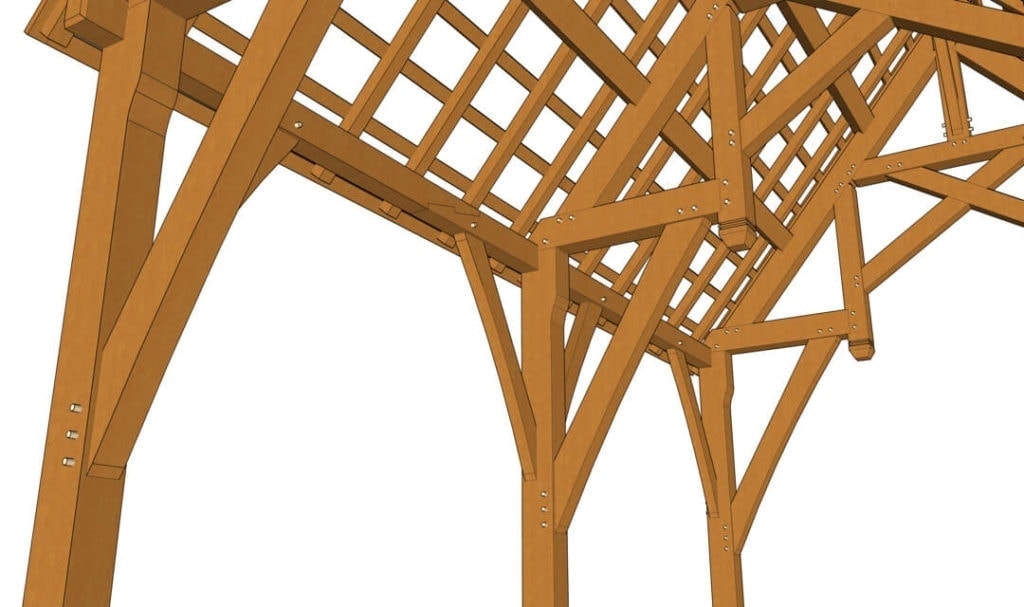

- Embellished hammer beam trusses with X-bracing and elongated braces
- Distinctive gunstock posts flare at the top, adding both strength and visual flair
- Principal rafters and purlins create a rhythmic, elegant roof system
Ideal Uses:
- Great Room Addition
- Freestanding Pavilion or Cottage
- Luxury Outdoor Entertaining Space
- Studio or Event Space
This design offers both an opportunity to showcase fine timber framing skills and a flexible layout to suit a variety of uses.
If you’re ready to create an awe-inspiring structure and display the best of timber frame artistry, the 18x24 Hammer Beam Pavilion is Ready-to-Raise™ and ready to elevate your property.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
