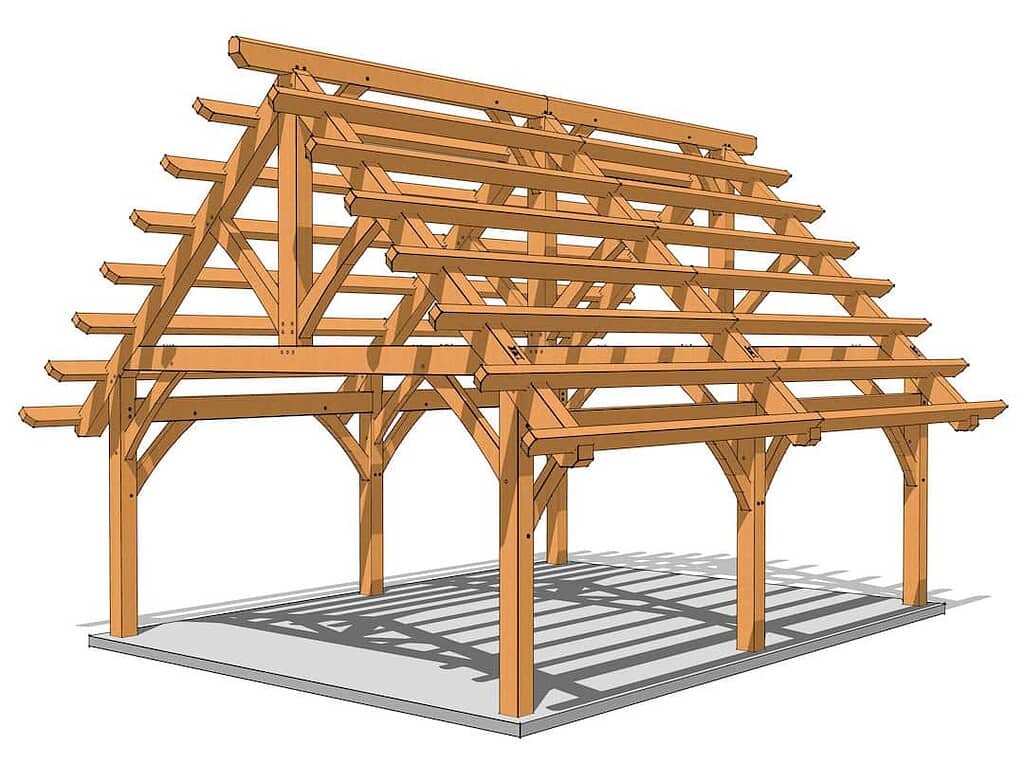

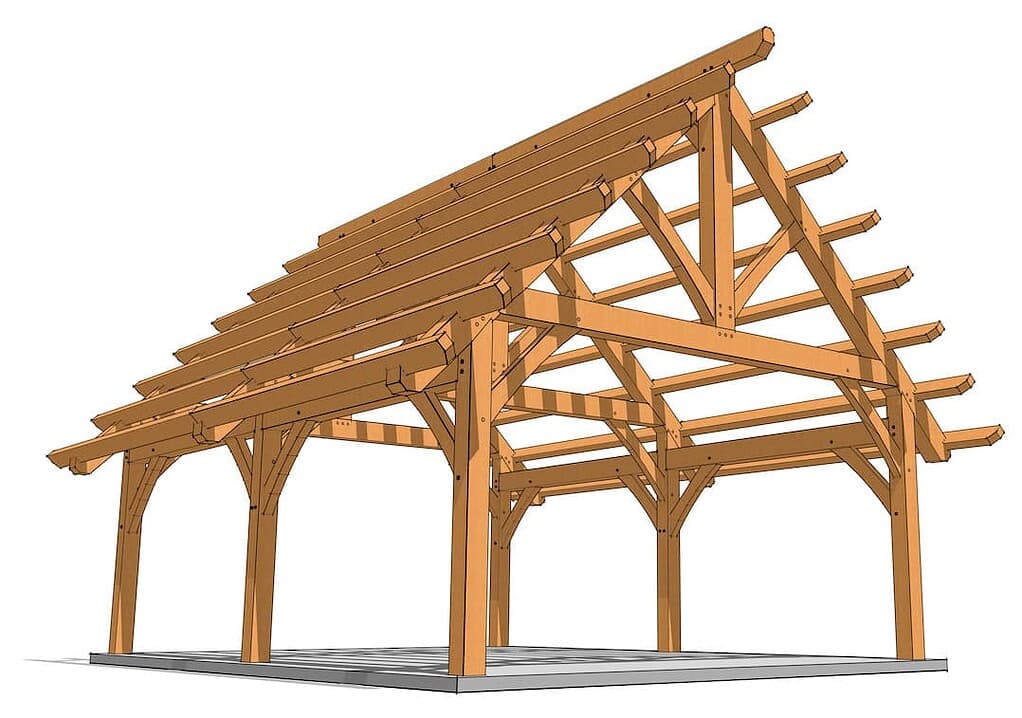

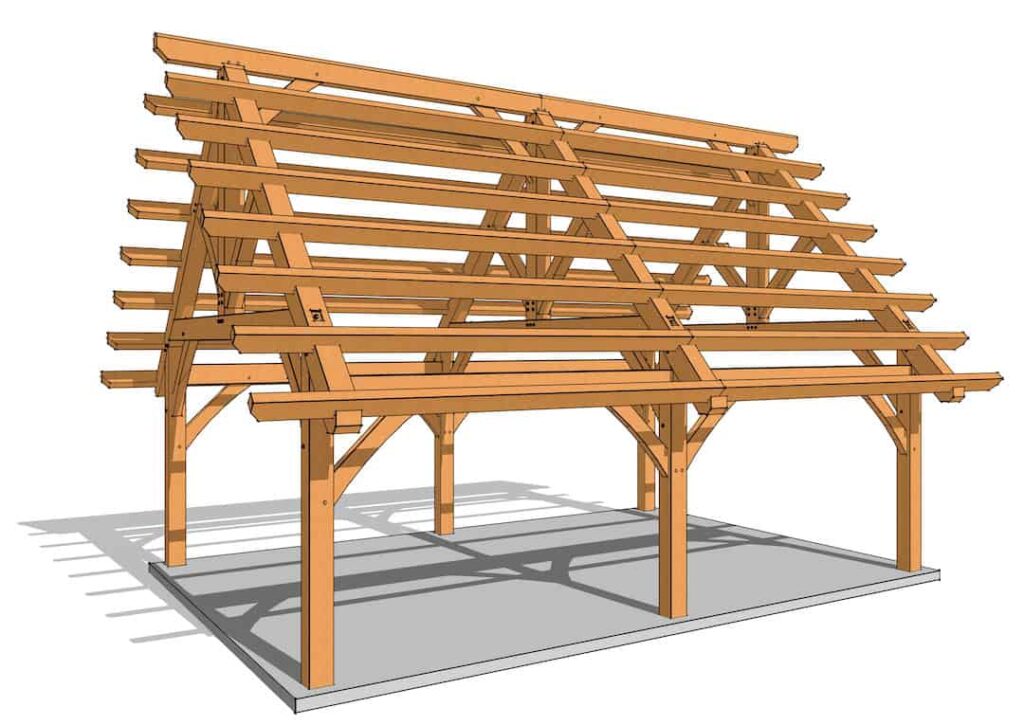

This 18×24 timber frame with purlins has great architectural detailing. The struts and knee braces gently curve, creating a beautiful structure. The rafters and purlins of the steeply pitched 12 in-12 roof create their rhythm – top them with simple metal roofing or add a tongue-in-groove ceiling to make a wonderful space.
The 18×24 footprint is large enough for many different uses – a combination of an outdoor kitchen and dining pavilion, a sweet detached guest house, a beautiful carport, or even a generous great room addition to your home. Whatever you use it for, you will be proud to show off your cutting and framing skills when the project is done!
The 25-sheet PDF plan set is ready to download once you purchase it. The drawings for this 18×24 pavilion with purlins include renderings, a timber schedule, plan, elevation, and sectional drawings, along with piece drawings showing each cut on every timber. There are also 3D drawings so you can visualize the project. The plan set is formatted at 8 /2″ x 11″, so you can easily print it at home or your neighborhood copy shop.
Check out this plan in our shop: 18×24 Foot Timber Frame Pavilion Plan.
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.
Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
-
