16×24 Timber Frame Pavilion

Compact Footprint. Big Presence. Ready-to-Raise™.

The 16x24 Timber Frame Pavilion offers a well-balanced blend of architectural beauty and structural efficiency. Whether you're building a backyard retreat, carport, or enclosed guest space, this frame provides the durability of 8x8 timbers and the classic appeal of king post trusses in a size that fits most properties.

Designed with smart construction in mind, this frame allows you to pre-assemble and raise trusses with confidence—making it a satisfying build for timber framers and skilled DIYers alike.

Frame Highlights:

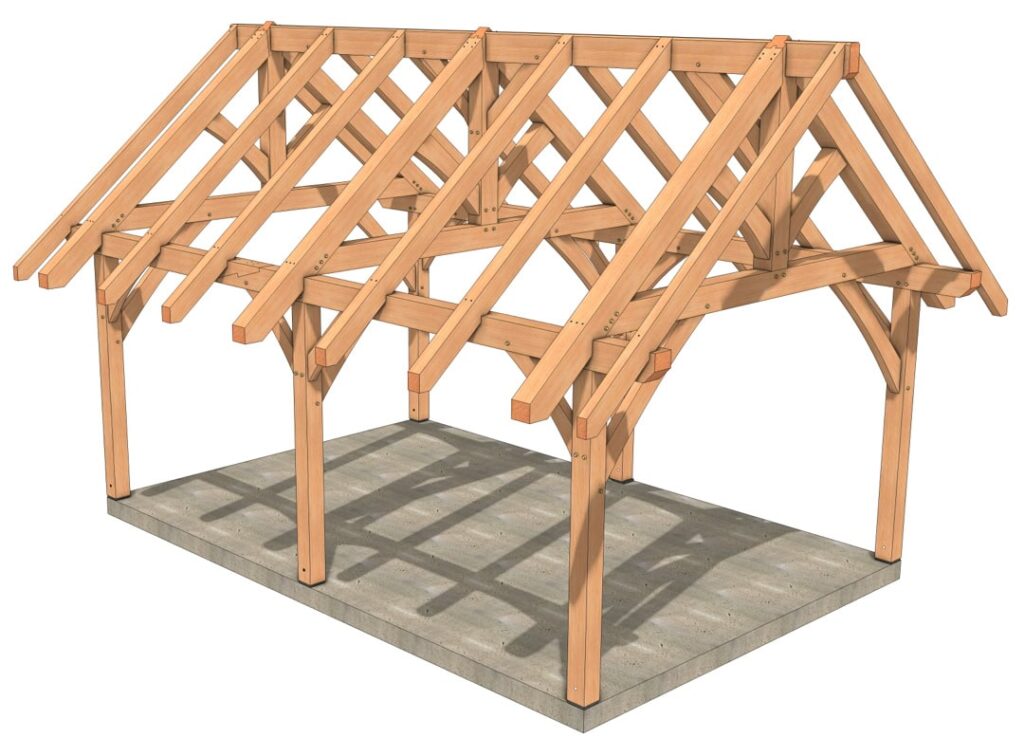

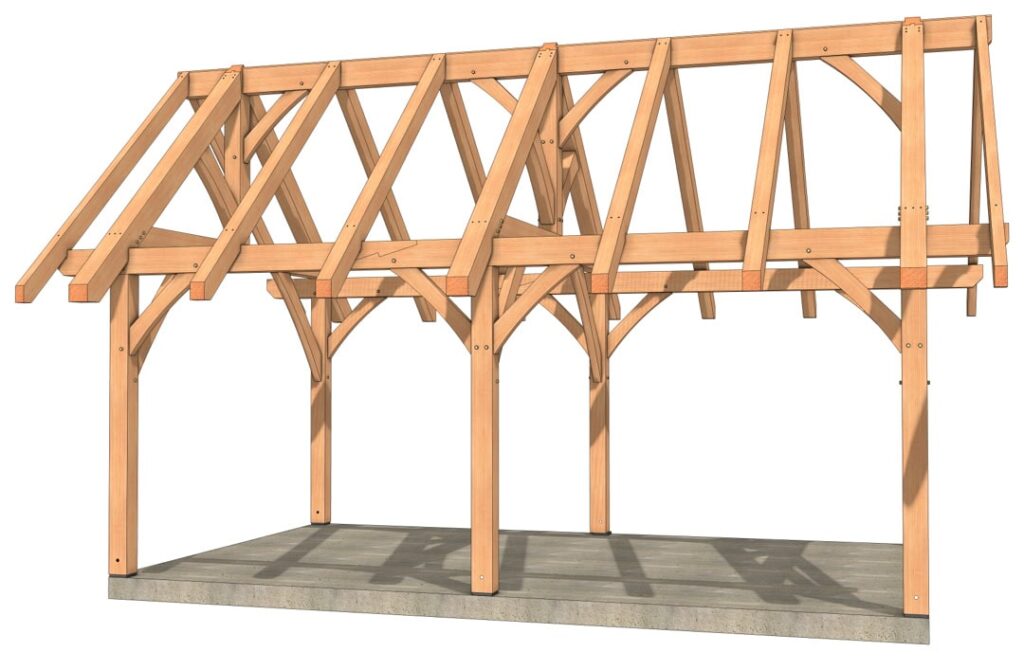

• Dimensions: 16' x 24' (measured outside to outside of 8x8 posts)
• Height:
  • Ridge height: ~17 feet
  • Eave height: Just over 10 feet

Joinery Details:

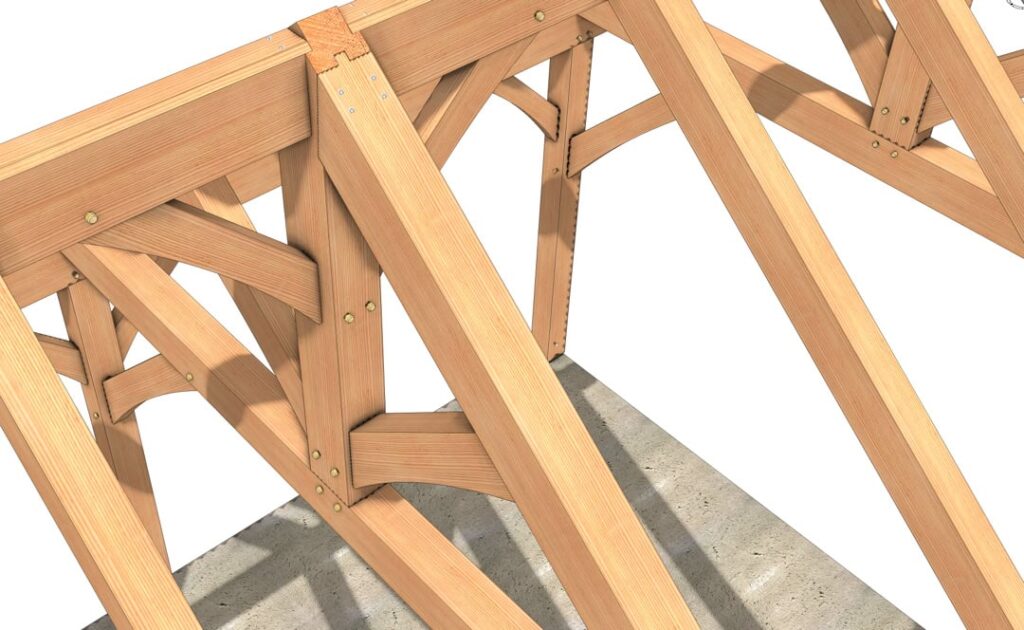

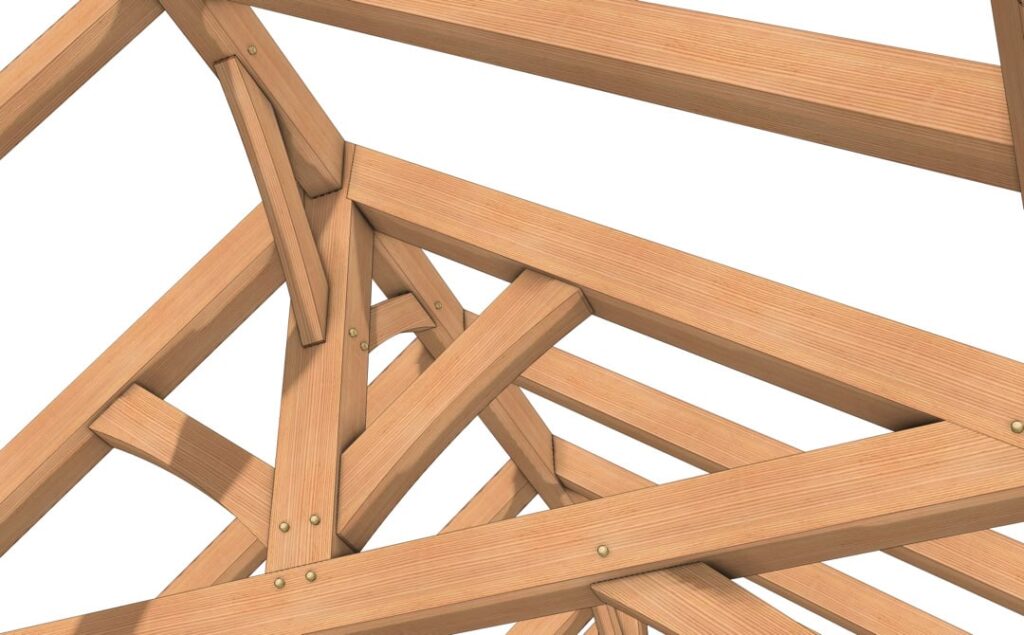

• King post trusses with elegant curved braces and struts

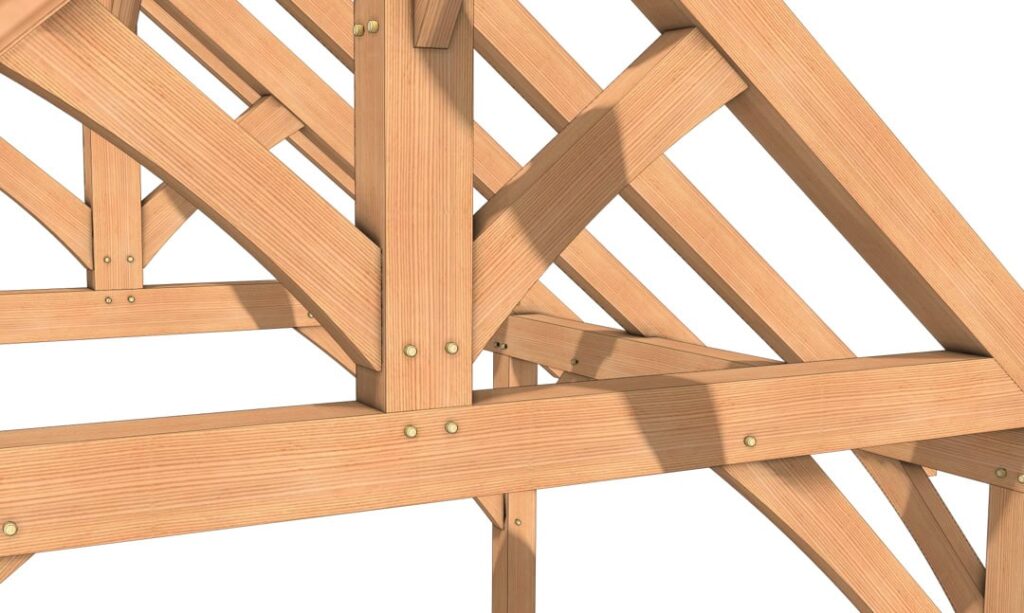

• Bottom chords and principal rafters rest directly on posts

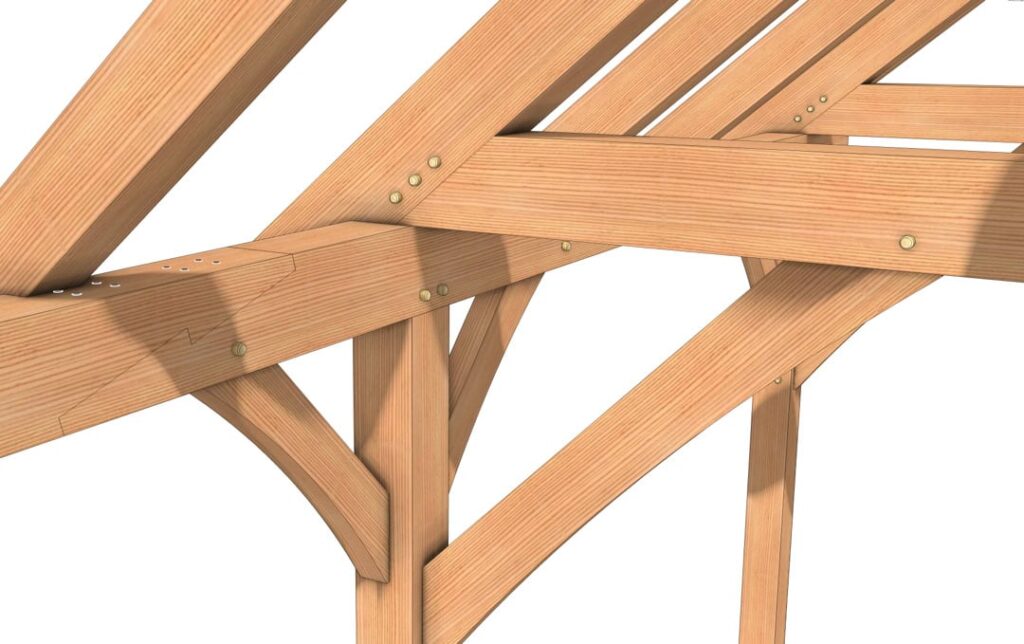

• Scarf joints on the eave plates allow use of shorter timbers while showcasing craftsmanship
• Structural screws and fasteners for added strength (available through Timber Frame HQ)

Efficient Roof Assembly:

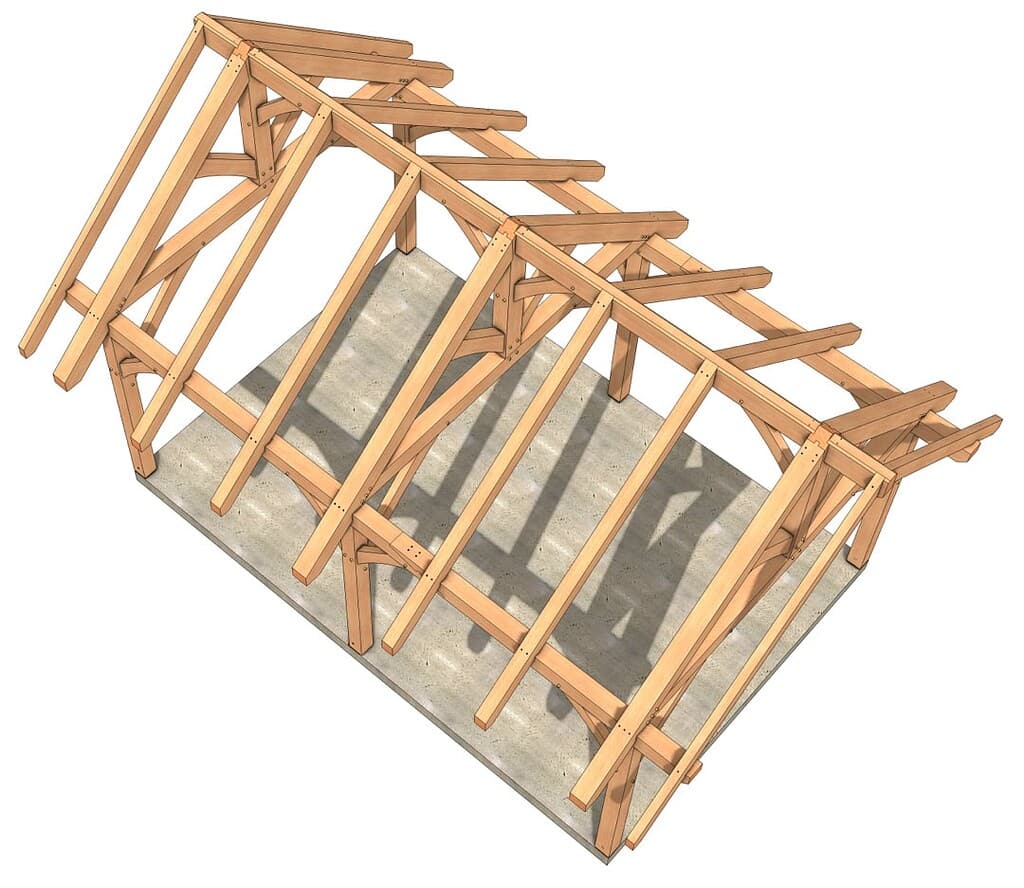

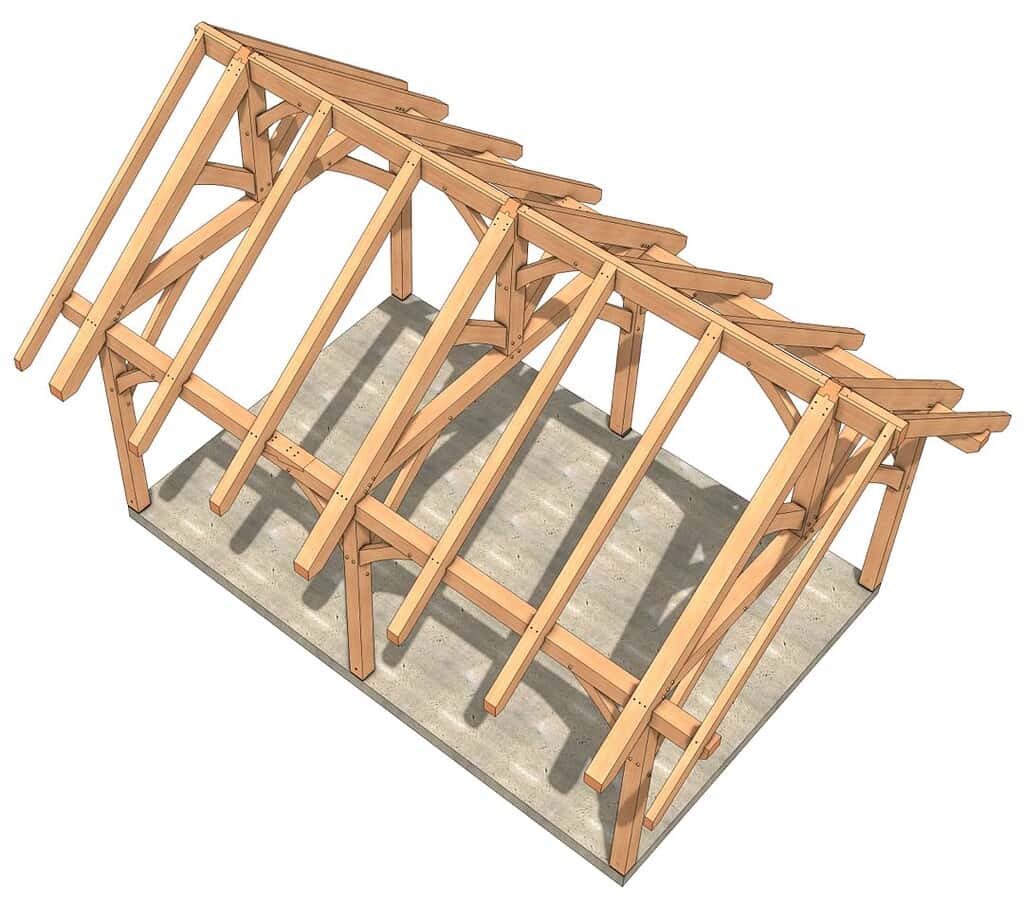

• Rafter-based roof system
• Trusses can be pre-assembled on the ground and lifted into place
• Once the posts and eave plates are set, the ridge, rafters, and braces finish the frame quickly and securely

Ideal Uses:

• Backyard Pavilion or Outdoor Dining Space
• Small Carport or Covered Vehicle Shelter
• Enclosed Guest Suite or Home Office
• Workshop, Yoga Studio, or Hobby Room
• Poolside Lounge or Patio Feature

This flexible layout supports open-air living or full enclosure, depending on your needs and finish materials. Whether open or enclosed, the 16x24 Timber Frame Pavilion is Ready-to-Raise™ and ready to bring elegance, utility, and craftsmanship to your next backyard or building project.
