Tugaloo Cabin

$197.00

SKU: 17099 Categories: ,

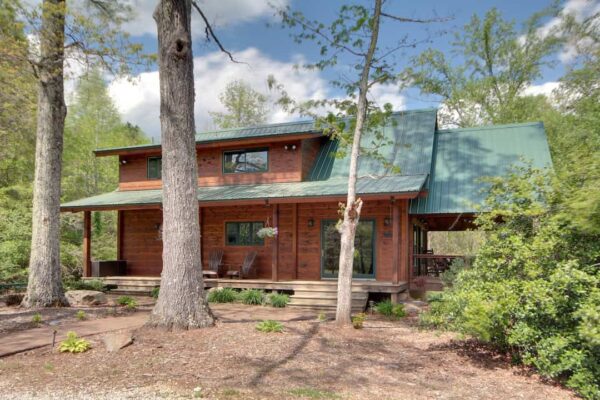

This beautiful two-level house would make a great weekend getaway or family home. The footprint is 36'x25', plus a 12’ covered entry deck and a generous 6’ deep side porch along the width of the house. That means this house can easily fit on even a smallish lot. But even with this compact footprint, you get just under 1600 square feet of comfortable heated space.

The layout is especially flexible because of the bedroom and bathroom on the main level. They would make a nice master suite, or a ground level, universal-design guest or in-law suite. Upstairs there is another good sized master suite and two additional bedrooms for the family.

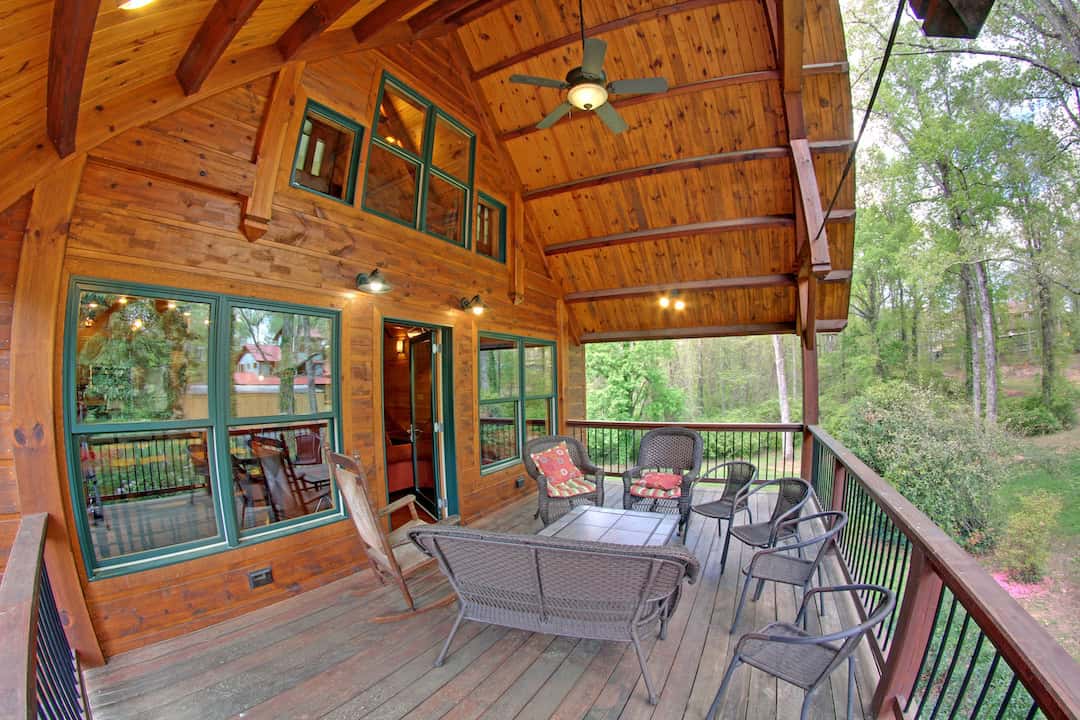

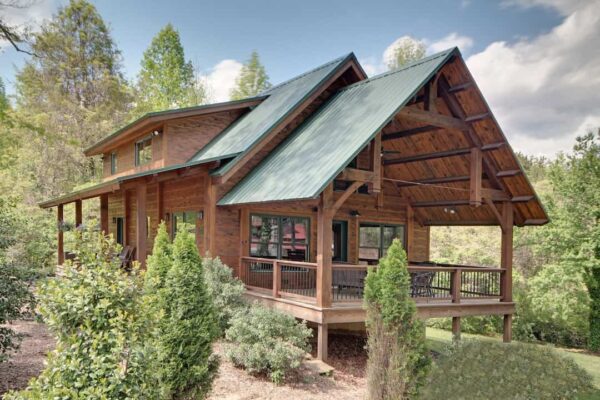

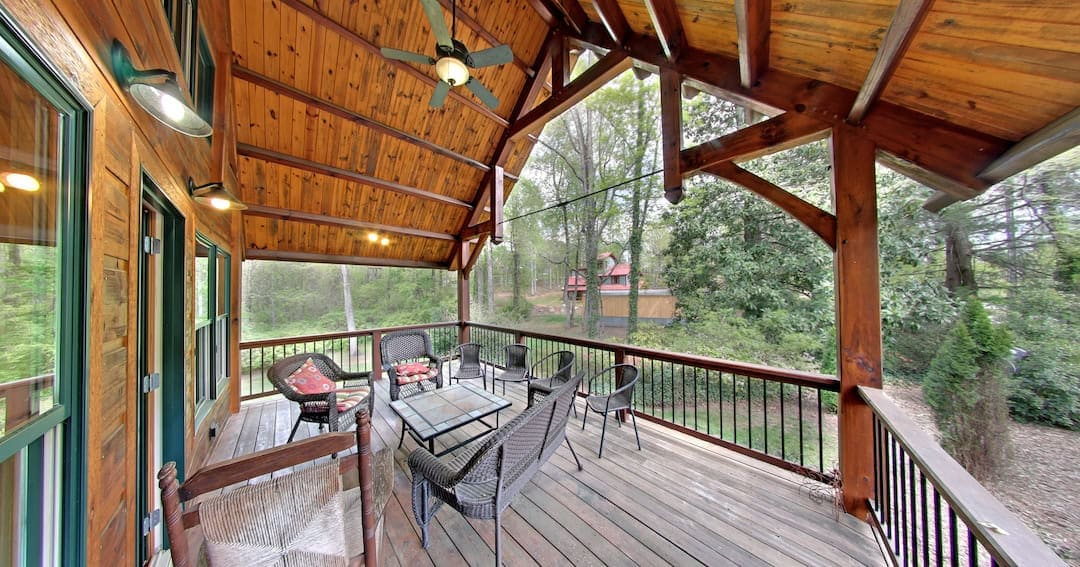

  • 456 square feet of covered patios with hammer beam trusses on the side porch and exposed rafters on the entry porch.
  • This hybrid timber frame home has heavy timbers in the entertaining areas, and conserves money by using conventional construction in the sleeping quarters and bathrooms!

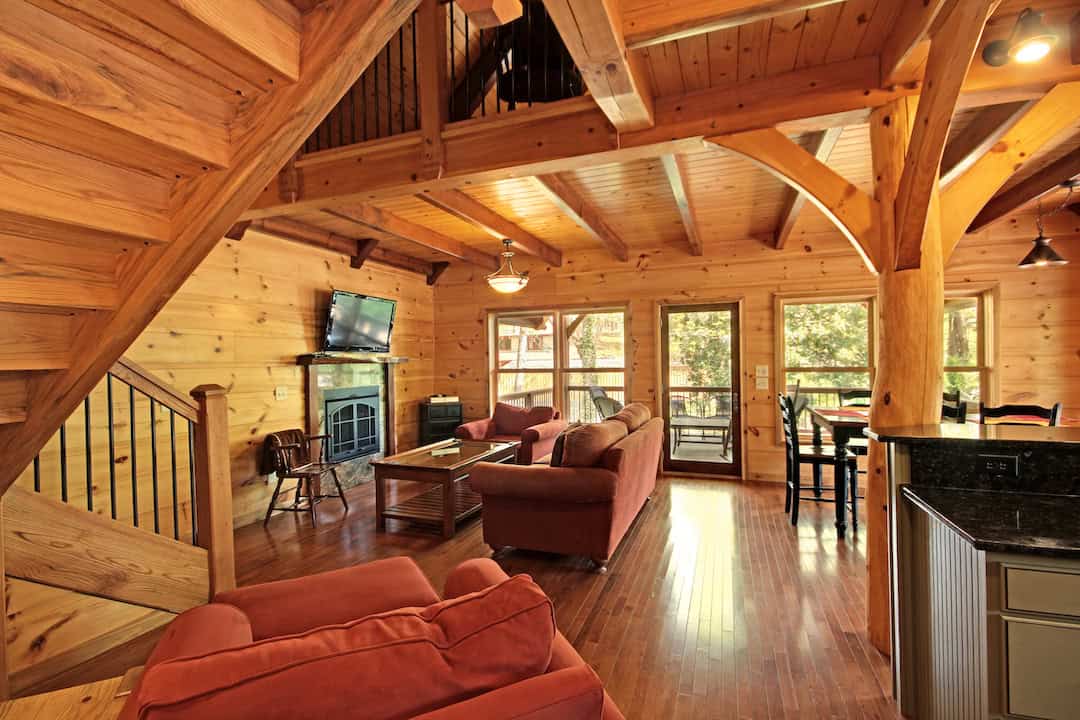

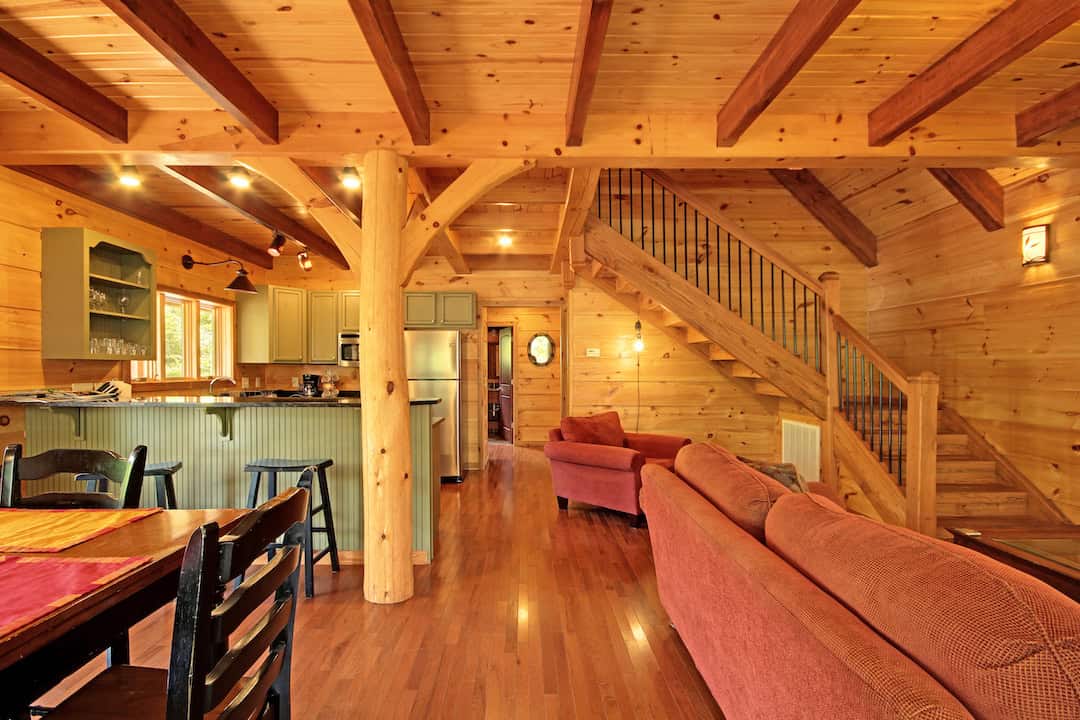

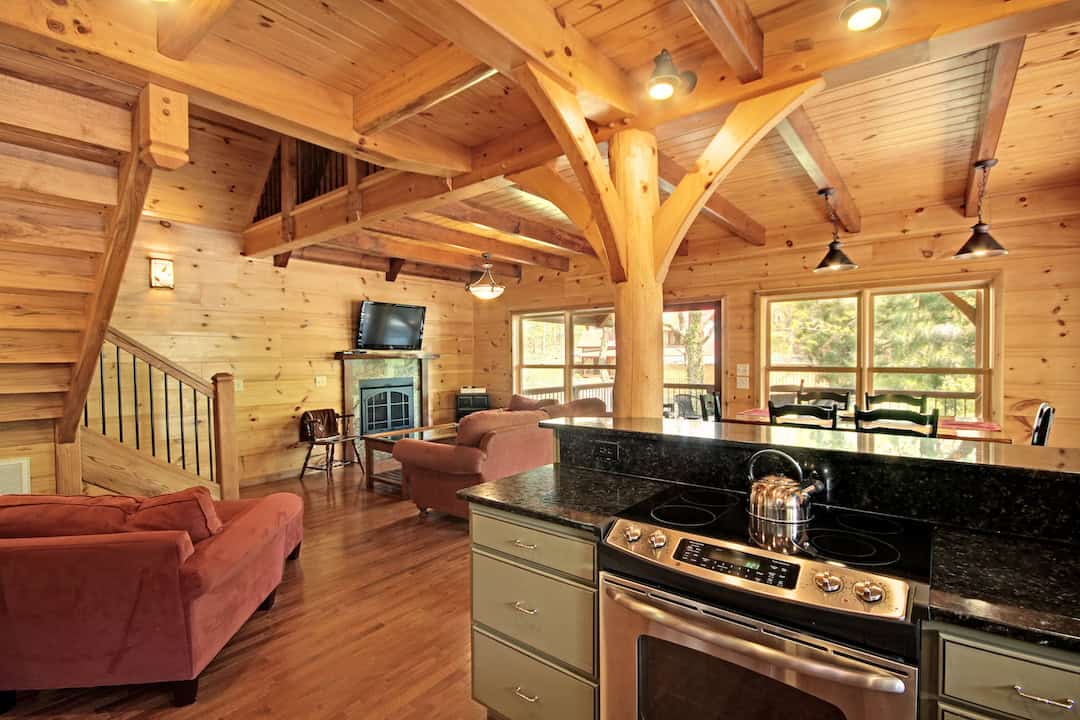

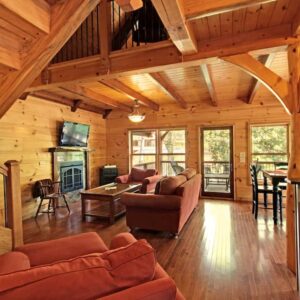

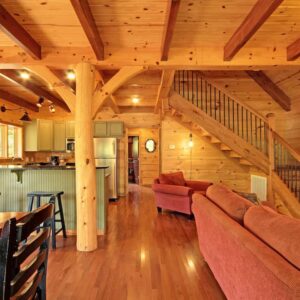

  • The living and dining areas are open to the porches and the efficient U-shaped kitchen, making this home conducive to family time or entertaining!

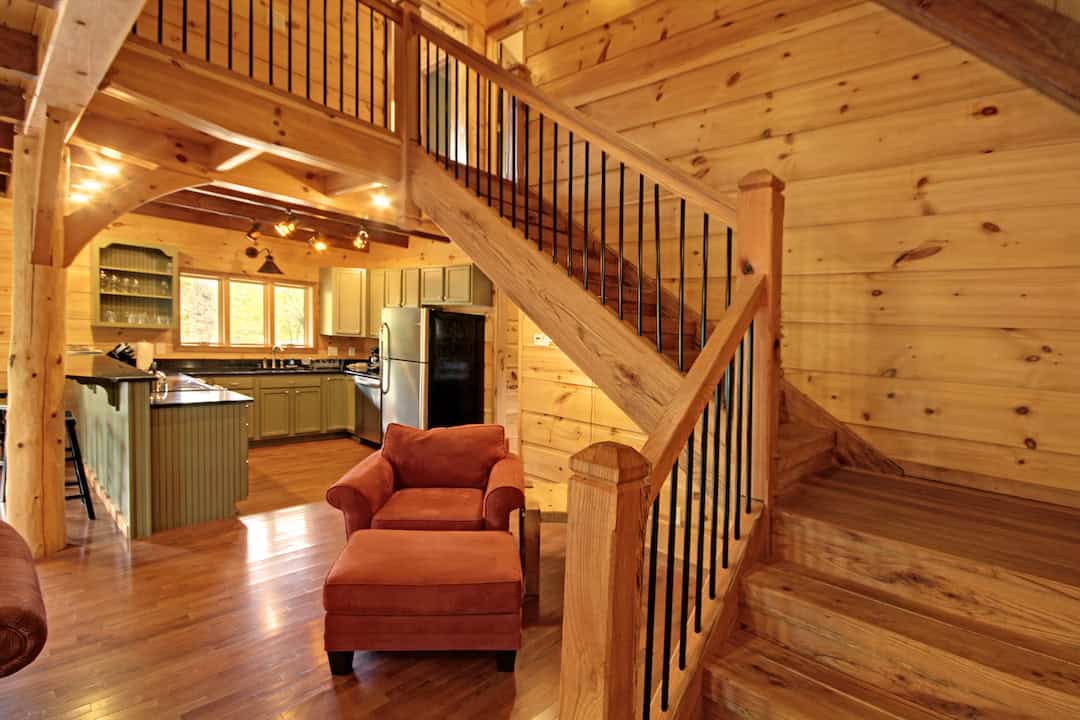

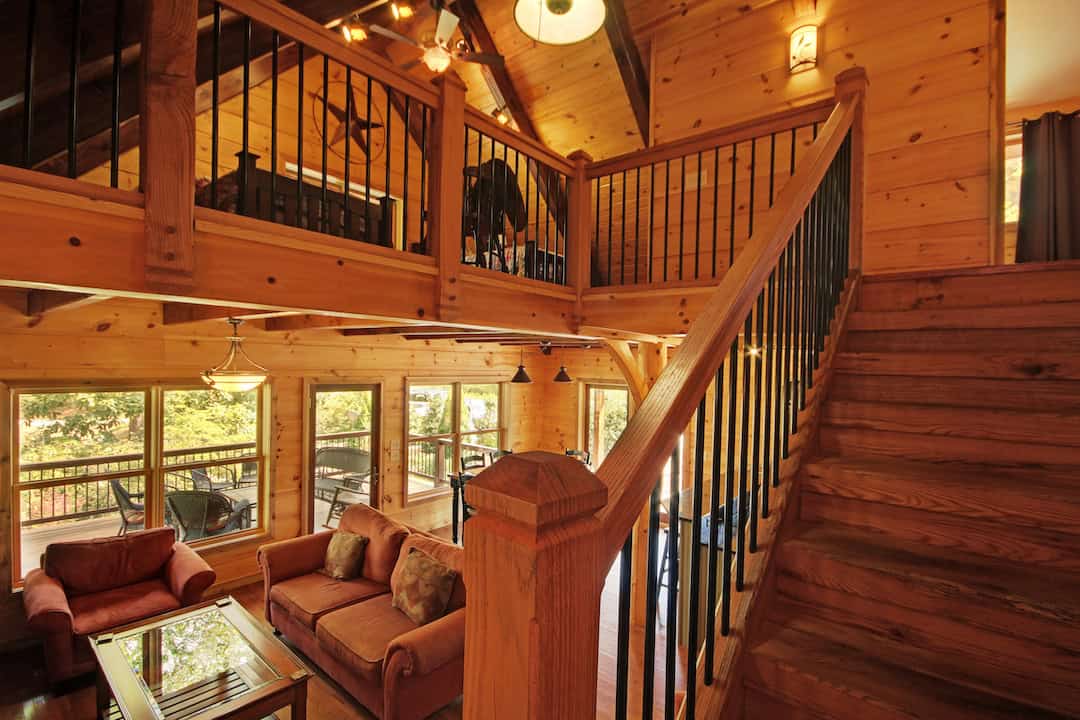

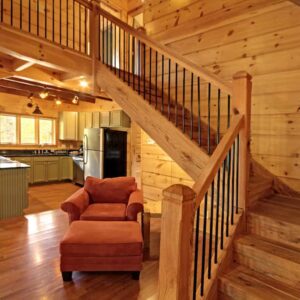

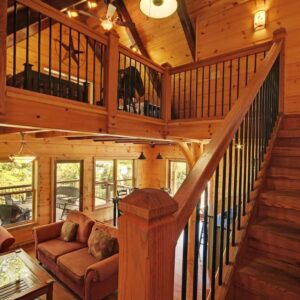

  •  The main level features and expanded stairwell and focal point fireplace.
  • The ground floor level also features a laundry closet and mud room convenient to the side entry.

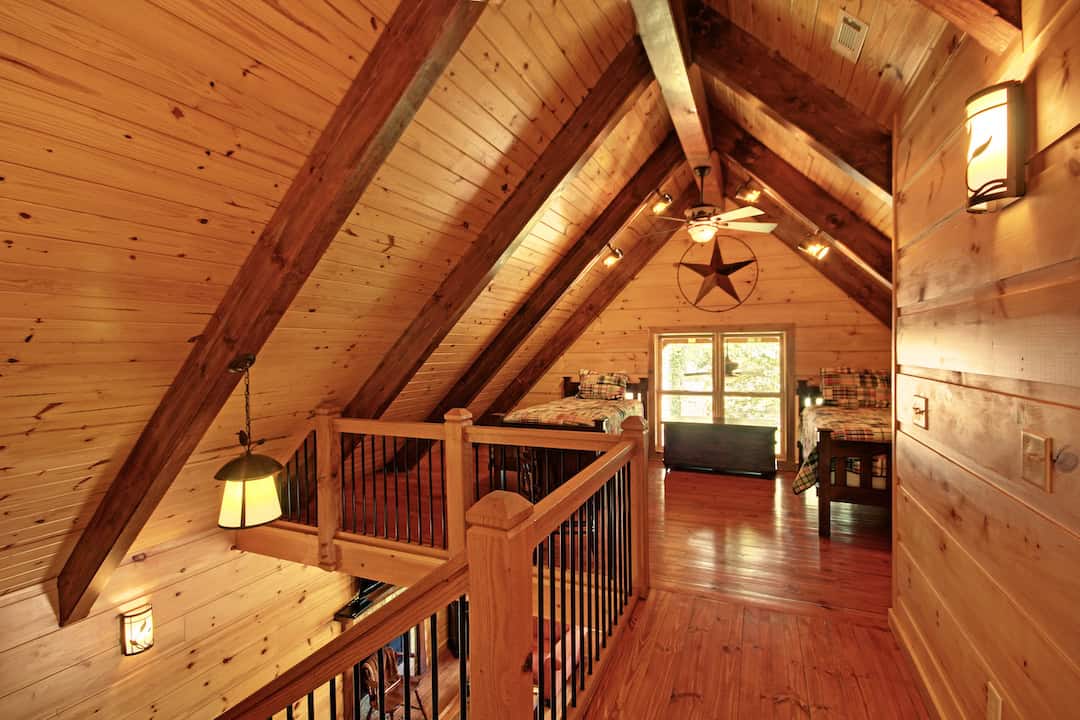

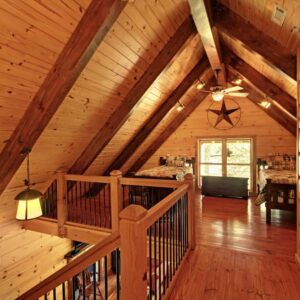

  • The second floor's oversized dormer gives the house plenty of curb appeal, and creates comfortable space on the second floor.
  • Heated Square Feet 1,576 sqft
  • Covered/Uncovered Decks 456 sqft
  • Total 2,032 sqft

You get 15 instantly-downloadable pages in a multi-sheet PDF that print up at full blueprint size at 24"x36". This plan will get you to the finish line.

This plan is also included in the Master Plan Bundle and the Timber Frame Home Plan Bundle 2.

Tugaloo Cabin Plan Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 36’ wide by 25’ long plus 12’-6 1.2” by 24’-1” porch
  • 2’ overhangs
  • Height to Peak of Roof 22’-4” with 12:12 and 4:12  Roof Pitch

Design

  • Open Great Room, Kitchen and Dining
  • Three Bedrooms, 2 Baths
  • 900 s/f Main Floor, 676 s/f Second Floor, 456 s/f Covered Porch

Timbers

  • Posts –4×10, 6×10, 8×10
  • Ridge –8×14
  • Rafters – 6×10
  • Tie Beams – 8×10
  • Braces – 4×8

Plans

  • 15 pages total
  • Construction Drawings – 15 pages (24×36)

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
