Big Space. Simple Joinery. Boundless Potential.

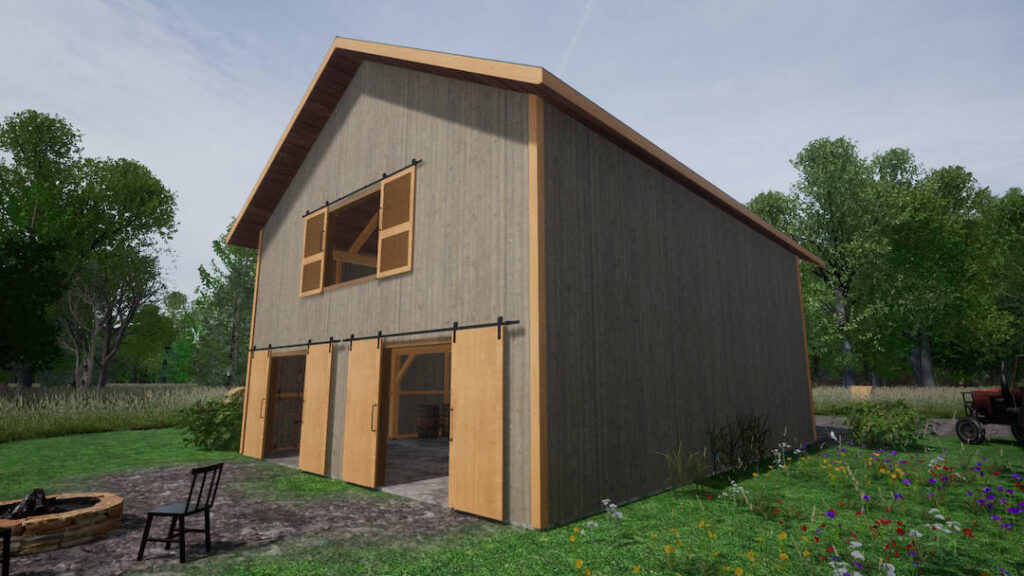

Whether you’re envisioning a barndominium, workshop, or a heritage-inspired barn, the 30x40 Post and Beam Barn offers the scale and structure to make it happen—without overcomplicating your build. With 2,400 square feet of enclosed space spread across two full floors, this frame is as versatile as it is impressive.

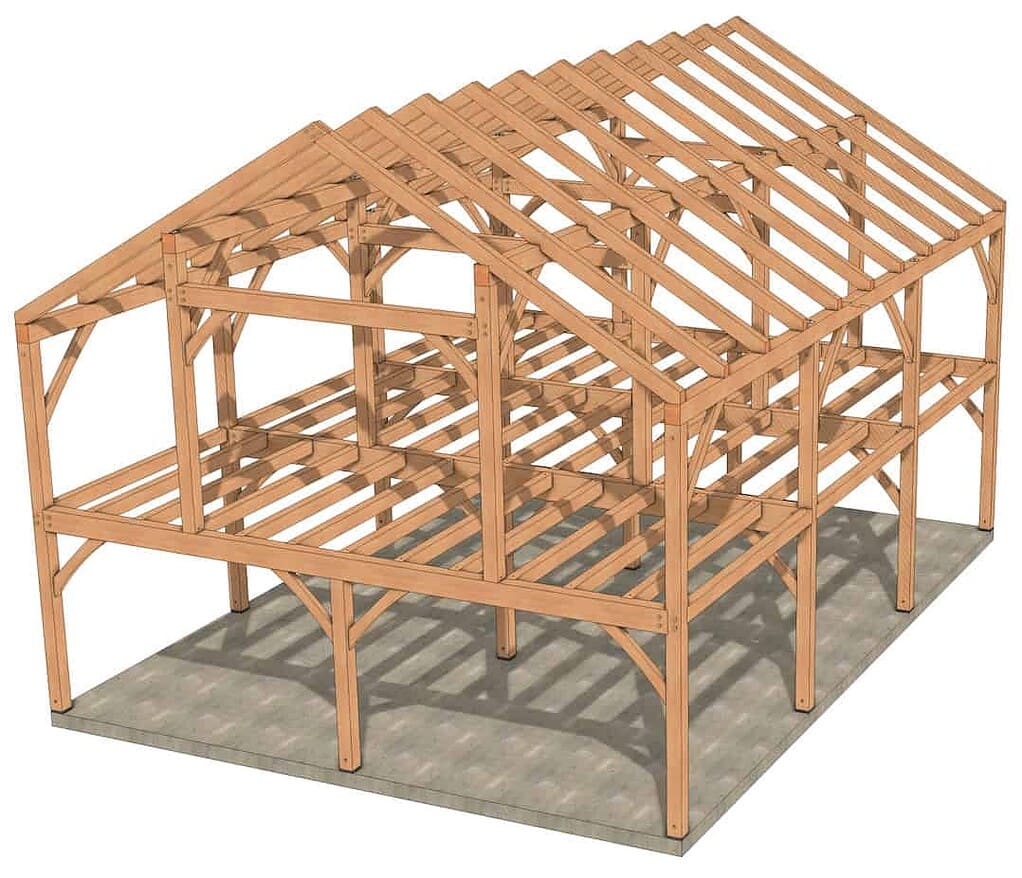

Structure Highlights:

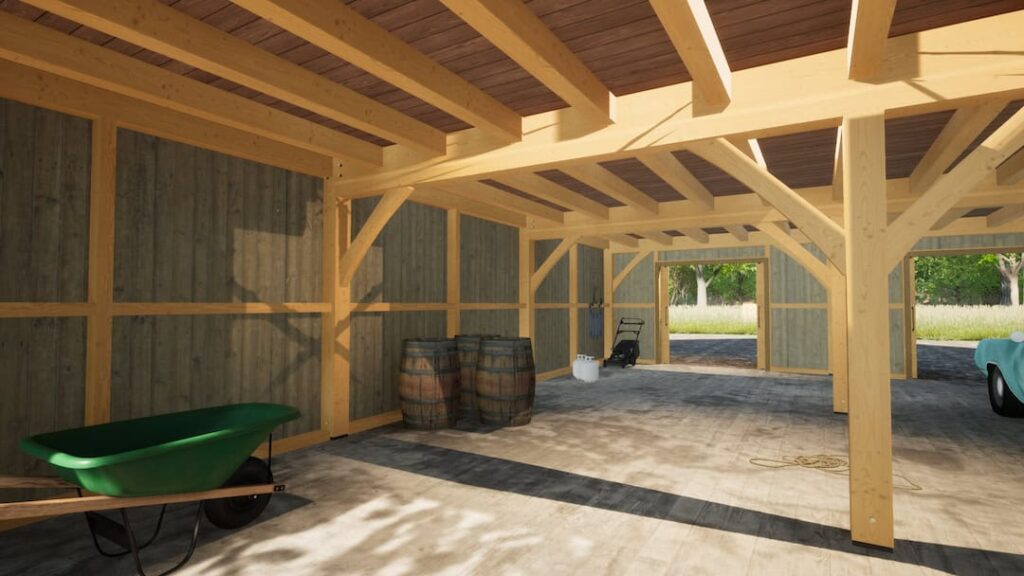

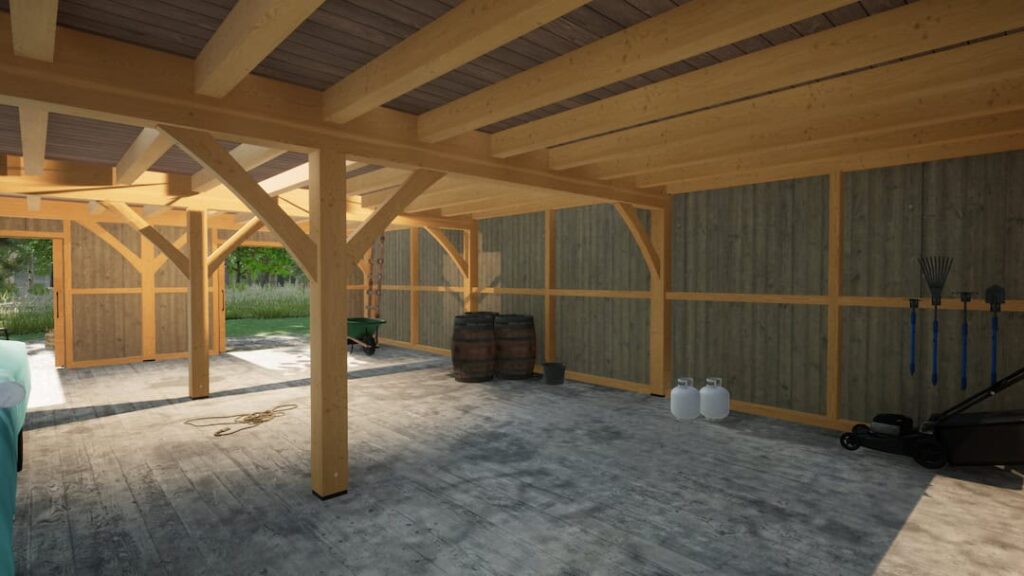

- Main Floor: 1,200 sq ft of open, flexible space

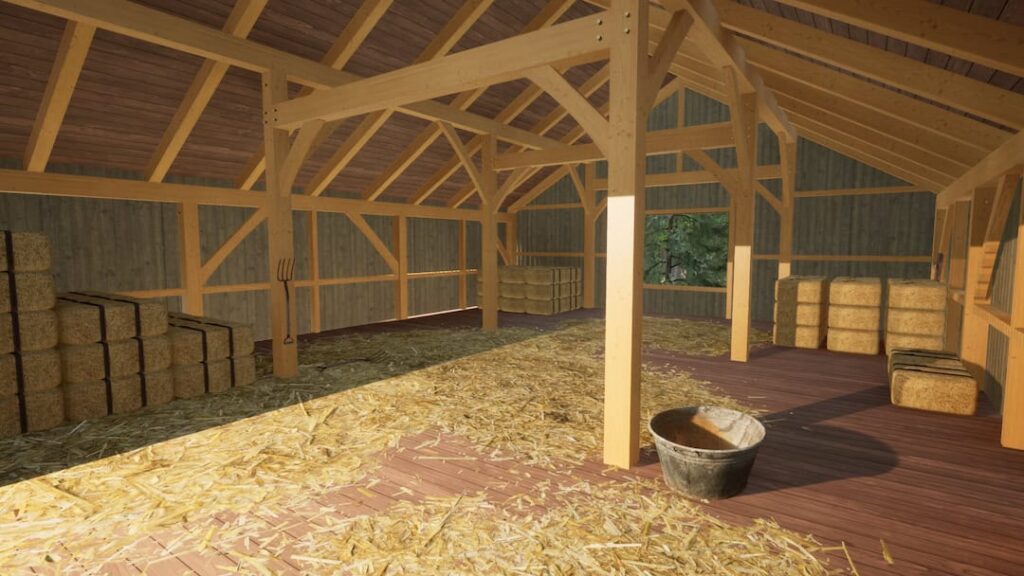

- Second Floor: Another 1,200 sq ft with soaring ceilings and gable window potential
- Total Enclosed Area: 2,400 sq ft
- Ceiling Heights: Lower girt at over 9’, top plate 8’ above that, and second-floor ceilings climbing another 9’ for dramatic vertical volume

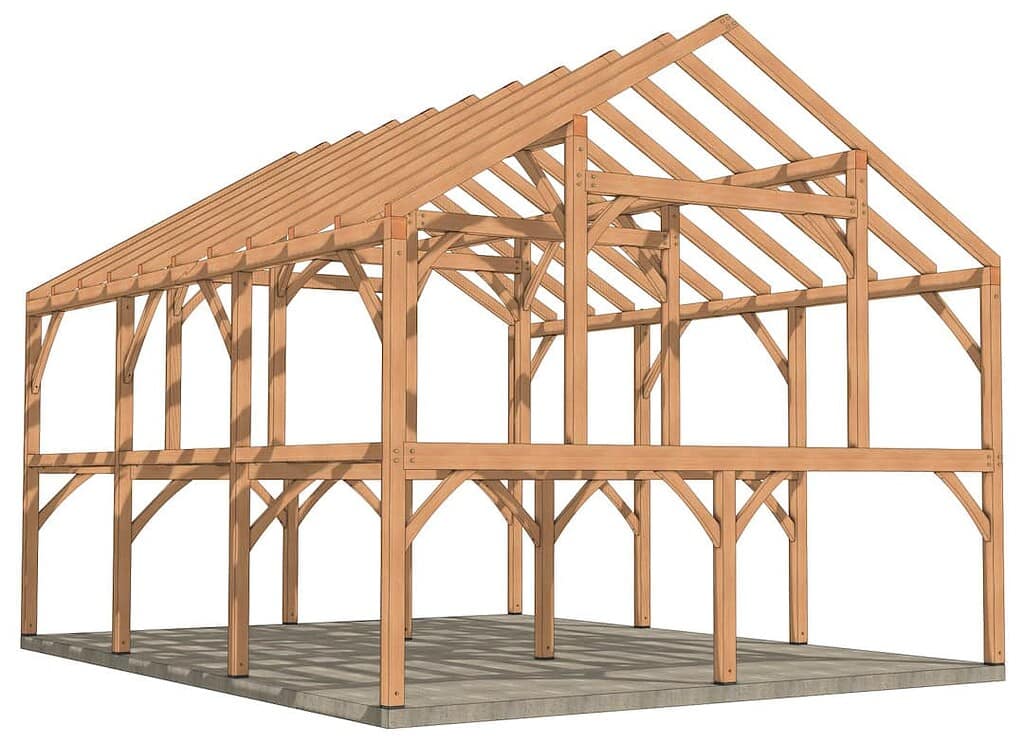

- Gable End Window Ready: Queen post framing allows large apertures for natural light and stunning views
- Open Stair Options: Floor system can be adapted for stairwell placement to suit your layout needs

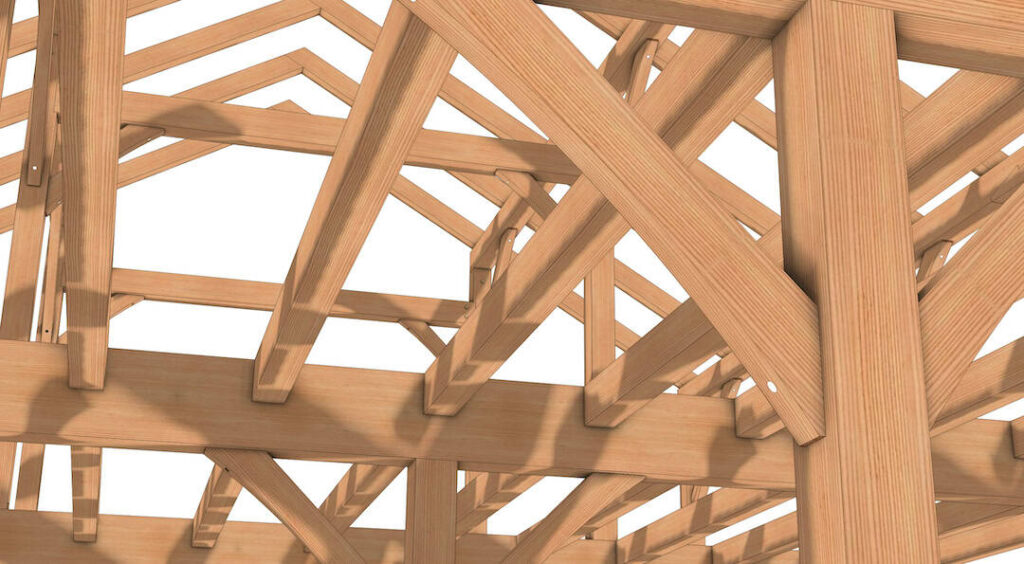

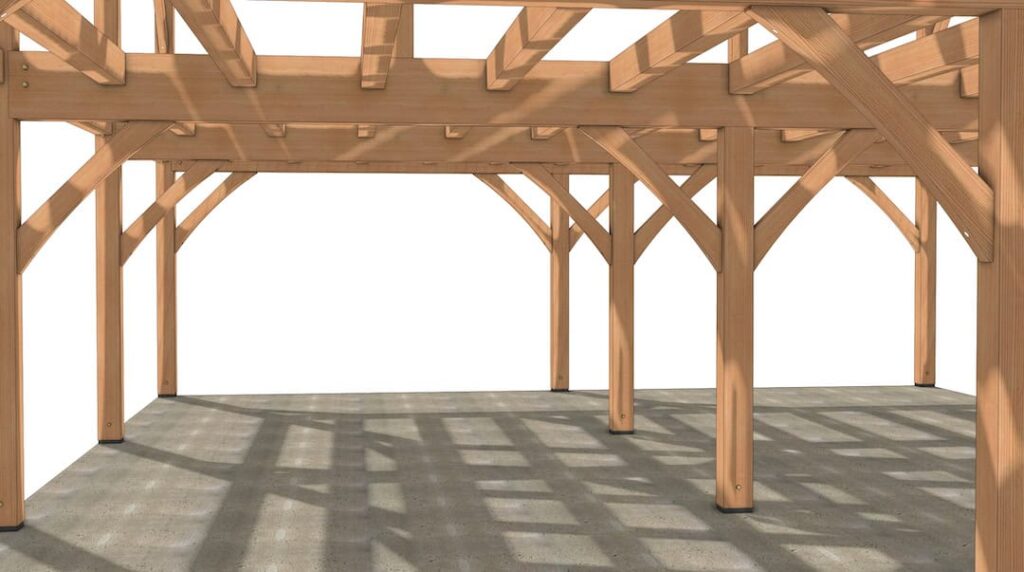

Built with straightforward construction in mind, this barn uses post and beam techniques that skip the complexity of traditional mortise and tenon joinery. Instead, it’s framed using Timberlinx connectors and structural screws, along with shallow housings for knee braces and scarf joints for extended top plates—giving you authentic timber frame character without the learning curve.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
Could you raise the lower floor on this plan by 1-2’ without having to re-engineer structural integrity and wind ratings?
We would recommend having an engineer look at that.
Is this 30×40 or 30×60? The title says 30×40 but the specifications say 30×60.
Funny, we just caught that error and corrected it. The plan is 30×40.
On the 3D rendering I’m having a hard time understanding the location of the pegs, especially on the posts and lack thereof on the corner braces. Is that an inadvertent error that is different on the plans?
It is just on the 3d rendering. Not everything gets imported into the rendering.
Hey there. I’m interested in purchasing plans. But we live in Australia. Do you guys do these plans in metric as well?
No, our plans are in Imperial measurements. Our Custom Design Department could help you for additional charge.
Spiral staircase, 1 bedroom upstairs with over looking inside balcony. Giant loft window 2 pane open outward on opposite with hoist,30×40 with barn style roof
Sounds like you would like to customize this plans a little. We are happy to do that. We will reach-out to you directly via email about your project.
How would changing species affect timber dimensions say Eastern White Pine to Red Oak? could you mix?
I would keep the same sizes. Red oak is a little stronger than EWP but not that much to make any changes.
Can This be changed to 24’x36’ with a great room?
Take a look at the plan at https://timberframehq.com/shop/24×36-heavy-timber-barn/.
