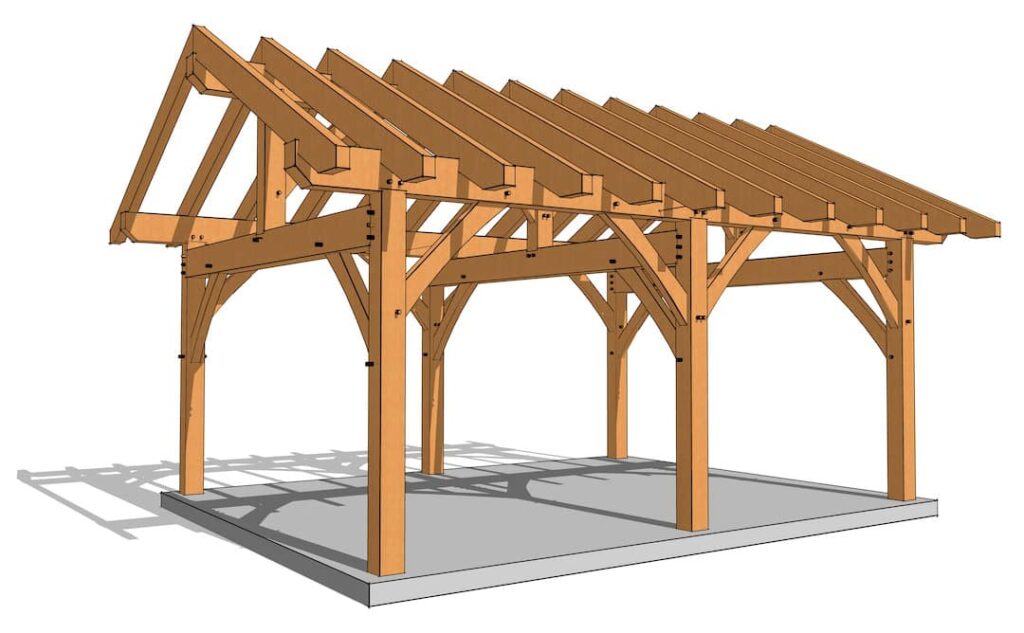

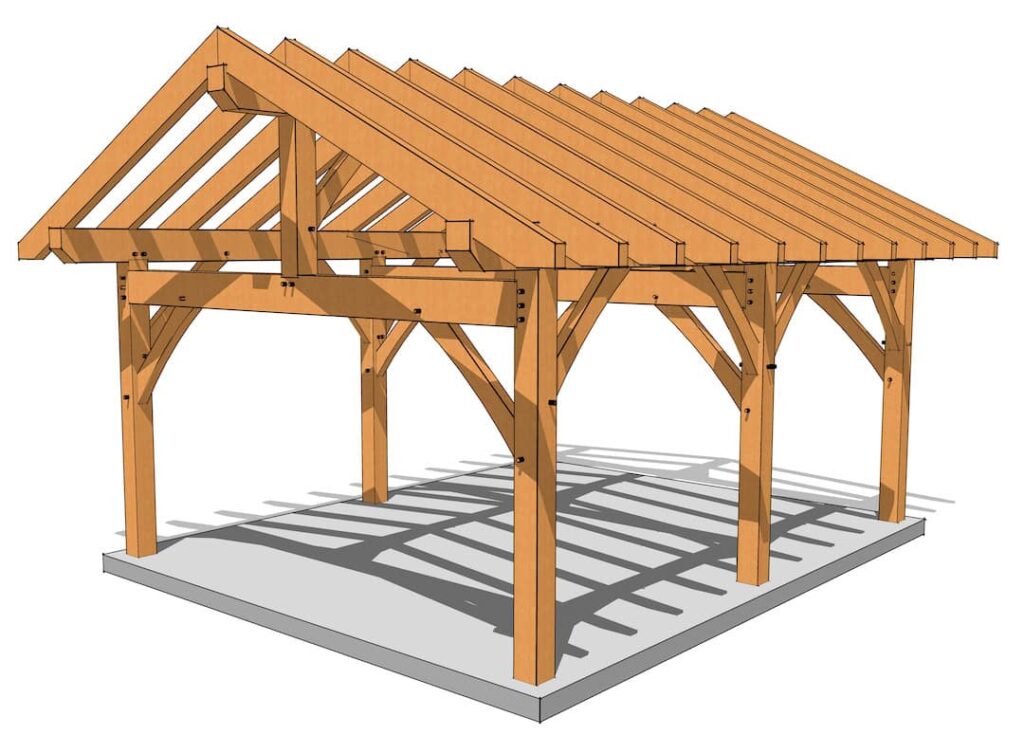

Looking for a rewarding first timber frame build? The 16x20 King Post Timber Frame is an ideal starting point for DIYers and seasoned builders alike. Whether you're envisioning a cozy cabin, a workshop, or an open-air pavilion, this design delivers flexibility, charm, and the satisfaction of raising your own timber structure.
Key Features:
- Footprint: 16'x20' (320 sq ft)
- Ideal For: Garage, workshop, cabin, open pavilion, or outdoor entertaining area

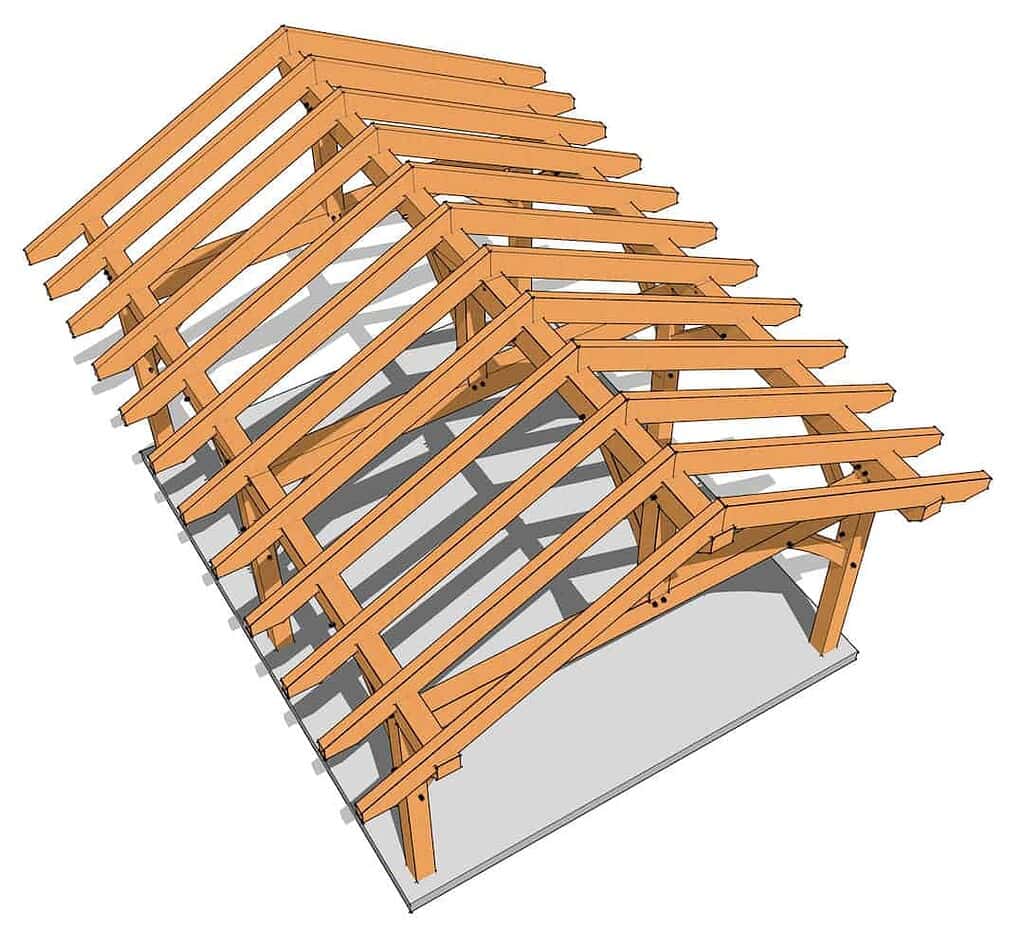

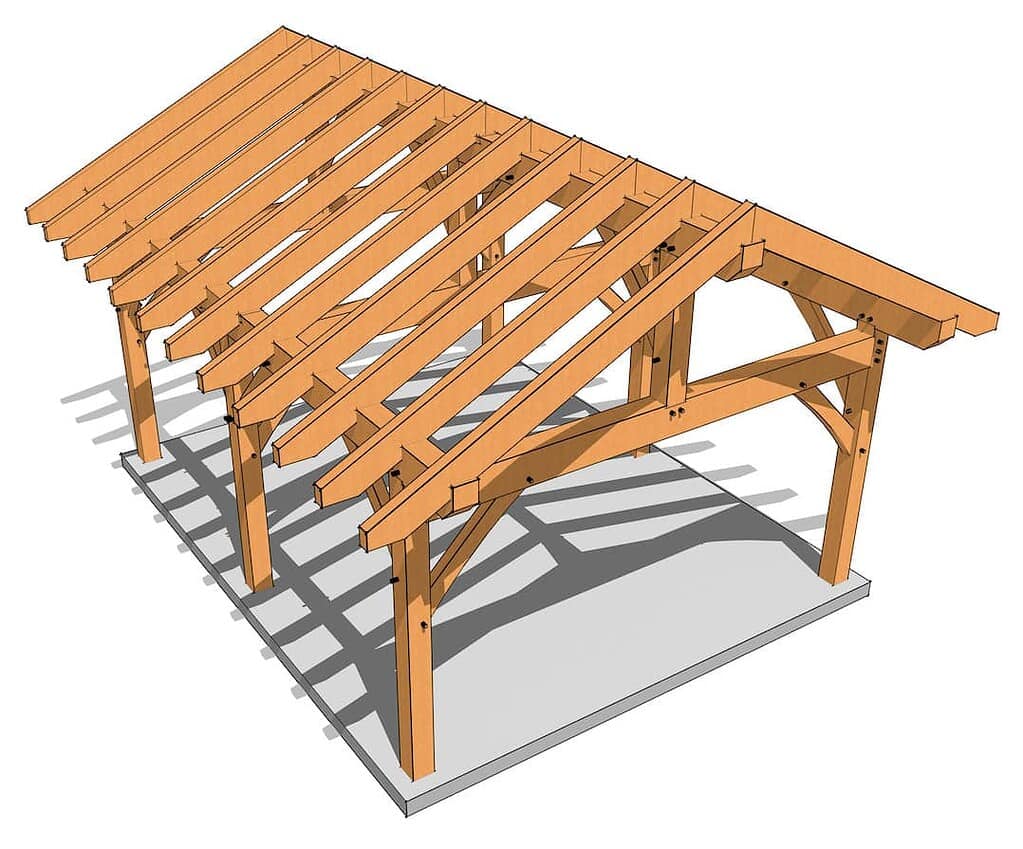

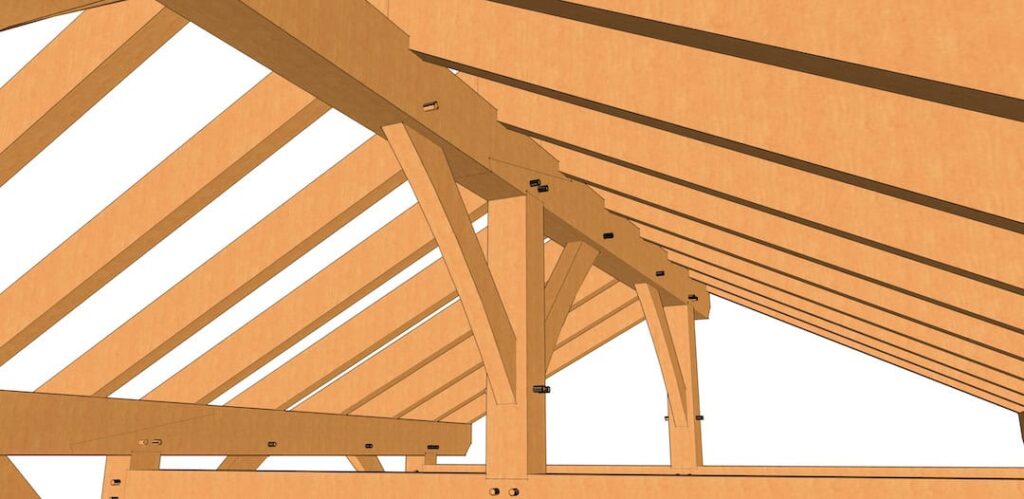

- Design Style: Classic king post truss system with simple joinery and a compact, efficient layout
- Build-Friendly: Scaled just right for first-time timber framers or small crews
With its modest size and accessible construction, this plan lets you fully experience the process of timber framing—without the complexity or time commitment of a larger build. Whether you leave it open to enjoy as a shaded pavilion or finish it out into a woodland cabin, this structure adapts beautifully to your vision.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
Can this be placed on a wooden flooring system similar to this? (https://timberframehq.com/shop/12×16-post-and-beam-cabin/)
And what is the height of the 6:12 roof pitch?
Thank you!
Is there a difference between the King post and Timber frame other than the 4′? They look the same…
Yes, you could place this on a wooden flooring system. The height to the top of the rafters for the 6:12 is 14′-4 3/4″
Thank you Katrina, very helpful!
They are the same, only difference is the 4′ you mentioned.
What additional engineering would you need for the Houston area since we experience hurricanes every summer?
We would recommend that you get the plan looked at by an engineer so he can run the calculations and verify the connections given your location. If you would like us to run that by our engineer, reach out to us at sales@timberframehq.com.
I assume that the 16×20 pavilion uses 8×8 posts? If I built this structure, I would fill in the sides with additional timbers on either side of the doors and windows. If you added additional timbers could be posts be scaled down to 6×6? I am thinking about handling such large timbers
The posts are indeed 8×8. We could never recommend your downsizing the timbers without consulting an engineer.
Is the frame tall enough to do lean to sheds off the sides of the frame with conventional framing?

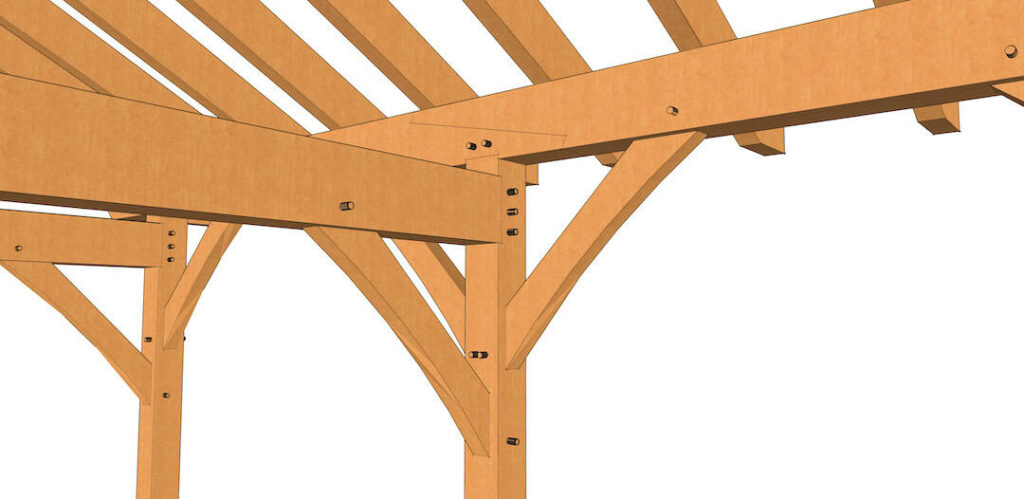

It is 8′-7″ to the top of the bent girt which is about the same as the bottom of the rafters.
Do you think going 2 ft taller would significantly cause more stress on the posts?
No it will not increase any loads on the building or posts, go for it.
Is the listed dimension of the building size the outside of post?
Yes, it is outside of the post to outside of the post. There is also a two-foot overhang on all four sides, giving you 20×24 under the roof.
