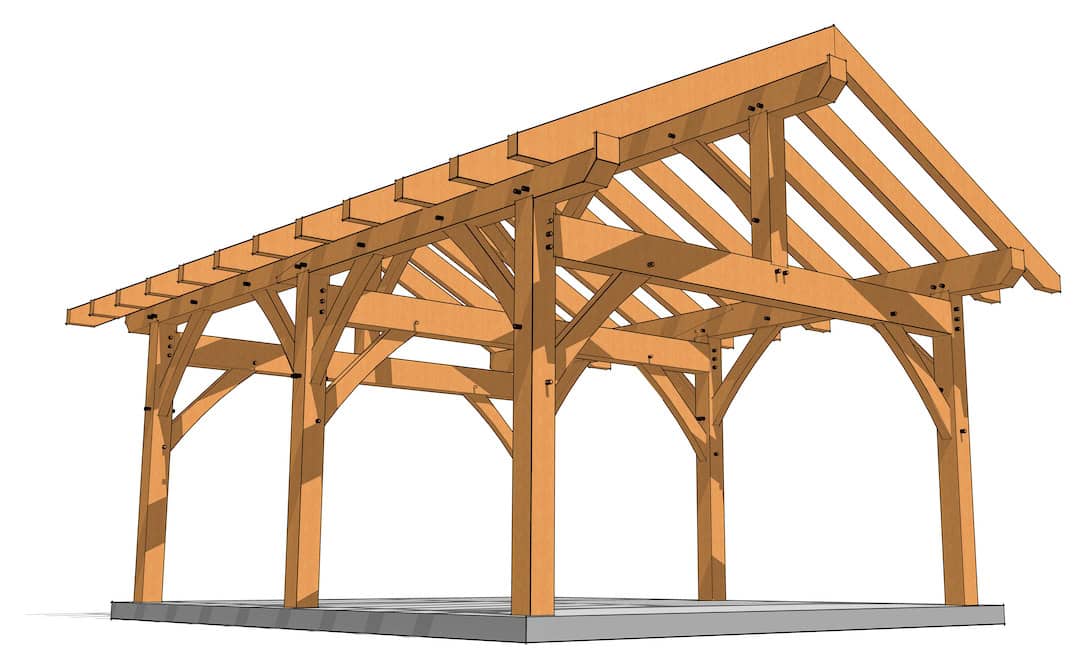

Are you looking for a plan for a roomy workshop, carport, or cabin? This 16×20 heavy timber pavilion plan is just the right size for those uses and many more. You could install siding of your choice to make a cozy, weathertight structure or leave it open for an outdoor living space. You might want to adorn the frame with a tongue and groove ceiling above the rafters.
The king post trusses add a classic style to this beefy frame supported by 8×8 posts. We offer two roof pitch variations for you to choose from: a 6:12 pitch and an 8:12 pitch, which gives you a ridge height of almost 15 feet! Also, if you want the look of a timber frame without cutting joinery, we include plans to convert this 16×20 heavy timber pavilion into a post and beam with metal connectors.
When you purchase this plan, you can instantly download the 23-page PDF set of drawings. We include fully dimensioned plans, sections, and elevation drawings along with 3D renderings to help you visualize the final product. We provide detailed drawings of each cut on every timber, so no guesswork is involved in cutting this frame. And we also provide you with a timber list, so you can easily budget and shop for your materials.
Check out this plan in our shop: 16×20 King Post Plan
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.
Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
Can this be placed on a wooden flooring system similar to this? (https://timberframehq.com/shop/12×16-post-and-beam-cabin/)
And what is the height of the 6:12 roof pitch?
Thank you!
Is there a difference between the King post and Timber frame other than the 4′? They look the same…
Yes, you could place this on a wooden flooring system. The height to the top of the rafters for the 6:12 is 14′-4 3/4″
Thank you Katrina, very helpful!
They are the same, only difference is the 4′ you mentioned.
What additional engineering would you need for the Houston area since we experience hurricanes every summer?
We would recommend that you get the plan looked at by an engineer so he can run the calculations and verify the connections given your location. If you would like us to run that by our engineer, reach out to us at sales@timberframehq.com.
I assume that the 16×20 pavilion uses 8×8 posts? If I built this structure, I would fill in the sides with additional timbers on either side of the doors and windows. If you added additional timbers could be posts be scaled down to 6×6? I am thinking about handling such large timbers
The posts are indeed 8×8. We could never recommend your downsizing the timbers without consulting an engineer.
Is the frame tall enough to do lean to sheds off the sides of the frame with conventional framing?
It is 8′-7″ to the top of the bent girt which is about the same as the bottom of the rafters.
Do you think going 2 ft taller would significantly cause more stress on the posts?
No it will not increase any loads on the building or posts, go for it.
Is the listed dimension of the building size the outside of post?
Yes, it is outside of the post to outside of the post. There is also a two-foot overhang on all four sides, giving you 20×24 under the roof.
