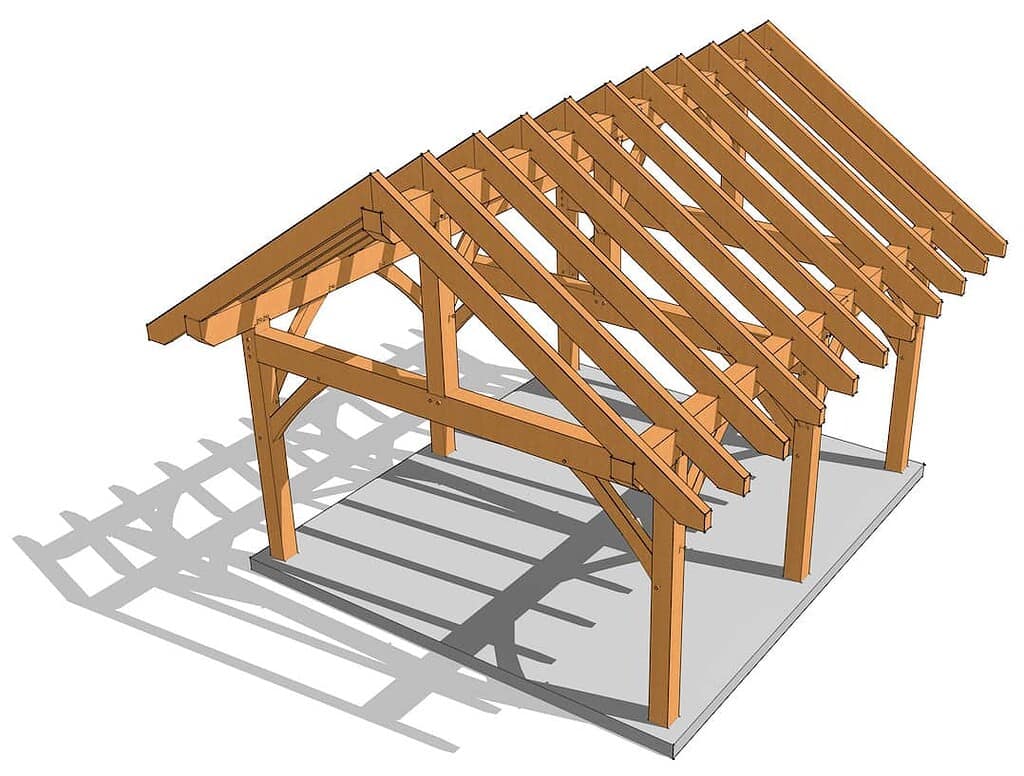

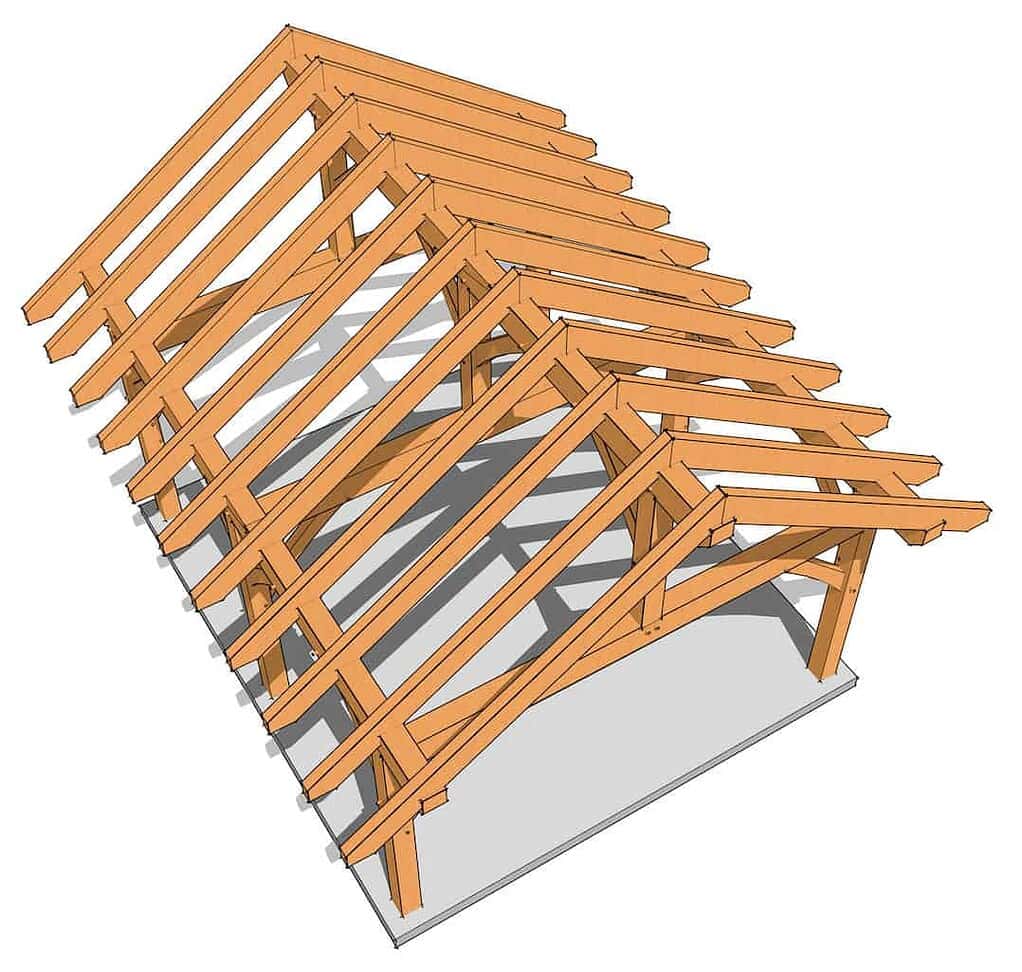

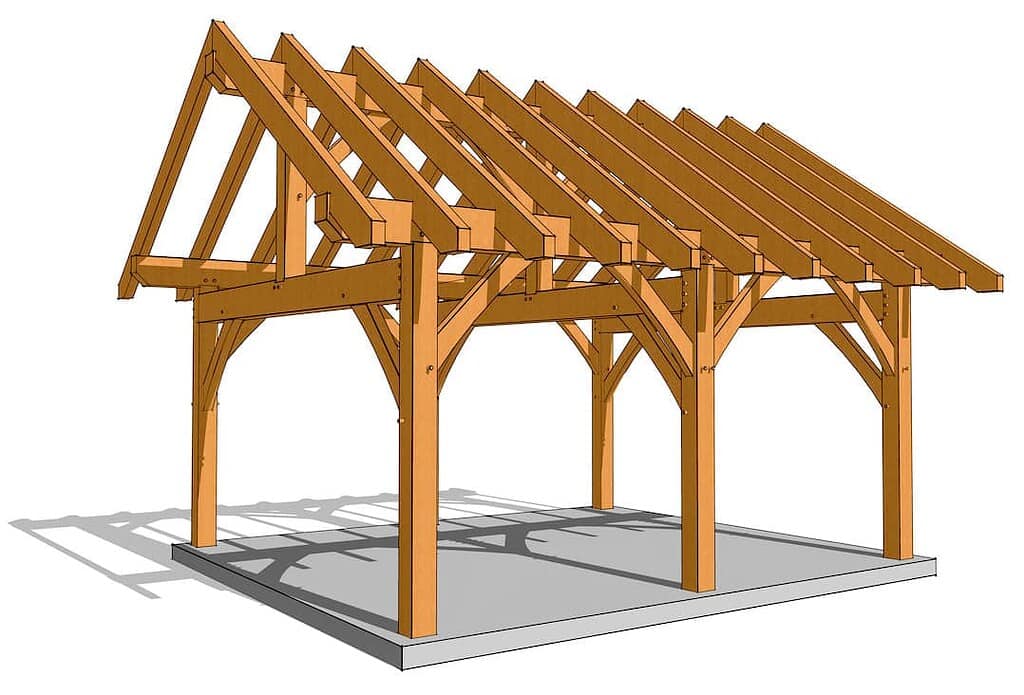

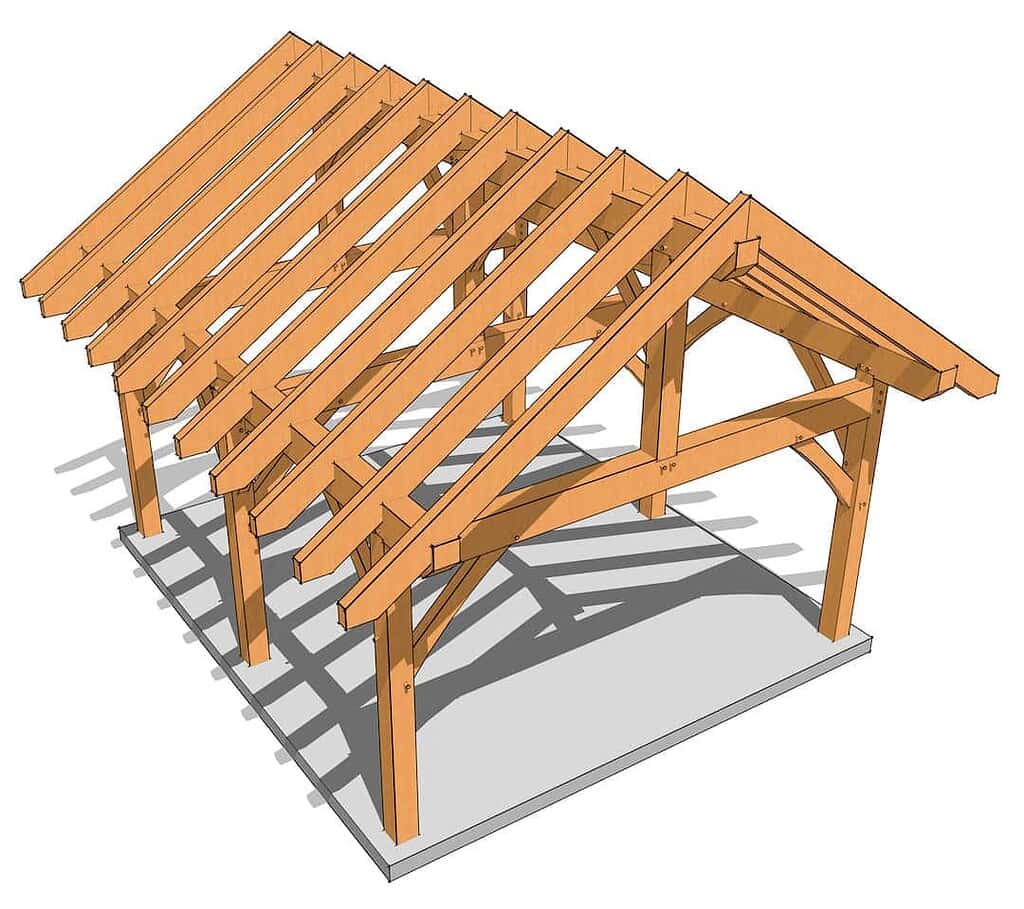

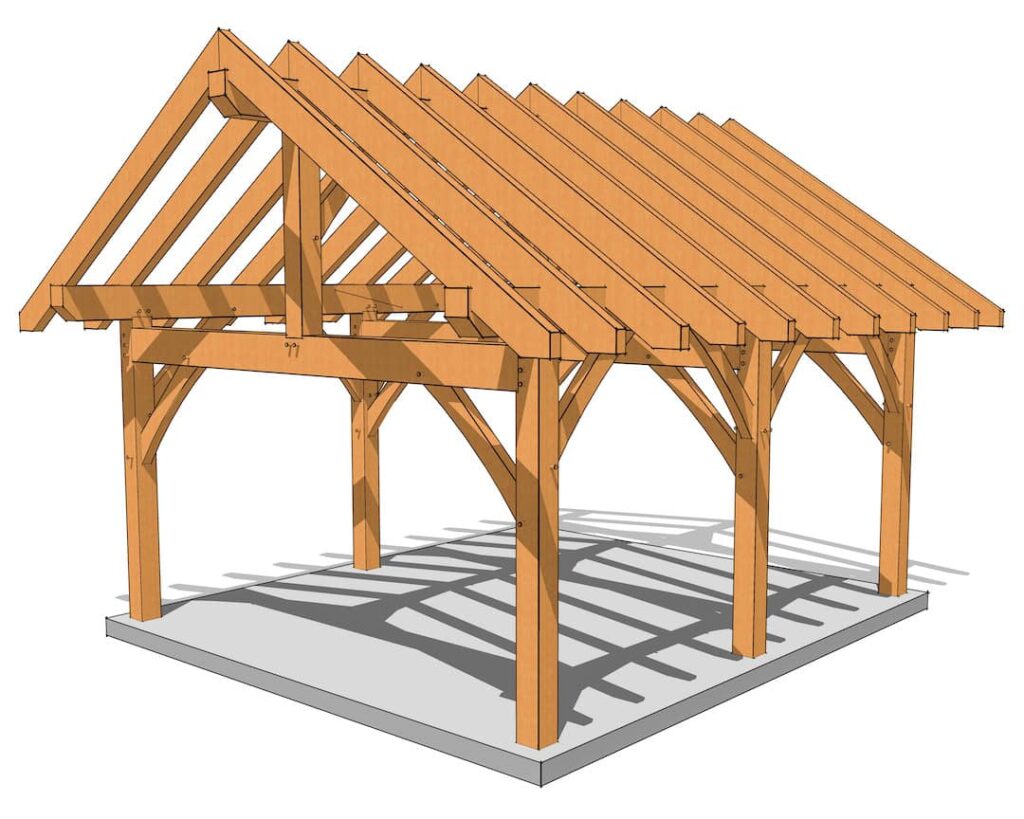

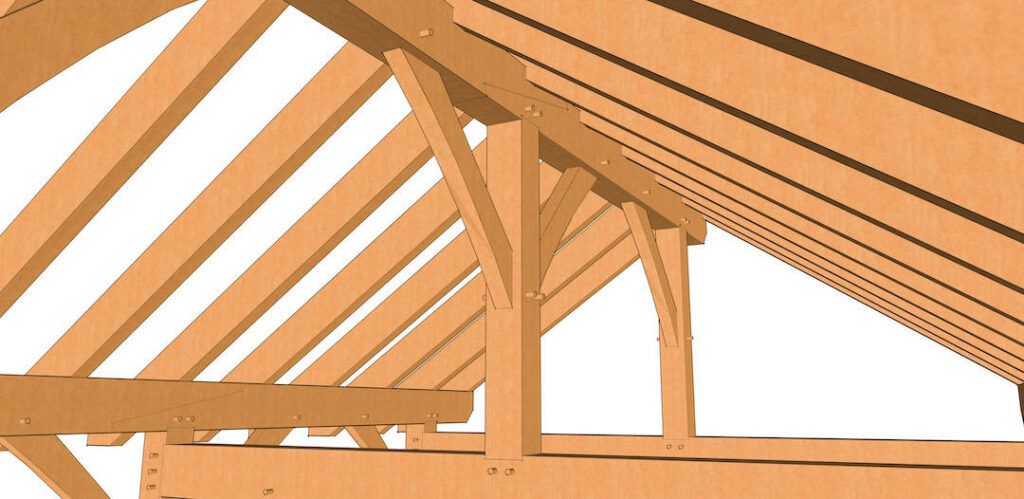

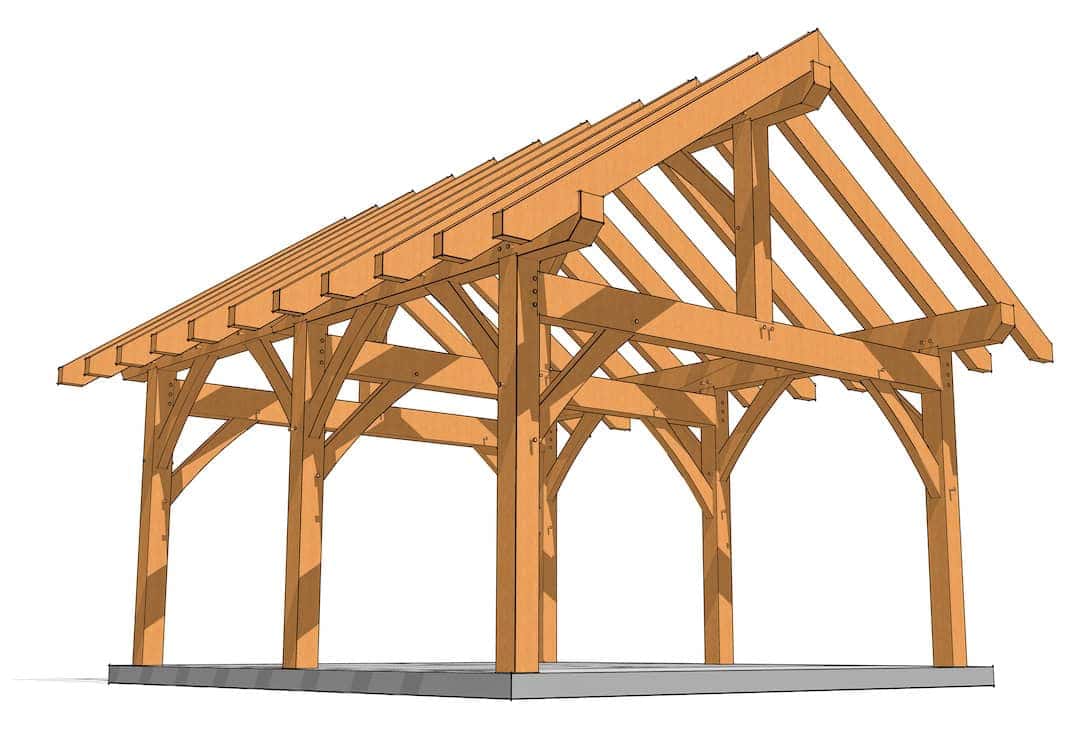

The 16x18 King Post Pavilion offers a perfect balance of manageable size, open space, and classic timber frame elegance. Whether you envision an outdoor living space, a room addition, or a multi-purpose pavilion, this frame combines versatility with architectural beauty.
Frame Highlights:
- Footprint: 16' x 18' (288 sq ft)
- Ceiling Volume:
- Plate height at 9' 10"
- Peak height just over 15.5 feet (with standard 8:12 pitch)
- Roof Pitch Options: Customize your frame with pitch variations from 3:12 to 12:12
- Overhangs: Generous 24-inch overhangs for weather protection and visual weight
- Framing Details:
- Two-bay design with plentiful knee braces

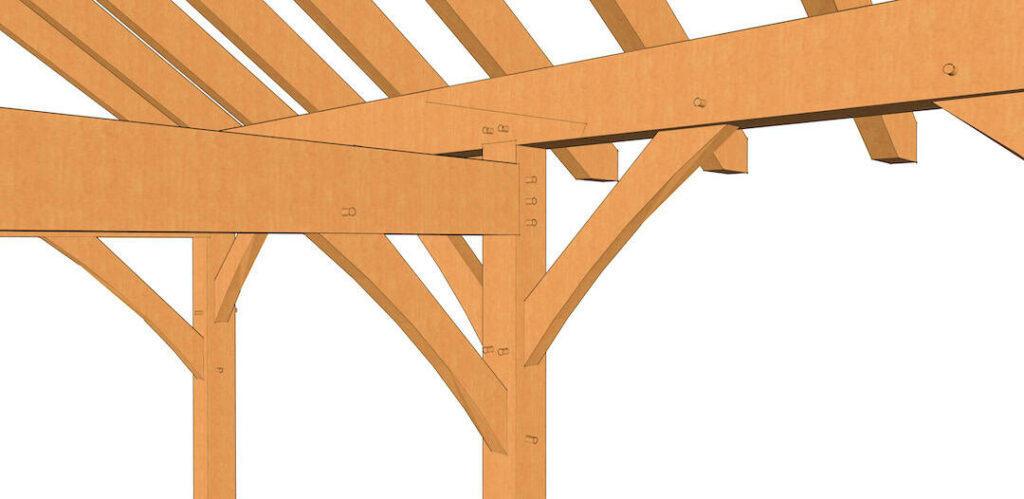

- Scarf joints on the ridge and plates for those who want to showcase advanced framing skills
- Optional post and beam layout using metal connectors for a simpler build approach
Endless Possibilities:
- Outdoor Living Pavilion
- Covered Patio or Room Addition
- Workshop or Studio
- Backyard Retreat or Entertaining Space
Whether you leave the structure open to enjoy the outdoors or enclose it for year-round use, the design provides flexibility to meet your needs.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise™ Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
Looking for a Pavillion plan. Would like the size to be either 12 or 14 feet wide and 16 feet long. I would also like the roof pitch to be no greater than 8-12 and the eave hight at 9 foot.
Daniel, check out our 12×16 Timber Frame
Hello, do you have metric scale in the project? I’m from europe and wanted to buy one, but I’m not sure if it is metric inside despite the inches etc. Thanks
Our plans are available in SAE measurements only. Converting a plan to metric actually involves a complete re-design in order to ensure accuracy. That could be in the neighborhood of 5-10 hours at $127.00 design fee. Our custom design services are here:https://timberframehq.com/custom-design/
There are conversion sites online, however, such as this one: https://www.thecalculatorsite.com/conversions/common/meters-to-feet-inches.php
Another solution that some folks have been successful with, is to purchase an SAE tape measure to do the job.
