Whether you're just starting your timber frame journey or looking to add a beautiful focal point to your outdoor space, the 10x10 King Post Timber Frame Pavilion delivers charm, flexibility, and traditional artistry—all within a space-conscious footprint.
Designed with 6x6 posts and smaller-scale timbers, this structure is perfect for first-time builders and light enough for a small team to raise with ease.
Design Highlights:
- Footprint: 10'x10'—ideal for patios, backyards, or garden corners
- Use Ideas: Outdoor dining, hot tub enclosure, garden seating, or even a greenhouse
- Ceiling Height: Generous 12:12 roof pitch creates dramatic vertical space
- Overhangs: Two-foot overhangs on all sides for shade and protection

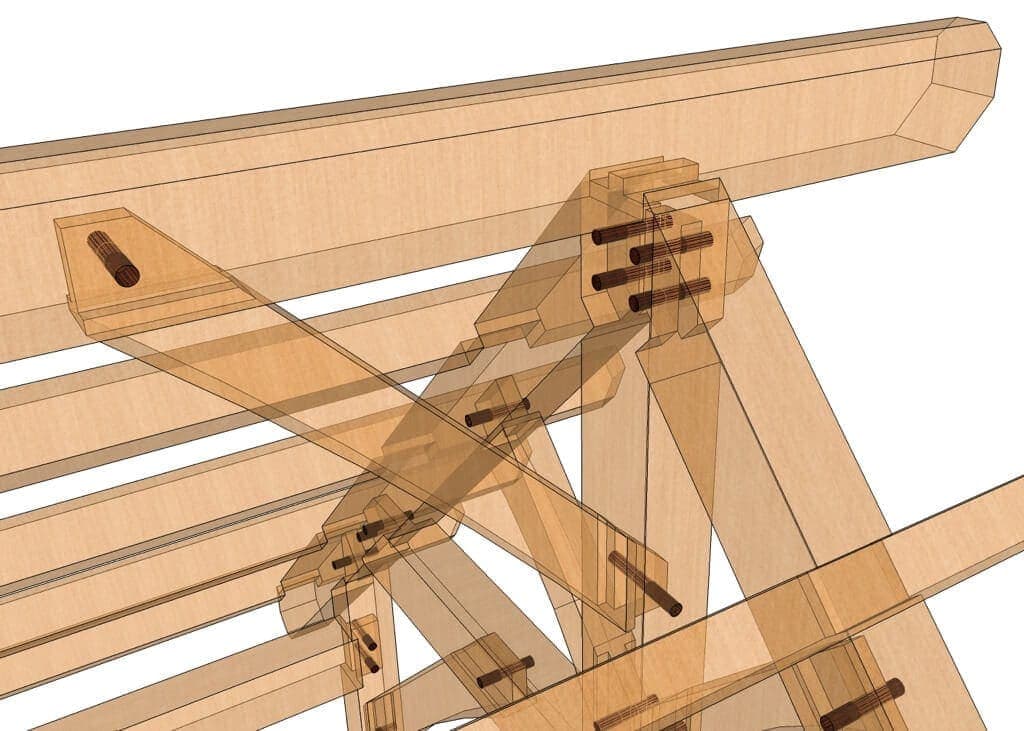

- Joinery: Mortise and tenon construction adds a handcrafted feel to the finished frame
Leave it open to embrace outdoor living, or enclose it to suit your needs. Add shingles for a sheltering roof, clear panels for a light-filled greenhouse, or siding for a cozy backyard workshop. This compact frame adapts effortlessly to your vision.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
Hello , on the 10 x 10 timber frame King post truss plans will it have full scale drawings of the knee brace with the tenon?
Thanks Daniel
Daniel the plans have scaled piece drawings of all timbers including the knee braces.
Can this be made to 14’ wide and 12’ Long
Can this be made to 14’ wide and 12’ Deep
Will you provide me with the timbers necessary (dimension, length, and quantity) to build this project?
James, we just provide the plans but we can help you find the timbers, where do you live?
Are the timbers true 6 x 6 or 5 & 3/4?
5.5×5.5 everything is a 1/2″ under just like a 2×4.
Hi, can i get a parts list on this for a cost estimate if you can.
Could you make this really small? I’m looking for something like this for a garden arbor- 4’ x 4’?
Would that be something you could easy adjust for- this will be my first solo timber frame. I took a week long workshop and am eager to do my own!
I would like to make this in 10×12. Can I still use 6×6 timber?
Yes, should not be a problem.
Can the height of the structure be increased without increasing timber sizes? If so by how much?
The easiest way is to increase the length of the post. While this will increase the length of the timbers it will be minimal.
What is the overall height of this pavilion?
It stands 14′-7″ to the roof peak.
Are there plans available in this design as a 12′ x 12′ structure?
We offer this 12×12 Timber Frame which is a simpler design. We can expand this plan to a 12×12 through our custom design services.
