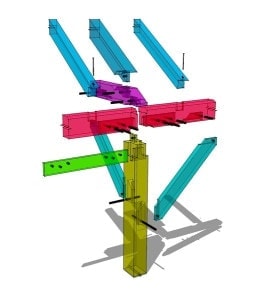

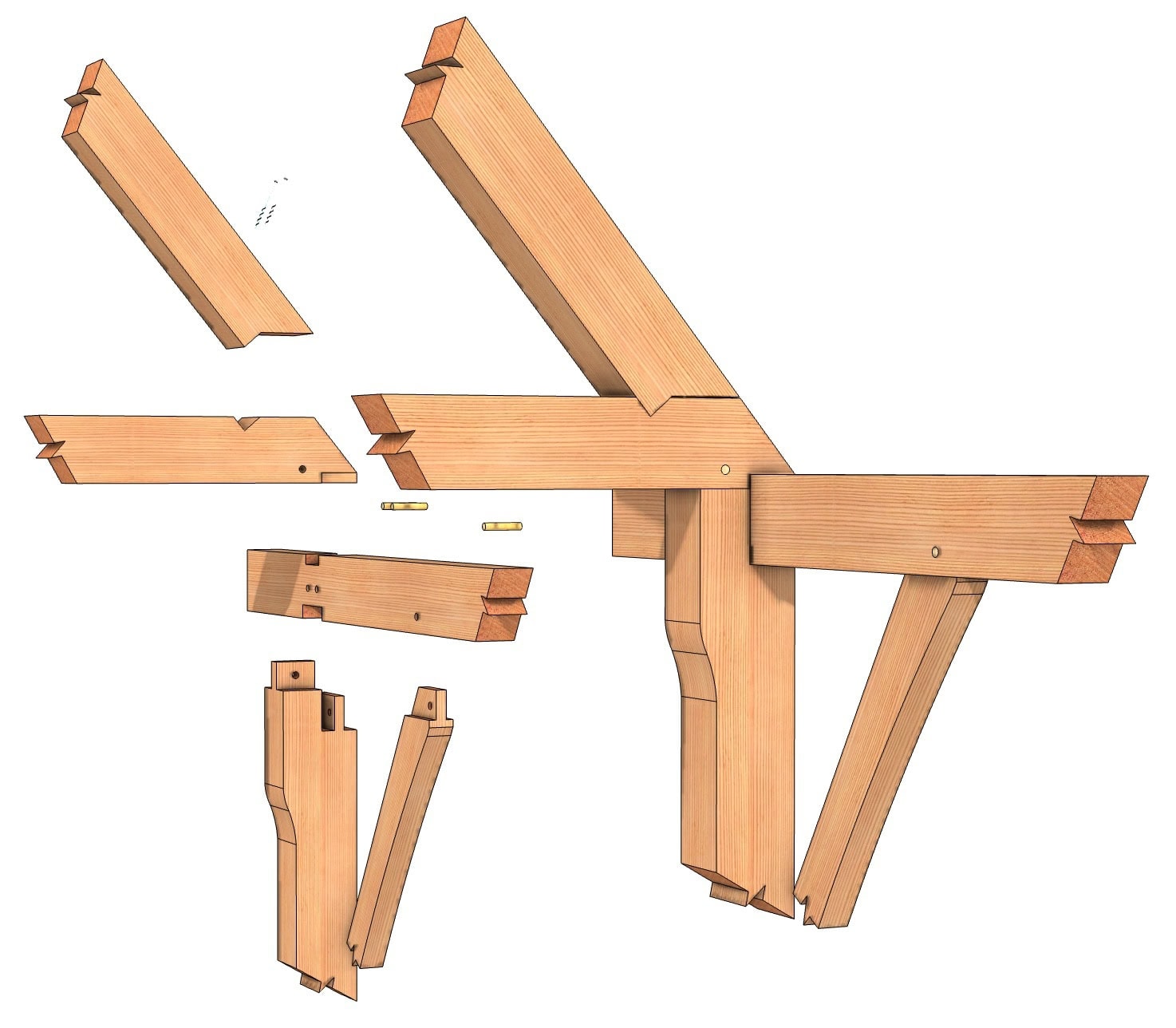

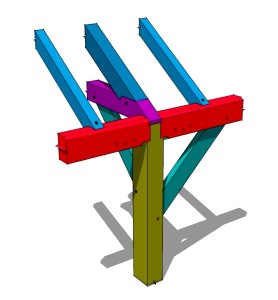

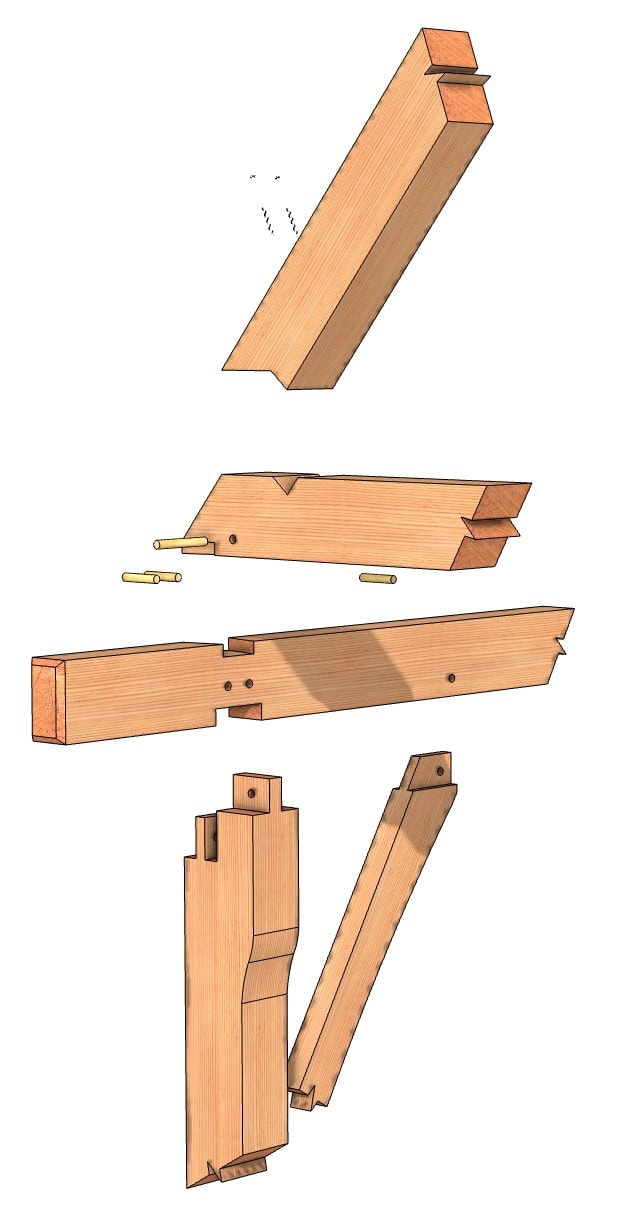

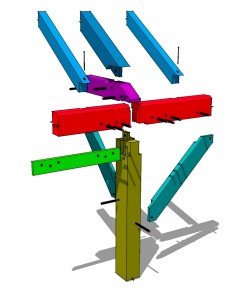

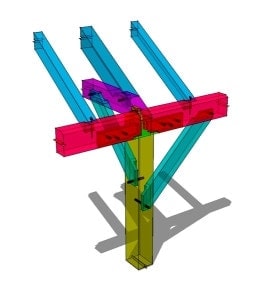

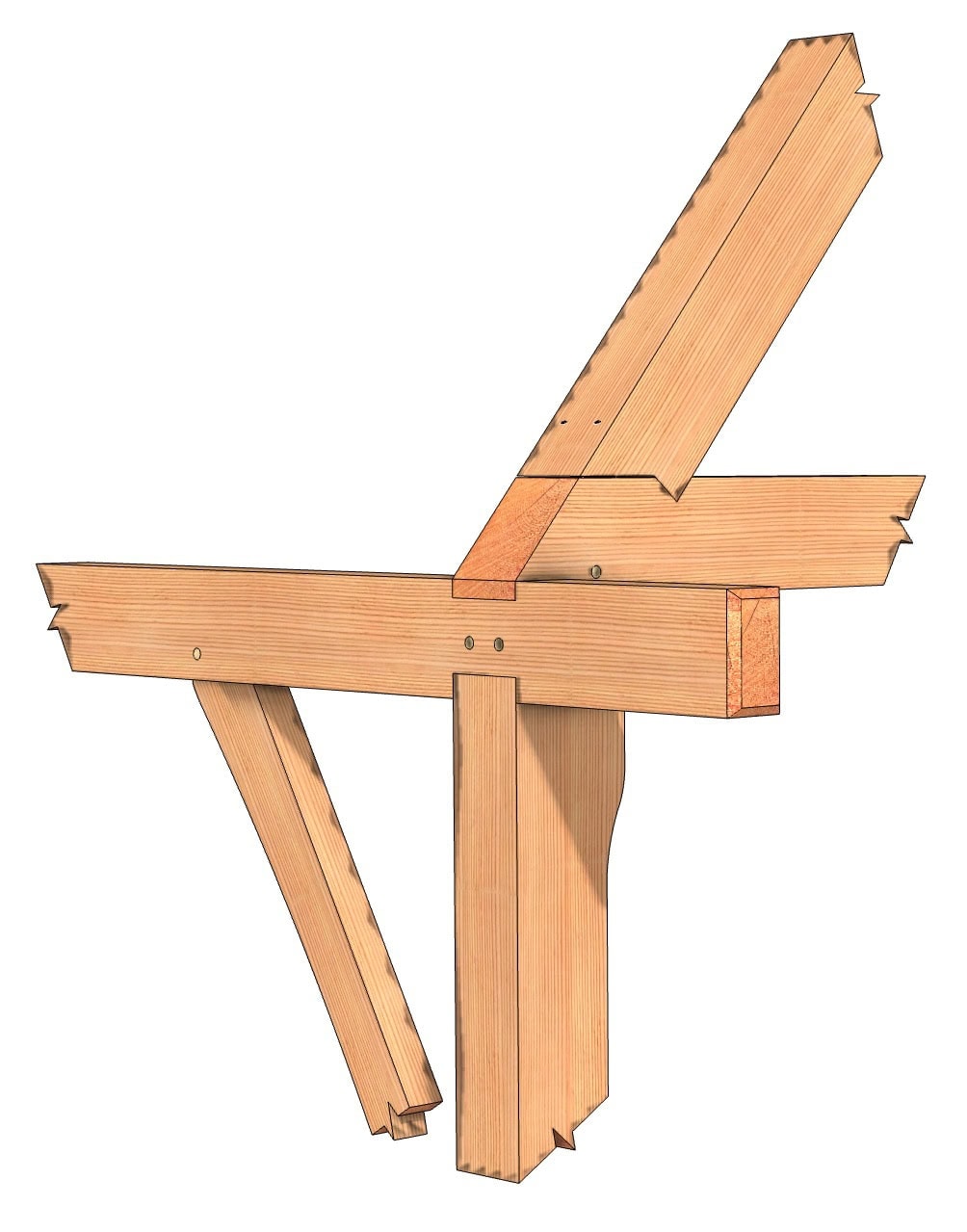

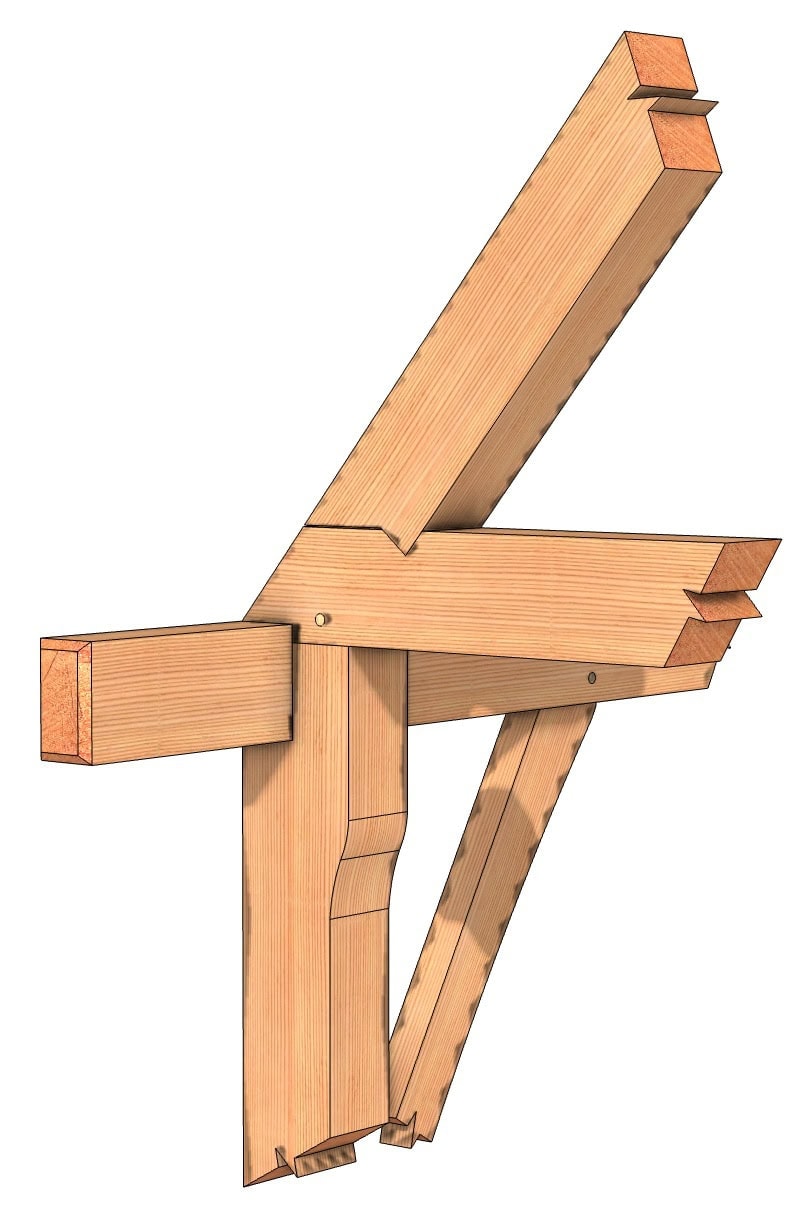

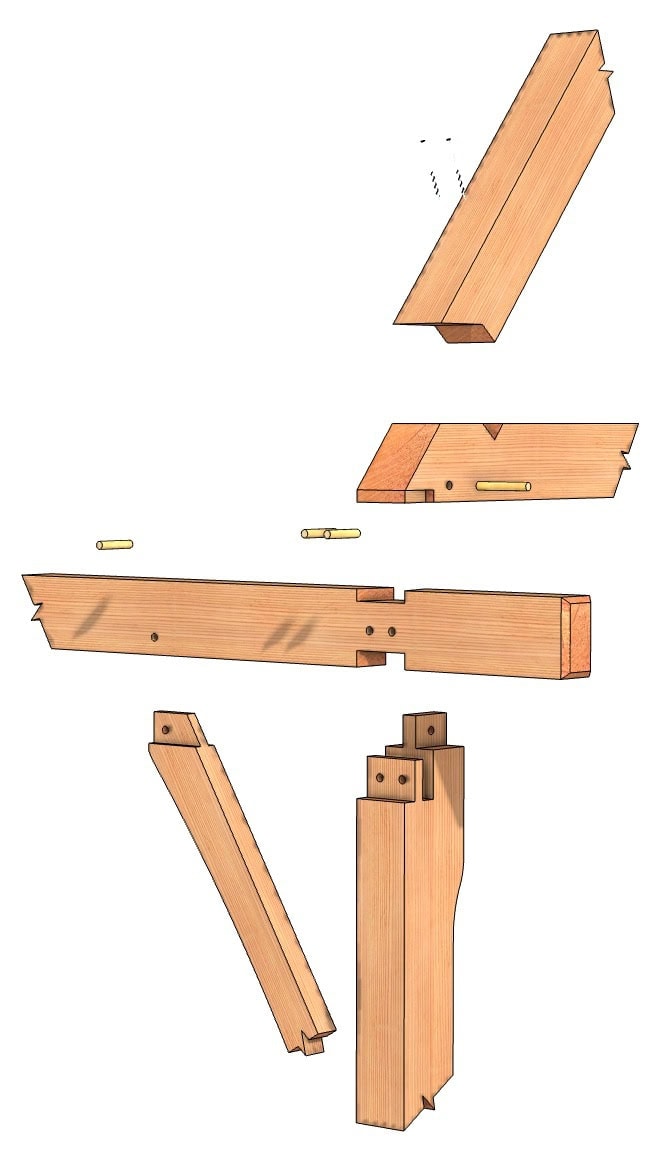

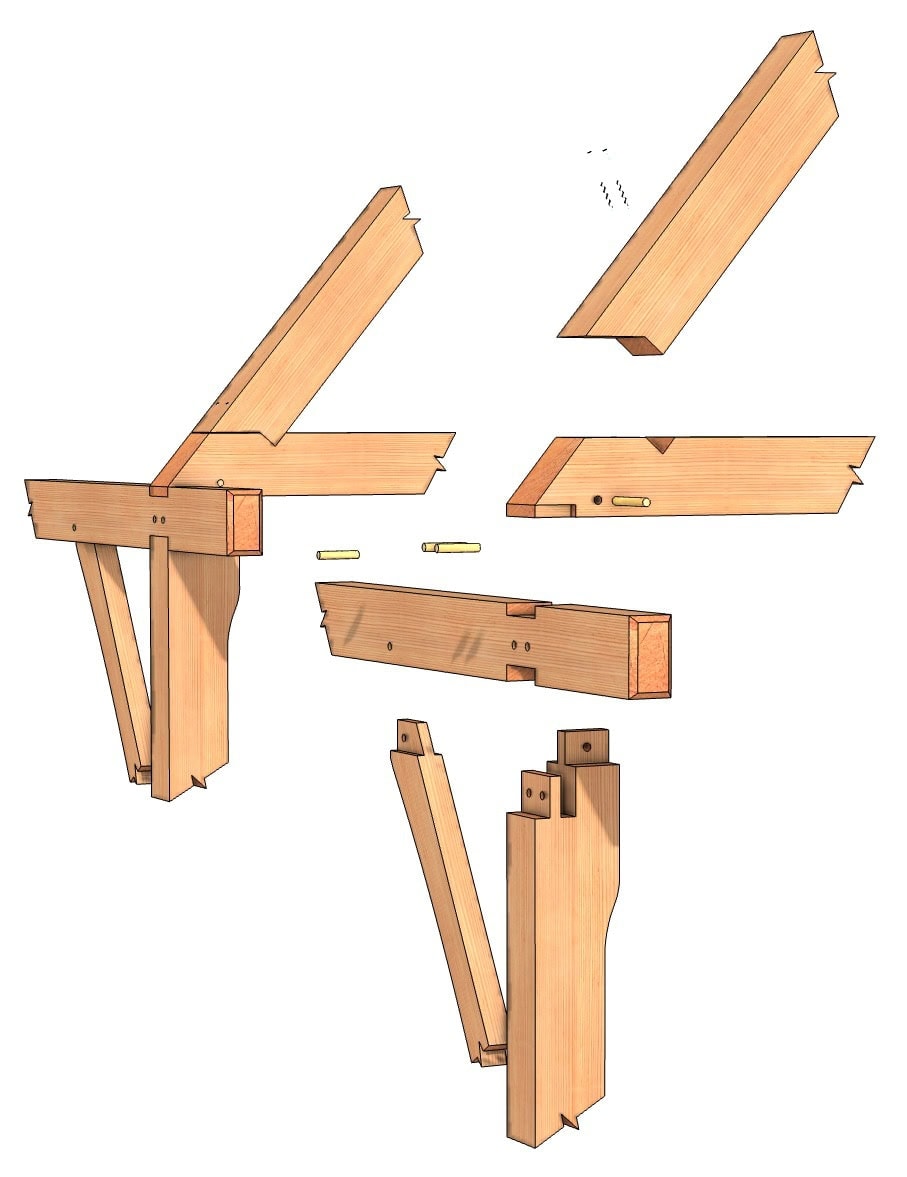

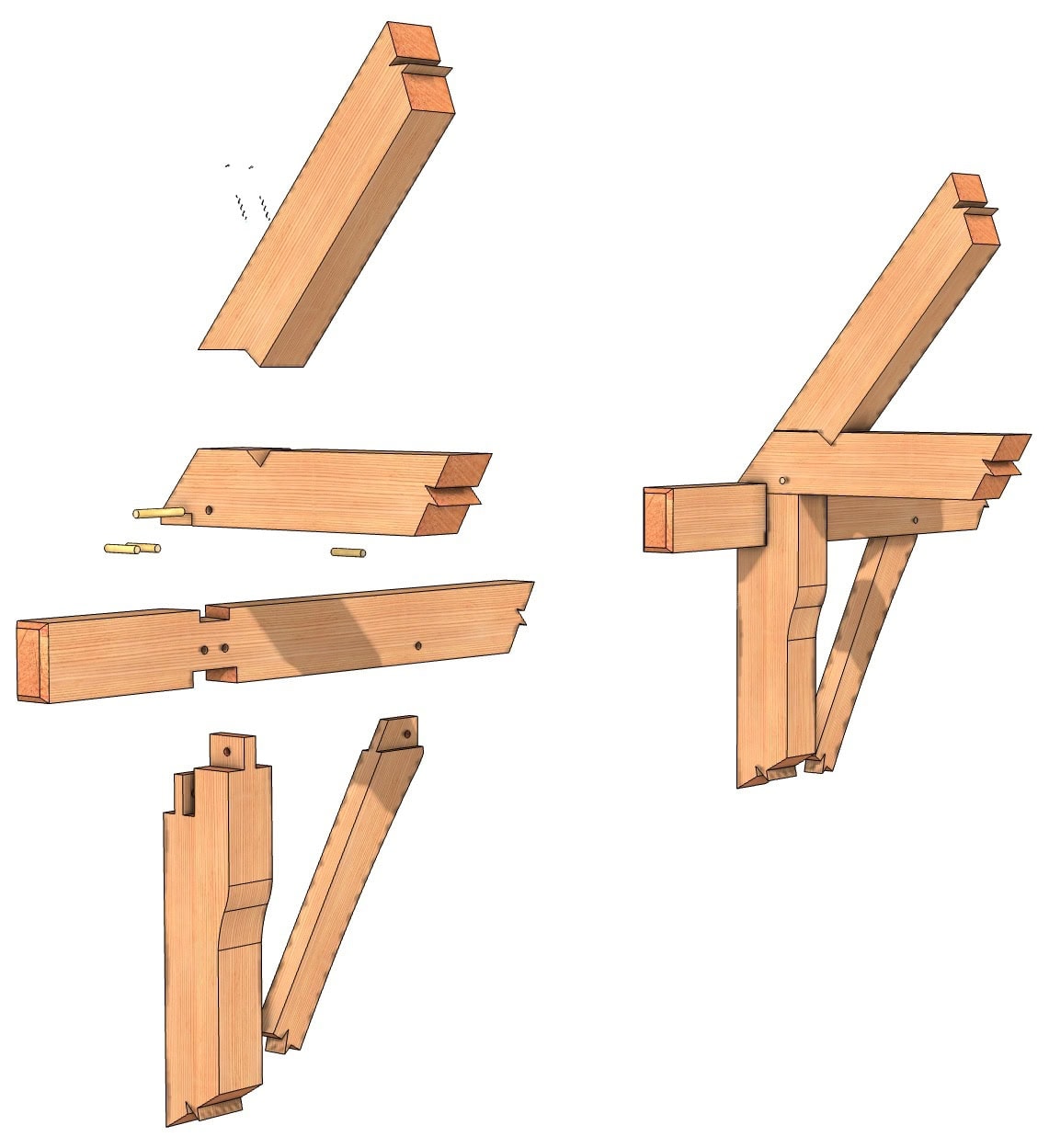

Modified English Tying Joint

English tying joints are a hallmark of historic British timber framing, serving as crucial connections that bind a building’s primary structural members. Found in medieval barns, churches, and manor houses, the joints use carefully fitted mortise-and-tenon (and occasionally dovetail) connections to unite tie beams, rafters, posts, and plates. Their primary function is to prevent roofs from spreading outward under the weight of heavy or expansive roofing materials such as thatch, clay tiles, or slate.

A key element of English tying joints is the tie beam, which spans across the building and absorbs the thrust of the roof load. Principal rafters are mortised or tenoned into the tie beam at precise angles so that the roof’s weight transfers effectively down into the posts or walls. Many posts were “jowled,” flaring at the top to provide additional cross-sectional timber for stronger mortise-and-tenon connections. This flare not only creates more space for the joint but also helps the post withstand twisting or splitting stresses.

The structural integrity of these joints stems from their meticulous craftsmanship. Historically, carpenters relied on hand tools such as broad axes, adzes, chisels, and augers to cut and shape tight-fitting mortise-and-tenon joints. Wooden pegs (treenails) or wedges were typically driven in to “draw” the connections tight, minimizing any gaps that could allow movement over time. Diagonal braces and collar ties might also be incorporated, further stiffening the framework against lateral or twisting forces.

Across England, there were subtle regional variations in tying joint design, driven by differences in local timber species and prevailing construction traditions. Over the centuries, some regions adopted more pronounced jowls on posts or refined lap joint details. In comparing English tying joints to French counterparts, the methods are broadly similar in function—both seek to control roof thrust and maintain structural integrity—yet the precise styles and interlocking details can differ.

In terms of preservation and restoration, English tying joints stand out for their longevity, with many historic structures still standing after hundreds of years. When these joints do suffer from rot or insect damage, specialists often repair them using traditional “scarfing” or “dutchman” patches to replace only the compromised section of the timber. Purists prefer retaining as much original material as possible, though discreet steel or resin reinforcements may sometimes be introduced if a joint has lost too much capacity.

In modern timber framing, companies replicate the look and strength of English tying joints using power tools or CNC machinery. Despite advancements in construction methods, these historical connections remain valued for both their visual charm and their proven ability to resist structural stresses. By studying and preserving English tying joints, craftsmen, conservationists, and historians alike keep alive the centuries-old knowledge that has allowed timber buildings to endure through time. These joints are a testament to the ingenuity, skill, and practicality that characterize traditional English carpentry.

Tie Beam to Plate Tying Joint

Leave a Comment

Your email address will not be published. Required fields are marked *

2 thoughts on “Modified English Tying Joint”

  1. I like this joint because it allows the tie beam to sit higher than the plate beams; I need maximum height clearance at the gable ends for my structure. Is there a link that shows how the corner posts would be joined with the corresponding tie beam and plate beam?
