16×24 Hammer Beam Pavilion

16x24 Hammer Beam Plan Left Front

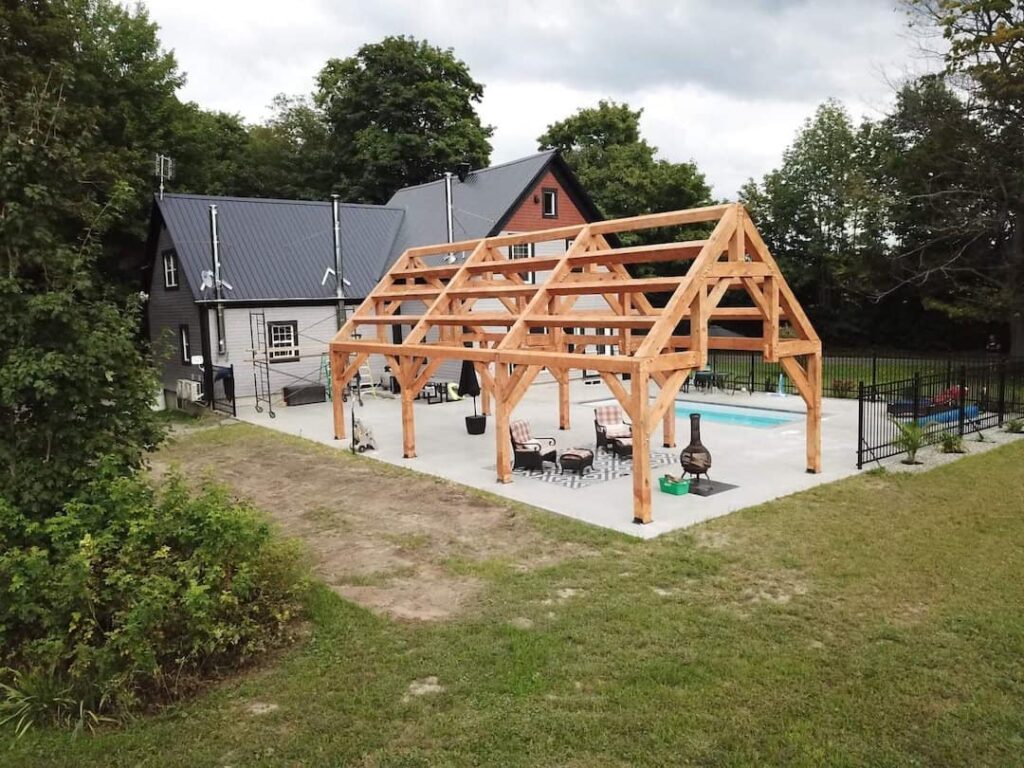

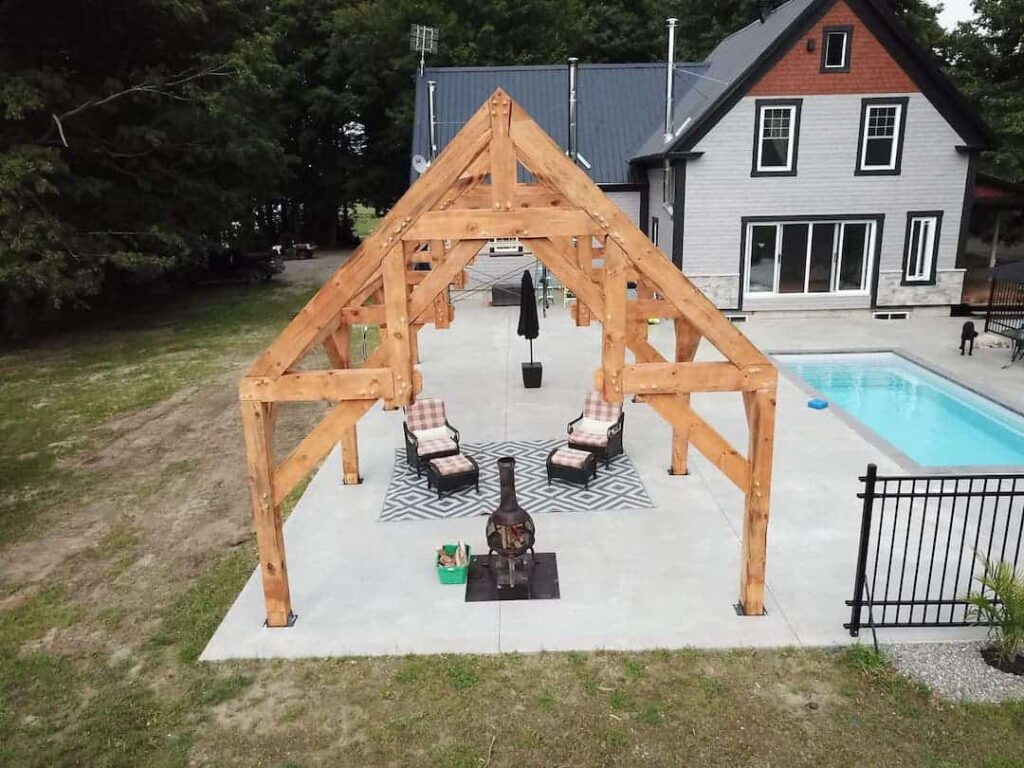

Take a look at this gorgeous 16×24 hammer beam pavilion! Two bays create a beautiful repetition in the sculptural trusses of this structure. Though a bit more complex to cut and raise than a frame with common trusses, the result is beautiful. You will want to create this frame for a special space, such as a great room addition to your home or a free-standing carport. With a steep 12-in-12 pitch to the roof, the ridge soars to 16 feet tall!

Enclose this frame as you wish – with 385 square feet, this timber frame would make a great camping cabin, a generous picnic pavilion, or even a cozy and dramatic backyard guest house. The possibilities are endless for the ways to enjoy this artistic frame!

The drawings consist of 35 pages of renderings, including X-ray drawings, so you can fully understand the joinery. There are timber and fastener schedules to make your materials purchasing easy. We also include plan, elevation, and sectional drawings, along with all the piece and joinery details you will need to build this timber frame. The plan set is formatted in instantly-downloadable PDF for 8 ½” x 11’ paper, easily printed from home.

Plan Guarantee

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Leave a Comment

Your email address will not be published. Required fields are marked *

20 thoughts on “16×24 Hammer Beam Pavilion”

  1. Hi, do your plans include drawings to complete the roof such as purlins and common rafters. Please elaborate. Thank you

  2. Yes, each similar piece is drawn out giving you all the dimensions you need to cut the frame. In this case, it is a purlin based roof system.

  3. It seems the typical hammer beam has a 12/12 roof, how much does the geometry change if it is reduced to an 8/12 roof? Still remaining 24′ wide.

  4. I think you would take too much wood out of the timbers as designed with the mortise and tenon joints. Think you would need to use metal connectors to make it work. We can make those adjustments and get an engineer to take a look at it.

  5. The plans we offer on our website have all been reviewed by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads, and values needed are just some of the factors engineers need to take into account in each case.

    We do offer engineering services as an add-on to our standard plans. We can offer these services in all states except Illinois and Hawaii. We can also serve the Canadian Provinces of AB, BC, ON, SK, AND YT. If this is something you are interested in, head over to https://timberframehq.com/custom-design/project-information-form/ and fill out the brief questionnaire.

  6. Can this be built as a 16’x24′ with three bays, adding one bent and also increasing the overall peak height from 16′ to 24′?

  7. We do take on custom projects and would like to talk to you further about yours. Check out our page, HERE, describing what we offer and the process of our custom design services.

    Fill out the design questionnaire so we can understand your needs. That’s the best way to communicate with our team and get an estimate for design services.

  8. Can the 16X24 Hammer Beam Pavilion be stretched to a 60ft length? Cost of plans? Is a kit available?

  9. You could definitely make this frame 16×60. Please go here and fill out the questionnaire to get an estimate for custom design services. And yo can go to our kit page and fill out that questionnaire to get in touch with our team and get pricing on a kit with the joinery pre-cut.

  10. The Q&A and reply by KATRINA WILLIAMS
    JULY 27, 2021 AT 10:54 AM indicates that this model also comes in a 24×24 Hammer Truss Timber Frame… however the link does not take you to a 24×24 Hanger Truss Timber Frame. Is there a 24×24 version? If not, can this plan be ordered in a 24×24 or 20×24?
