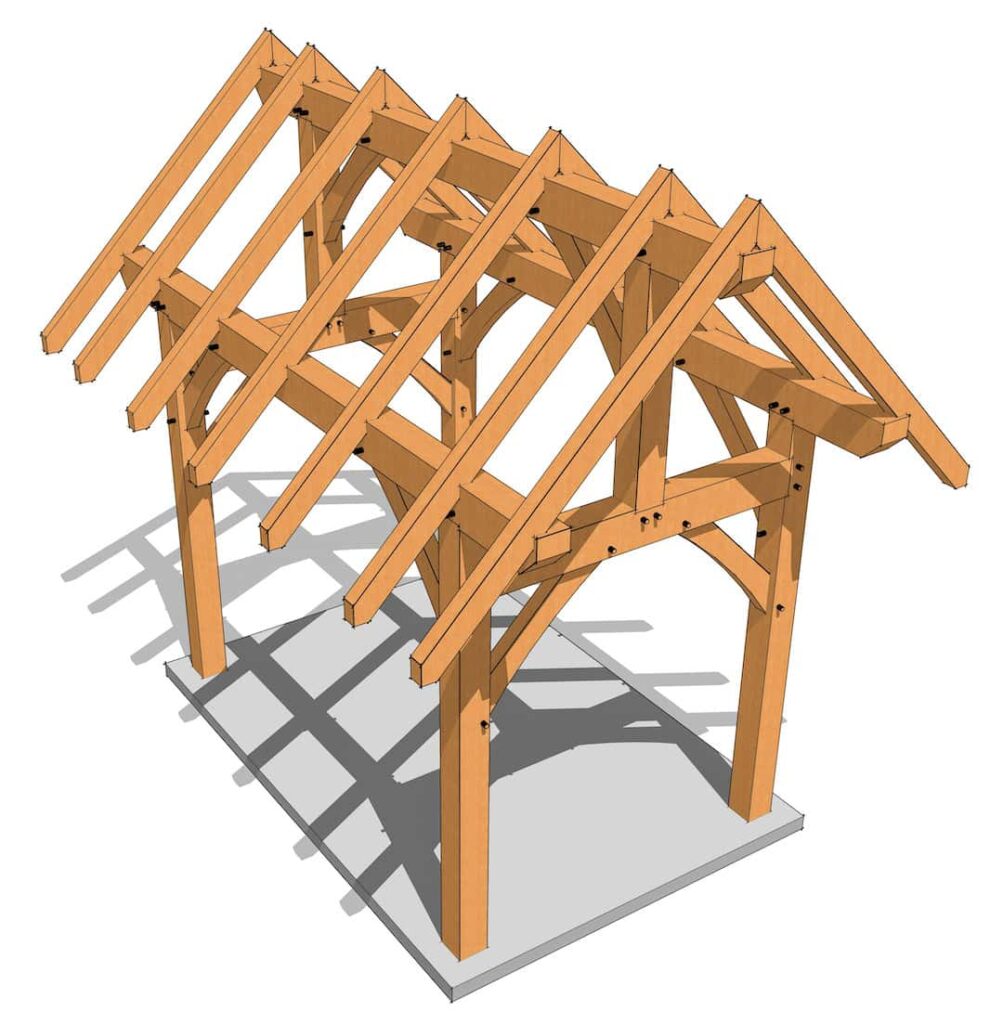

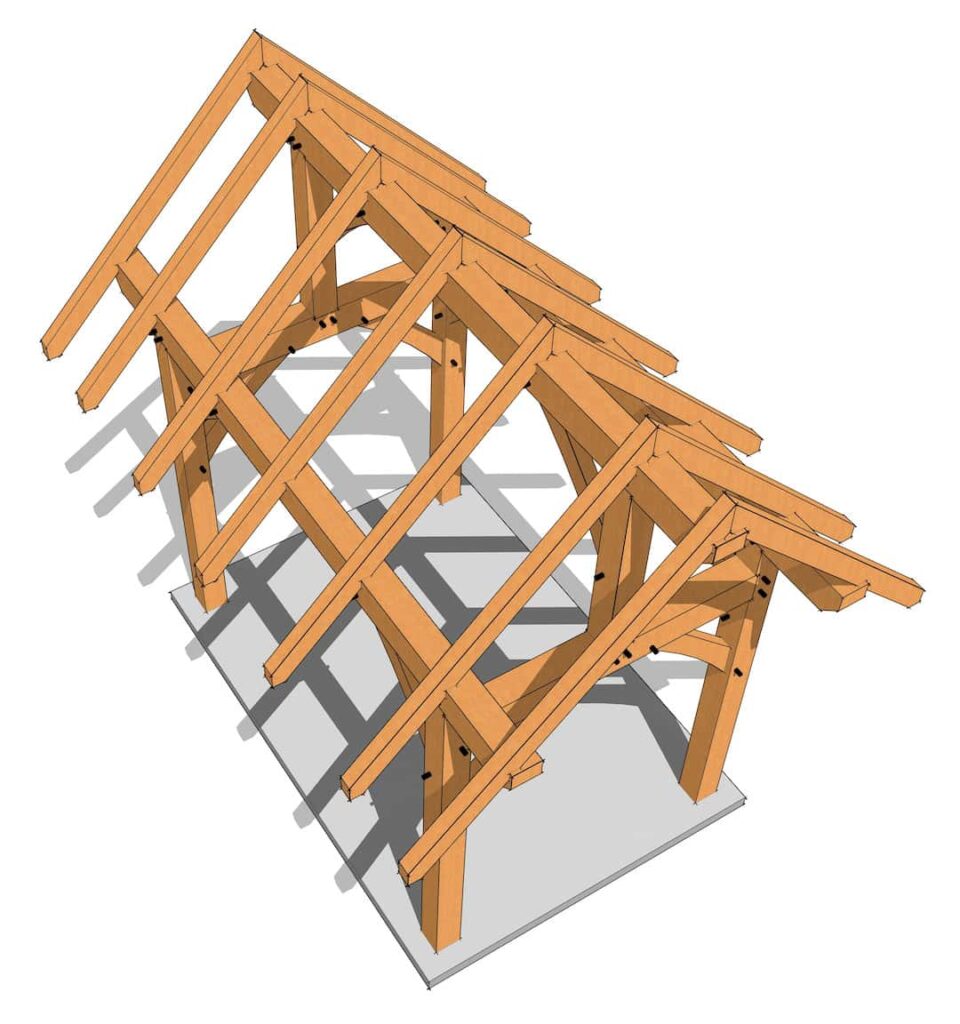

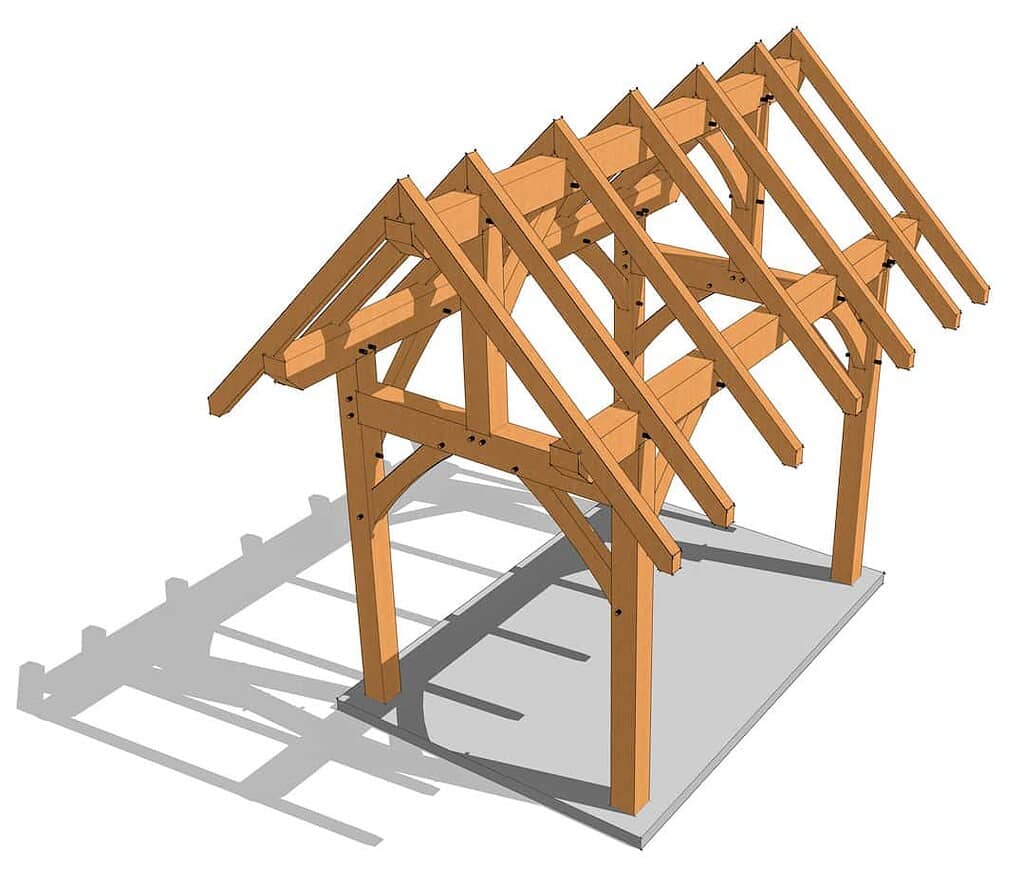

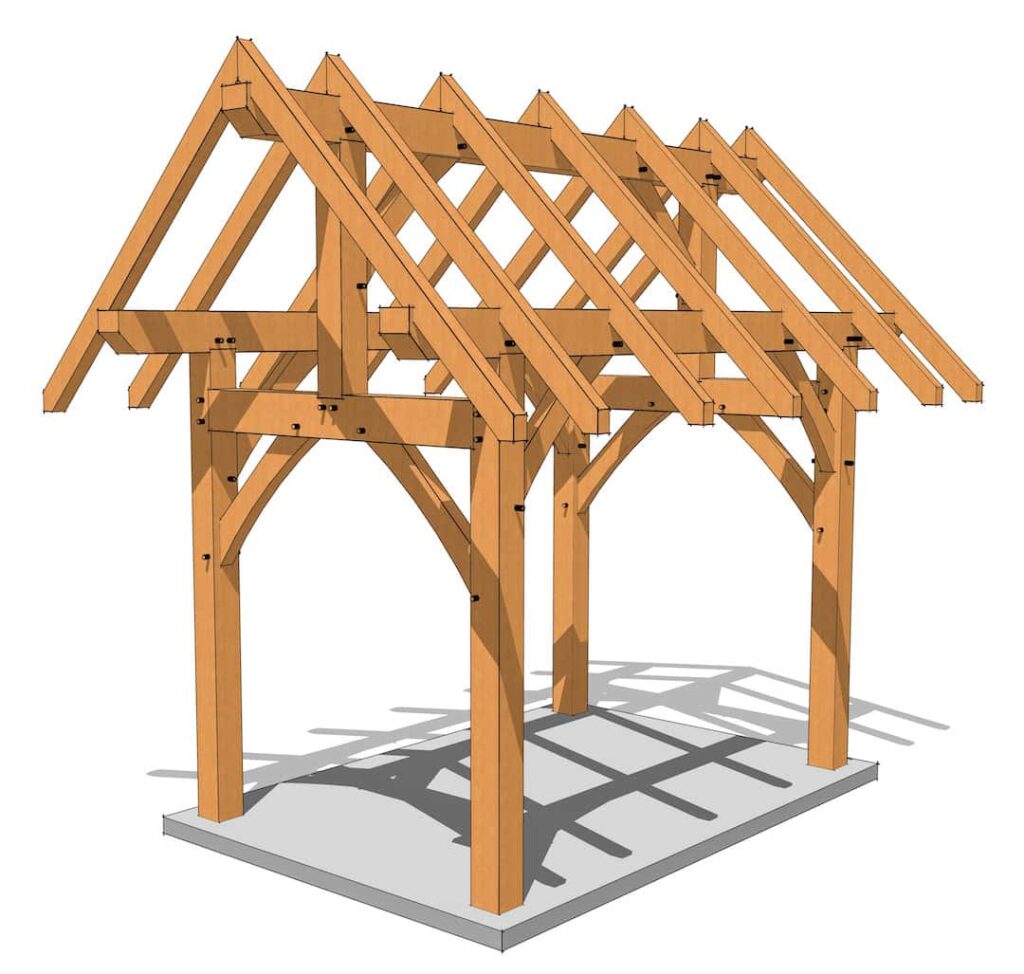

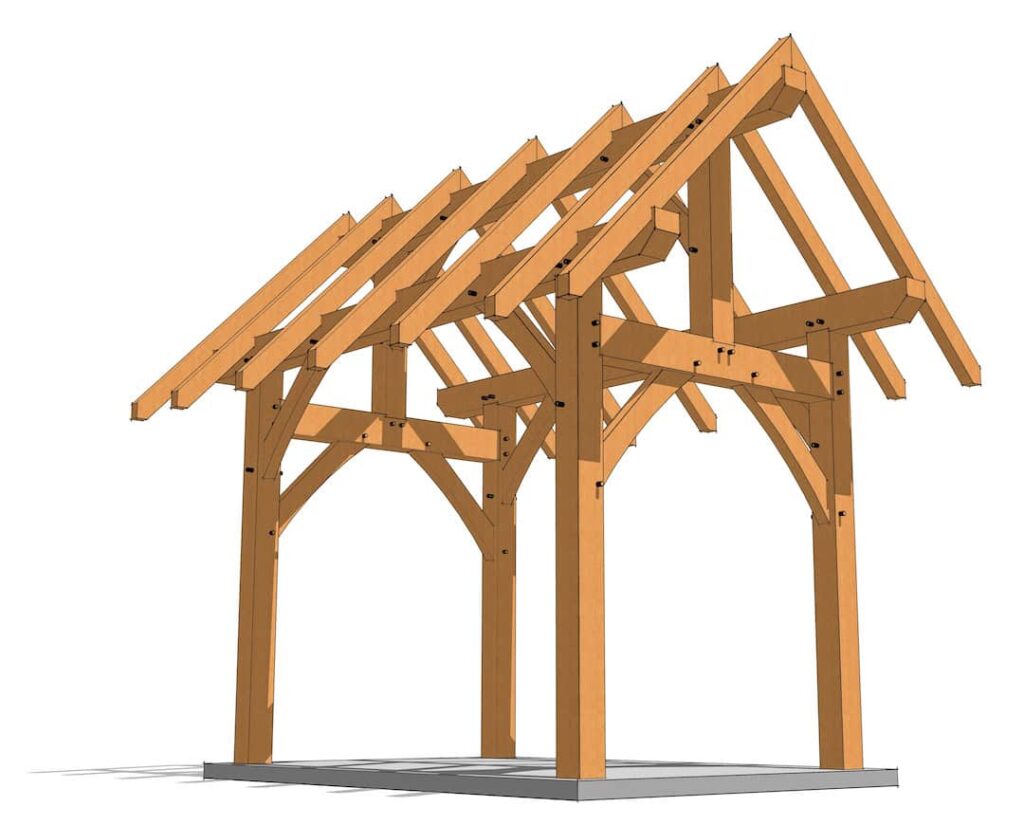

The 8x12 King Post Timber Frame is the perfect starter project for those new to timber framing—or anyone looking to add a small, beautiful, and functional structure to their property. With its simple design and manageable size, this frame fits almost any backyard while offering timeless craftsmanship and flexibility.
Frame Highlights:
- Footprint: 8' x 12' (96 sq ft)
- Roof Pitch: 12:12 with generous 2-foot overhangs for added protection and visual impact
- Structural Details:
- 8x8 posts for durability and strength

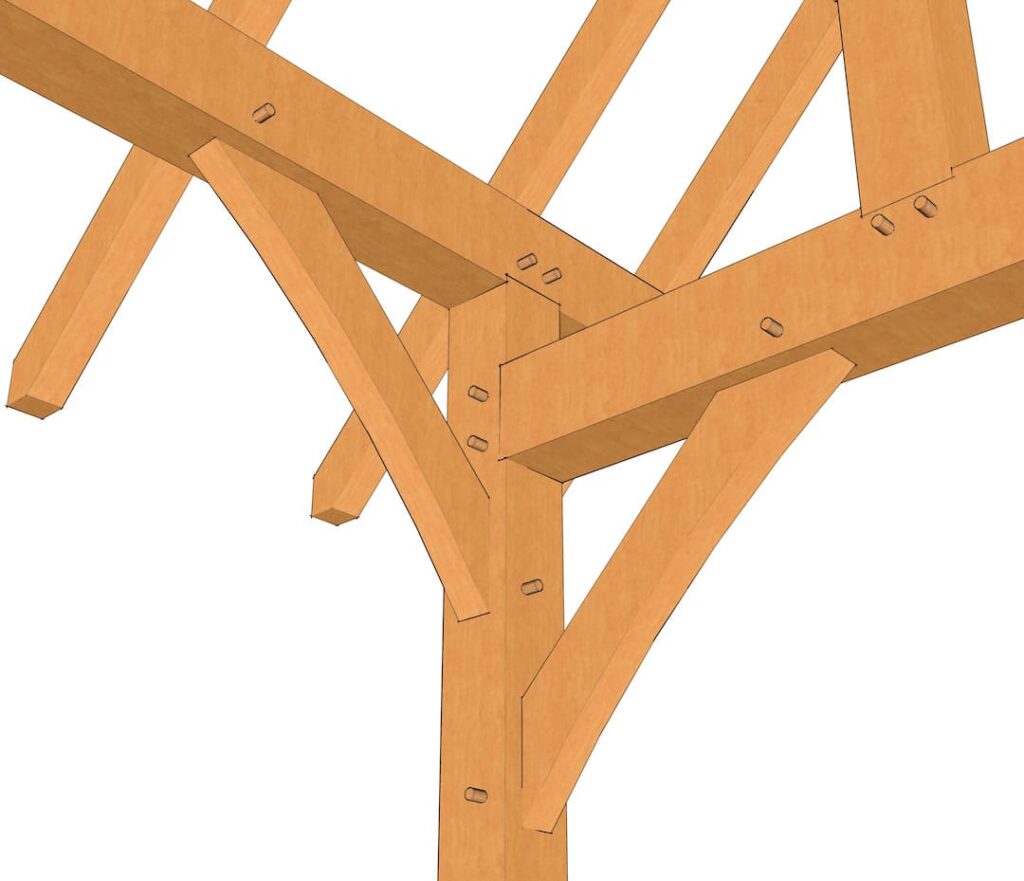

- King post truss with gracefully curved knee braces

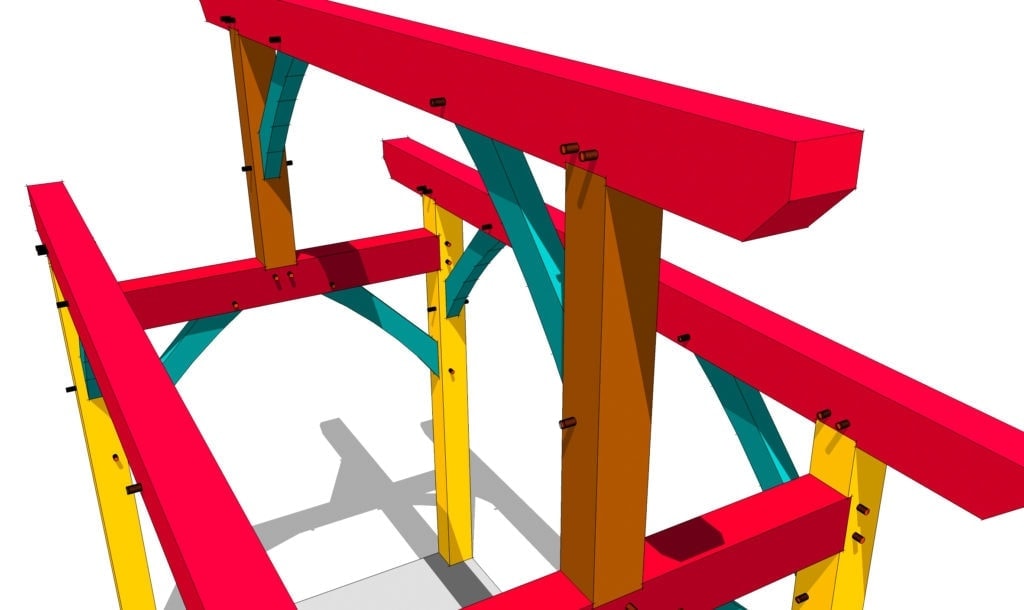

- Two-bay design (only two bents for ease of cutting and raising)
Flexible Uses:
- Tool or Potting Shed
- Children’s Playhouse
- Compact Workshop or Studio
- Backyard Retreat or Storage Shed
Add windows, siding, or leave parts open to customize the structure for your specific needs.
Buy This Plan
This plan provides detailed, easy-to-follow blueprints, perfect for anyone building their own timber frame.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise Kit. Just need your zip code.
View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
I like to see Post and Beam To Sill Plate add in 8’x 12′ Plans?
How tall is it at the highest point? Need to know for HOA authorization
As drawn with the plate height remaining the same, it is 14’6-11/16″. You can lower the plate height a little, let us know if you need a lower roof pitch to get by.
Couple more questions: 1) could the plan be modified so the 4 posts are placed on an 8′ x 8′ square? If so, approximately what would the roof dimensions be (H x W); and 2) how high would it be from the ground to the first horizontal beam/joist? I have limited space (garden home/patio). Thank you!
I like to add Roof cover , Front Porch, Deck Floor add 4′ more ? with 8’x12′ Shed to-gether?
Is this a timber framed plan? I’m interested in hand cutting the joints- not use the metal plates. Am I correct in that this is a timber frame?
It is a full timber frame with mortise and tenon joinery.
Is this shed 8 feet wide measured at the posts or the rafter ends?
Bill, this measures 8×12 from outside to outside of the posts
I would like to purchase this plan with addition of a “dormer” in the center of the roof on one side, as you did on model “three gable pavillion”. Also need an approximate finished weight. I intend to mount this structure to a flat bed trailer. Length can be adjusted to accommodate dormer dimensions.
We do take on custom projects – check out our page, HERE, describing what we offer and the process of our custom design services.
Fill out the design questionnaire so we can understand your needs. That’s the best way to communicate with our team and get an estimate for design services.
The plans include cut sheets for each timber, correct? Also, I’d like to build this as a 9′ X 12′ structure. Do you have plans that would work for that size?
The plans do include piece drawings for every timber. We do not have any 9x plans but we could help you with that through our Custom Design services.
