Collar Beam Timber Detail

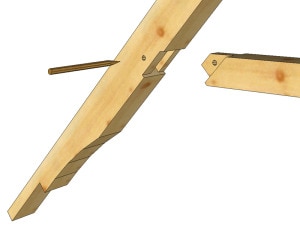

Collar BeamThis timber detail exploded view is of a collar beam which is a 4×4 connecting to a 4×6 rafter.
The pitch is 12/12, and the tenon is set off the reference face 1 1/2″ and then 1 1/2″ thick, with a 3/4″ hardwood peg.

, , , , ,
